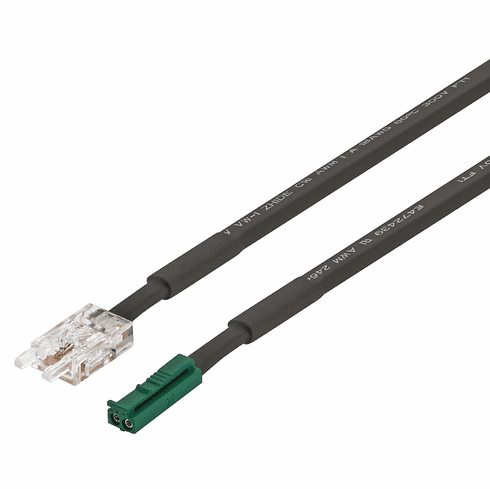

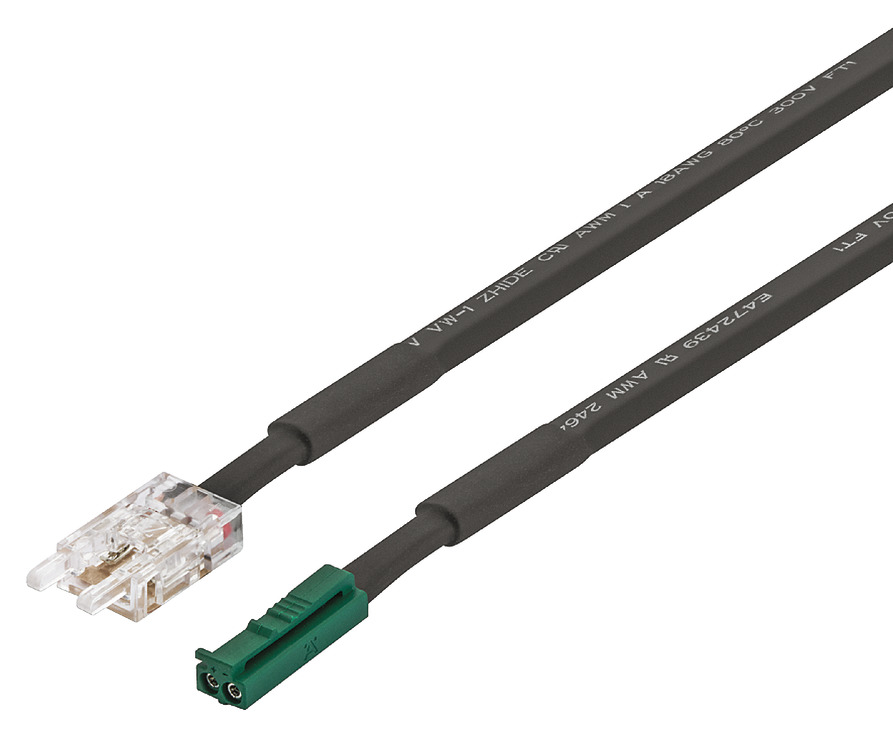

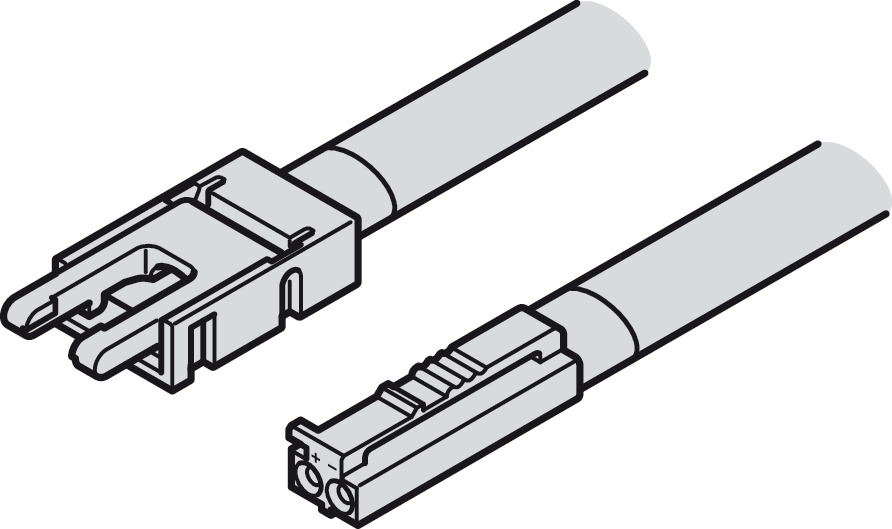

Hafele 833.75.762 Loox5 lead ribbon for COB LED Strip, 24V, 0.1m

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.762

  Product Title: Lead, For Häfele Loox5 Led Strip Light 24 V, 8 Mm, Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology), 5 A, 18 AWG, 100 mm

  Category: Lead, For Häfele Loox5 Led Strip Light 24 V, 8 Mm, Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology), 5 A, 18 AWG

  Item Details …

  - exclusively for COB

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x plug, Loox5 2-pin 24 V

  - Connections : 1 x Clip, Loox5 LED strip light 8 mm monochrome

  - Nominal voltage : 24.00 V

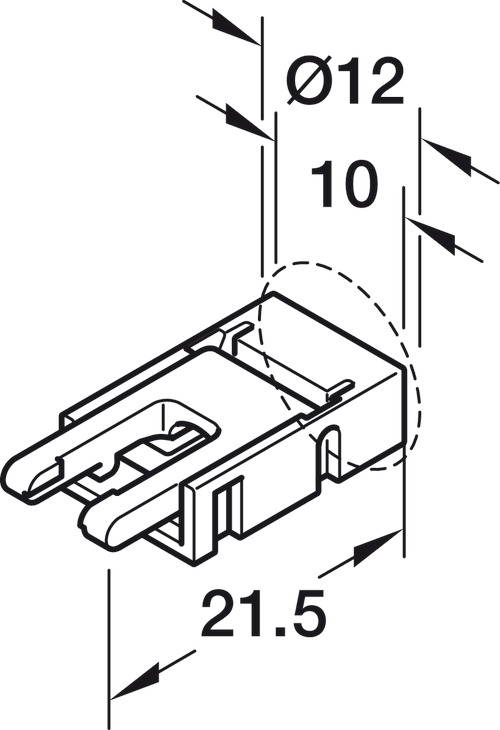

  - Clip width : 10.00 mm

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Material : Plastic

  - Number of leads : 2.00

  - Plug drill hole Ø : 8.00 mm

  - Clip drill hole Ø : 12.00 mm

  - Suitable for : Loox5 monochrome COB, 8 mm

  - Supplied with:

  - 1 lead plug/clip

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Hafele_Lighting_2024|Page 117

  Hafele_Lighting_2024|Page 155

  Hafele_Lighting_2024|Page 271



• Required Products & Optional Accessories

  Optional Accessories:



  • Adapter, Loox5 device – Loox driver
