Manufacturer: Hafele
Item: 833.75.934

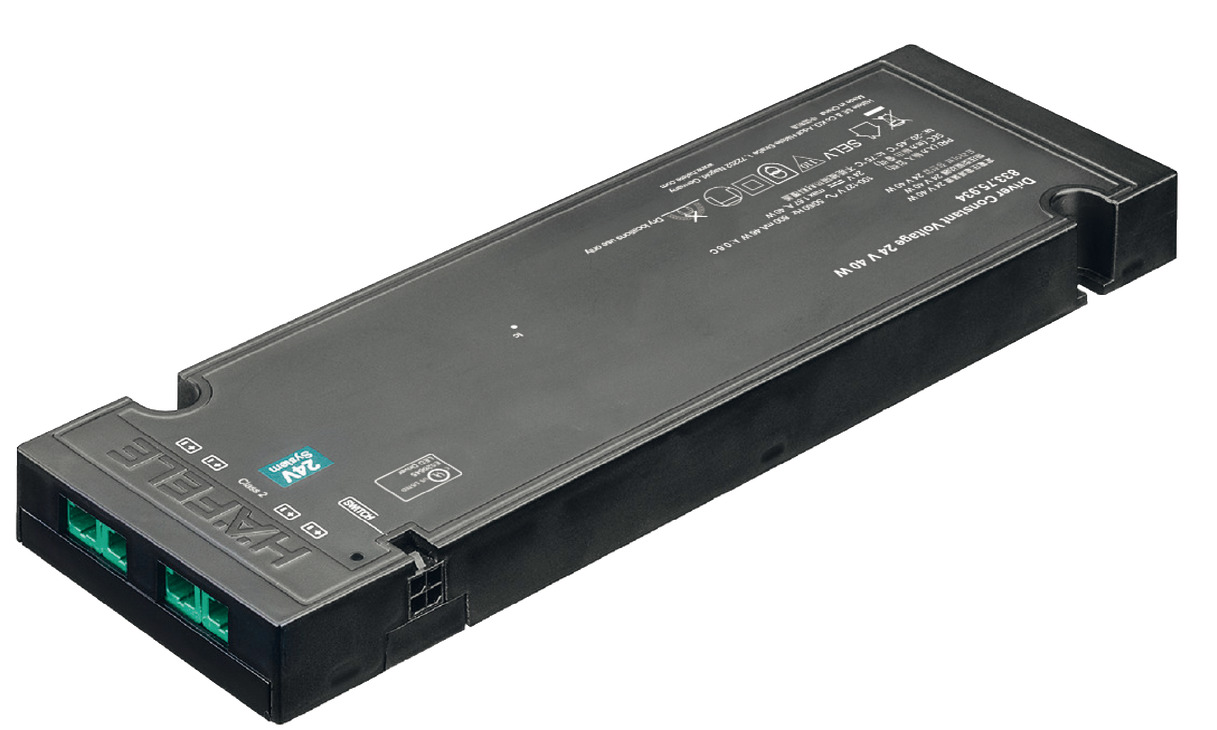

Product Title: Driver, Häfele Loox5 24 V, With switching function for 1 switch , 40 W, 40 W, 110-127 V AC: typical mains voltage for e.g. US, JP, TW
Category: Driver, Häfele Loox5 24 V, With switching function
Item Details …
- Four Loox5 output ports
- Switch port
- Mains voltage : 100?–?127 V
- Mains frequency : 50?–?60 Hz
- With switching function : Yes
- Ambient temperature : -25–45 °C
- Number of switch connections : 1.00
- Height (inch) : 5/8"
- Output voltage : DC
- Area of application : Ideal for smaller installations
- Version : 4-Port Series
- Material : Plastic
- Color/finish : Black
- Connected output ports : 4 x sockets, Loox5 2-pin 24 V
- Control input ports : 1 x socket, Loox switch
- Life time : 30,000 hours
- Installation : for glue fixing, With screws
- Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location.
- Order reference
- Please order extension leads separately.
- Supplied with:
- 1 driver with mounting accessories
- 1 US power cord
Additional Information …
For applications that require continuous operation, please use Loox5 power supplies with a service life of 50,000 H. Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12 V or 24 V).
