Hafele 833.76.390 LED3060 24 volts, 9.6 watts/meter 2700-5000K,CRI90, 15 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.390

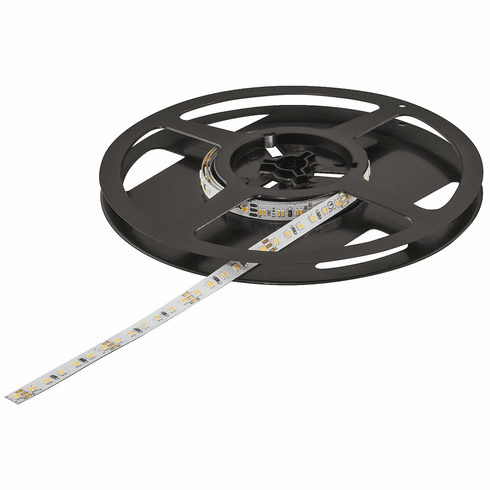

  Product Title: LED strip light, Häfele Loox5 LED 3061 Silicone, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m, Warm white 2700 K to cool white 5000 K, (590 9/16") 15 m

  Category: LED strip light, Häfele Loox5 LED 3061 Silicone, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m

  Item Details …

  - Optimized light mixture

  - Cool white and warm white LEDs in the smallest of spaces

  - Optimal light mixture without flickering

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Luminous flux/m : 825?–?930 lm

  - Luminous efficacy : 86?–?97 lm/W

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Order reference

  - Please order lead separately.

  - Aluminum profile recommended from 9.6 W/m.

  - Please order Häfele Connect Mesh 6-way distributor and Häfele Connect Mesh remote control separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%.Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights.Remote control only via 6-way distributor Häfele Connect Mesh with multi-white adapter and remote control or smartphone.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 3060 / 3061

  Safety Notes for LED Strip Lights

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 151



• Required Products & Optional Accessories

  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light, multi-white, (5/16") 8 mm
  • Clip connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
  • Lead, Häfele Loox5 for LED-Band multi-white (5/16") 8 mm, 24 V, AWG 20
