Hafele 833.76.393 LED3069 COB 24V, 8.0W/m, 4000K, CRI90, 5m

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.393

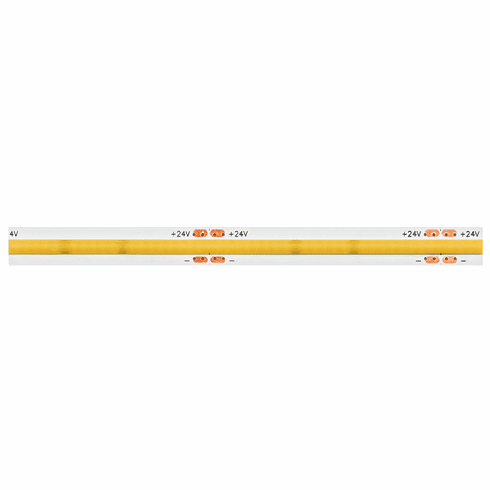

  Product Title: LED strip COB Gold, Häfele Loox5 LED 3069 24 V COB 8 mm 2-pin (monochrome), 480 LEDs/m, 8 W/m, IP20, 480 LEDs/m, 8 W/m, IP20, cool white 4000 K, 5 m, energy efficiency class F

  Category: ,

  Item Details …

  - Homogeneous illumination, no visible LED points

  - Refraction angle of 180°

  - Dimmable : yes

  - Area of application : Indirect illumination of furniture and furnishings, Behind glass edges

  - Version : COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points

  - Material : Plastic

  - Color : White

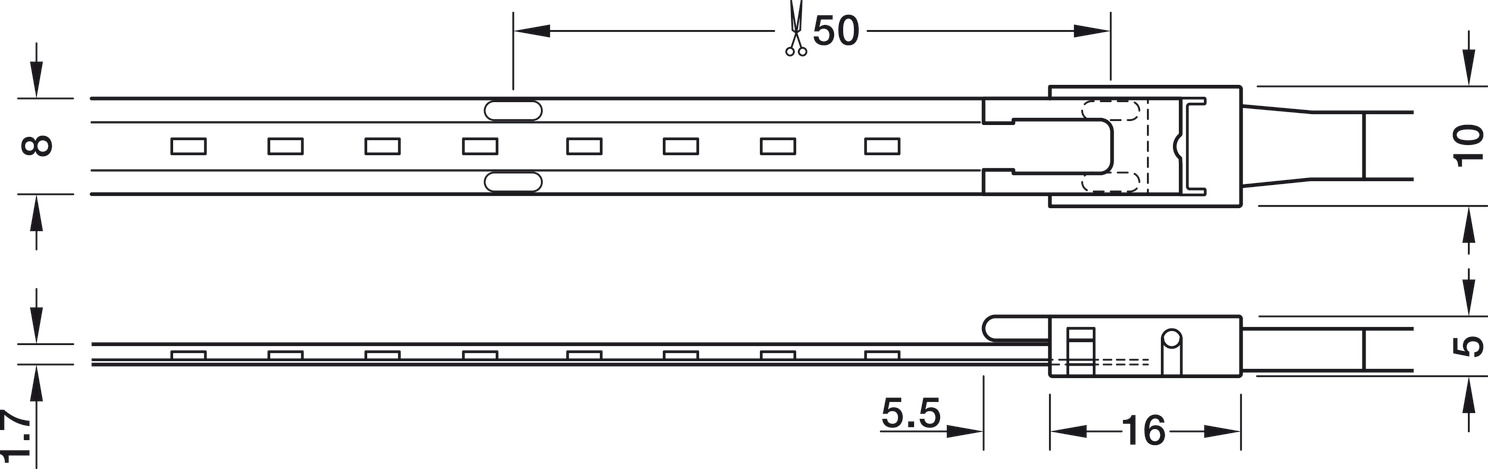

  - Strip width : 8.00 mm

  - Strip height : 1.70 mm

  - Section length : 50.00 mm

  - Contact surface length : 5.00 mm

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately. Aluminum profile is recommended from 9.6 W/ m.

  - Supplied with:

  - ---1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30 %. Please note: A strip section with a new power supply that follows immediately is noticeably brighter. Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 3069

  Safety Notes for LED Strip Lights

  COB Strip Lighting Sell Sheet EN



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, For Häfele Loox5 Led Strip Light 24 V, 8 Mm, Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology) (choose one):


  • 5 A, 18 AWG, 100 mm 5 A, 18 AWG, 500 mm 5 A, 18 AWG, 2000 mm

    833.75.762 833.75.763 833.75.764

    Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
  • Interconnecting lead, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Clip connector, For Häfele Loox5 Led Strip Light 8 Mm Cob 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
