Hafele 833.77.240 LED3078, 24V, 4.8 watts per meter, 2-wire multi-white, 2700-5000k, 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.240

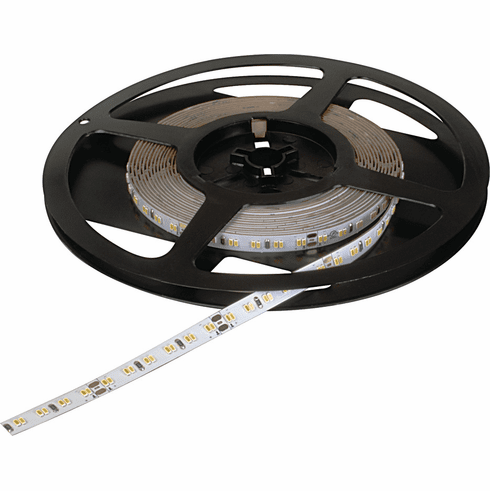

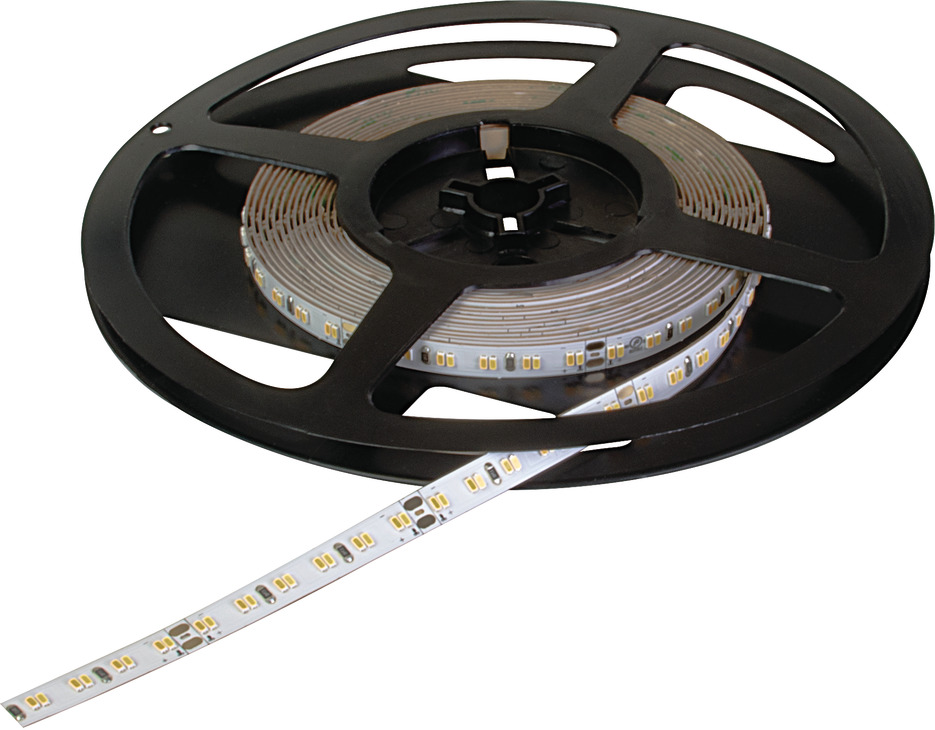

  Product Title: LED strip light, Häfele Loox5 LED 3078, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m, 5 m

  Category: LED strip light, Häfele Loox5 LED 3078, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m

  Item Details …

  - Tunable color temperature (2700K-5000K) without flickering

  - Uses 2-Wire Cables; no adapters needed

  - Color temperature : 2700?–?5,000 K

  - Light color : Multi-white

  - Nominal voltage : 24.00 V

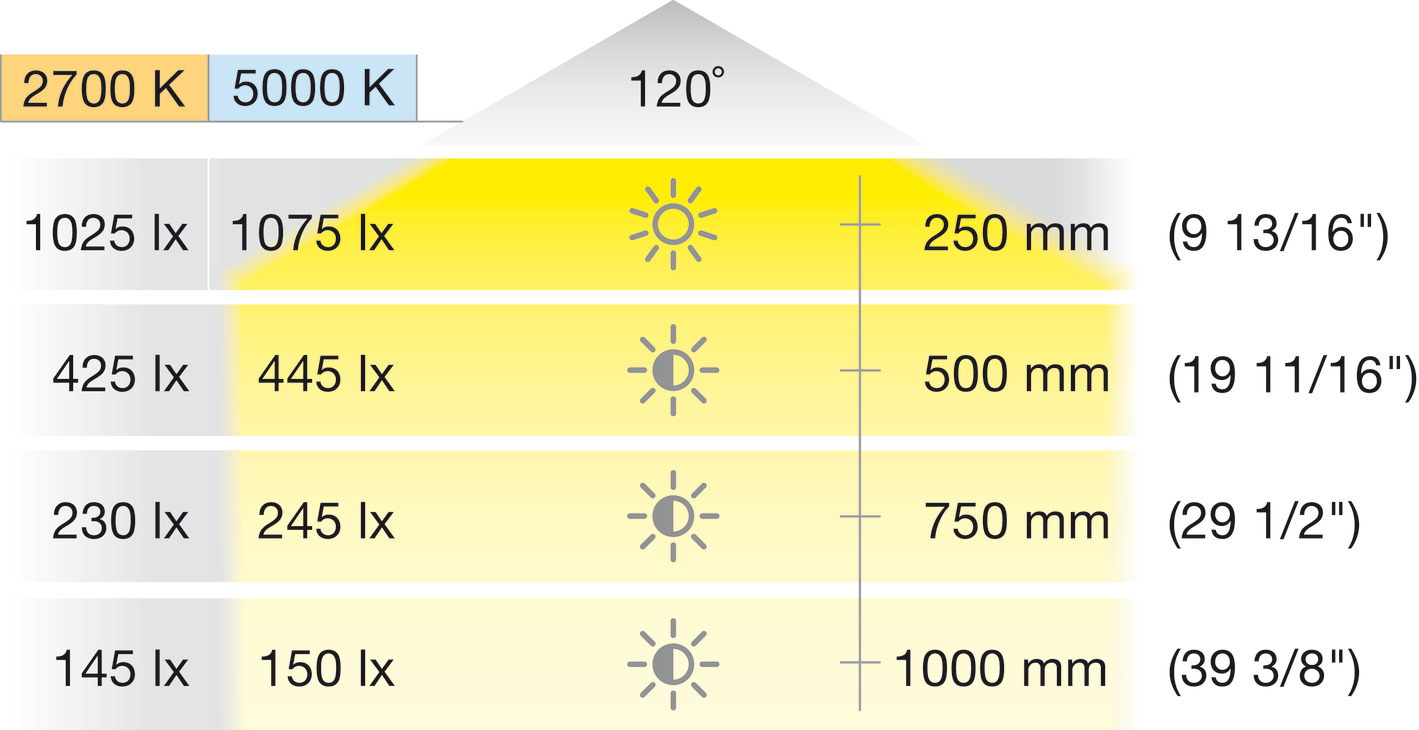

  - Luminous flux/m : 410?–?440 lm

  - Luminous efficacy : 85?–?92 lm/W

  - Energy efficiency class : F

  - Dimmable : yes

  - Version : 2-Wire Multi-white

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Section length : 50.00 mm

  - Number of LEDs/m : 120

  - Life time : L80/B10 >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Energy efficiency class : F

  - Degree of protection : IP20

  - Installation : Self-adhesive

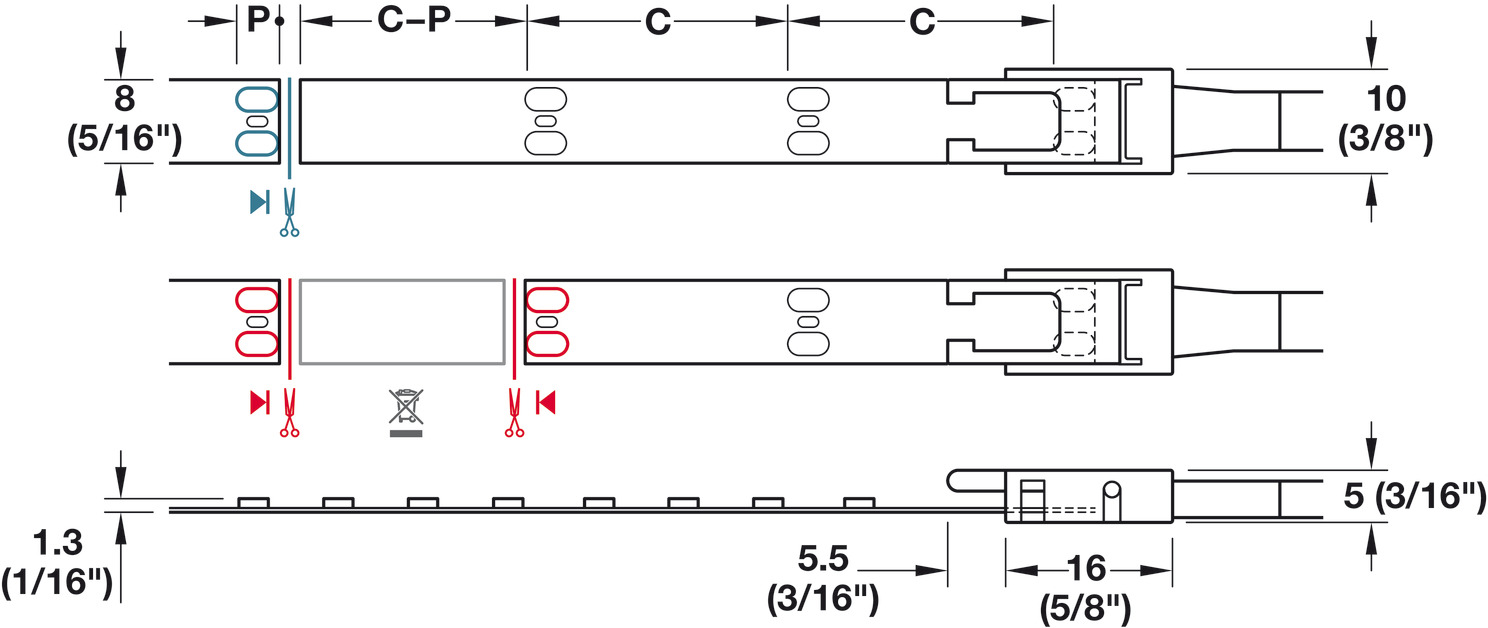

  - Installation reference : Cut LED strip light to length (one contact side remains on the remainderpiece; reusable). Connect LED strip lights (two contact sides required).C = section length P = length of contact surface

  - Order reference

  - Please order leads separately. Color control via Häfele Connect Mesh 4-way distributor 850.00.922. Please order separately.

  - Color temperature can only be controlled via Häfele Connect Mesh 4-way

  - distributor (850.00.922) and remote control or smartphone; or with 6-way

  - distributor with manual 2-wire tunable white control (833.95.895). Please

  - order separately.


  Additional Information …

  Maximum visual strip length applies to an imperceptible drop in luminous flux of max. 30%. Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights. Remote control only via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Fitting instructions for Loox5 LED 2075 / 2078 / 2079 / 2087 / 3078 / 3087

  Safety Notes for LED Strip Lights

  Hafele_Lighting_2024|Page 149

  Hafele_Lighting_2024|Page 158



• Required Products & Optional Accessories

  Optional Accessories:



  • Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18
  • Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Remote control, Häfele Connect Mesh
  • Furniture Switch, Häfele Connect Mesh
