Hafele 833.77.242 LED3087, 24V, 9.6 watts per meter, 2-wire multi-white, 2700-5000k, 5 meters (1 piece), 83377242, 833-77-242Zoom

Hafele 833.77.242 LED3087, 24V, 9.6 watts per meter, 2-wire multi-white, 2700-5000k, 5 meters

$232.00$290.00You Save: $58.00 (20%)
Item# Hafele-833.77.242
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 833.77.242

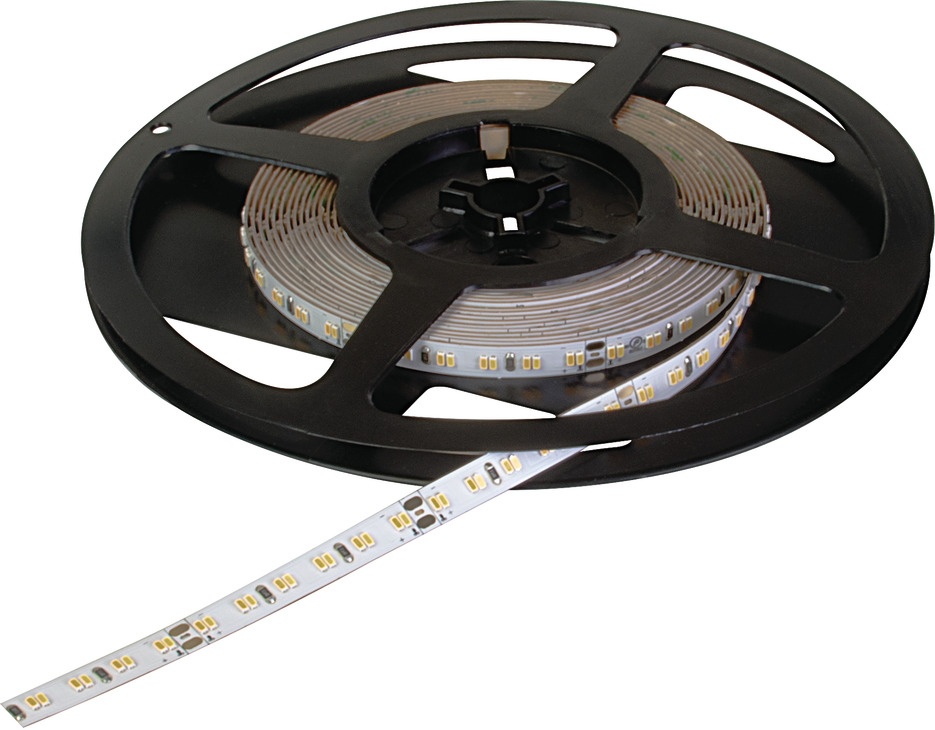

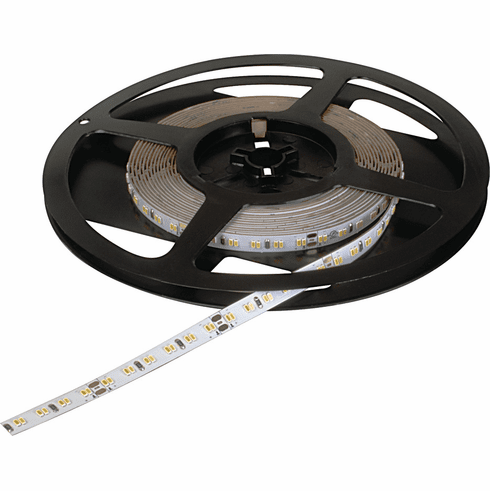

    Product Title: LED strip light, Häfele Loox5 LED 3087, Häfele Loox5 LED 3087, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m, 5 m

    Category: LED strip light, Häfele Loox5 LED 3087, Häfele Loox5 LED 3087, 24 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m

    Item Details …

    -     Tunable color temperature (2700K-5000K) without flickering

    - Uses 2-Wire Cables; no adapters needed

    - Color temperature : 2700?–?5,000 K

    - Light color : Warm white to cool white

    - Nominal voltage : 24.00 V

    - Wattage/m : 9.60 W

    - Luminous flux/m : 825?–?875 lm

    - Luminous efficacy : 86?–?97 lm/W

    - Energy efficiency class : F

    - Height (inch) : 1/16"

    - Width (inch) : 5/16"

    - Dimmable : yes

    - Version : 2-Wire Multi-white

    - Material : Plastic

    - Color : White

    - Strip width : 8.00 mm

    - Strip height : 1.30 mm

    - Section length : 50.00 mm

    - Contact surface length : 4.00 mm

    - Number of LEDs/m : 120

    - Life time : L80/B10 >50,000 h

    - Color rendering index Ra : >90

    - Color rendering index R9 : > 50

    - Energy efficiency class : F

    - Degree of protection : IP20

    - Installation : Self-adhesive

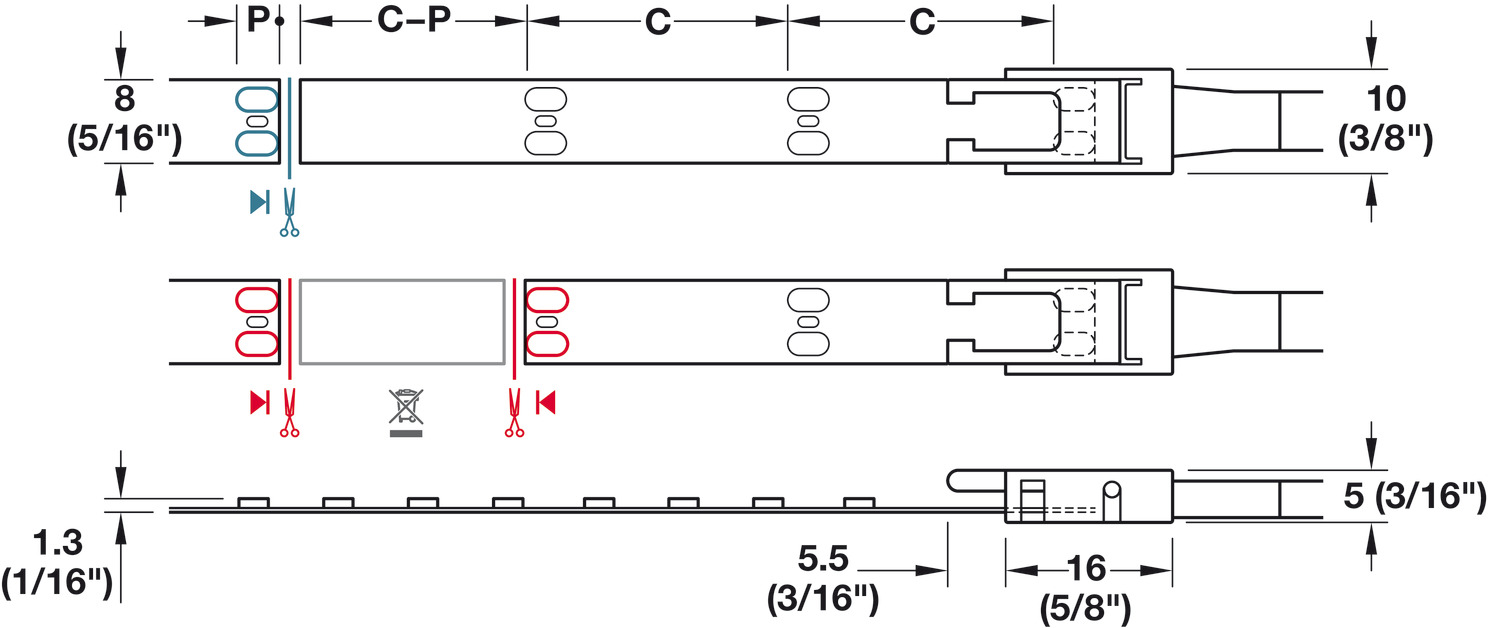

    - Installation reference : Optimized light mixtureCool white and warm white LEDs in the smallest of spacesOptimal light mixture without flickeringCut LED strip light to length (one contact side remains on the remainderpiece; reusable). Connect LED strip lights (two contact sides required).C = section length P = length of contact surface

    - Order reference

    - Please order leads separately. Color control via Häfele Connect Mesh 4-way distributor 850.00.922. Please order separately.

    - Color temperature can only be controlled via Häfele Connect Mesh 4-way

    - distributor (850.00.922) and remote control or smartphone; or with 6-way

    - distributor with manual 2-wire tunable white control (833.95.895). Please

    - order separately.


    Additional Information …

    Maximum visual strip length applies to an imperceptible drop in luminous flux of max. 30%. Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights. Remote control only via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Optional Accessories:

    • Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18
    • Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
    • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
    • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
    • Remote control, Häfele Connect Mesh
    • Furniture Switch, Häfele Connect Mesh
