Hafele 833.77.261 Loox5 LED3036,24V, 2.5W, 3000K, puck light, 65mm x 65mm x 6mm, plastic, silver, square, CRI>90, 2 meter lead

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.77.261

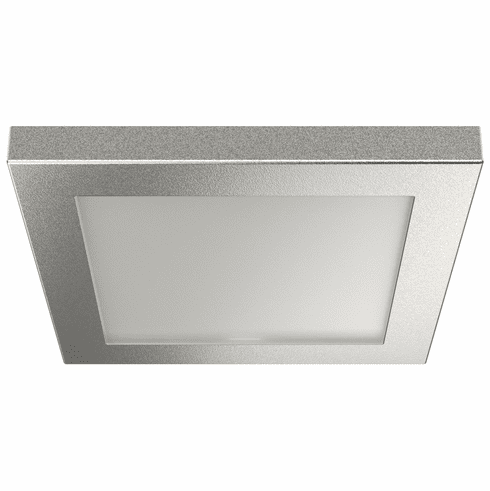

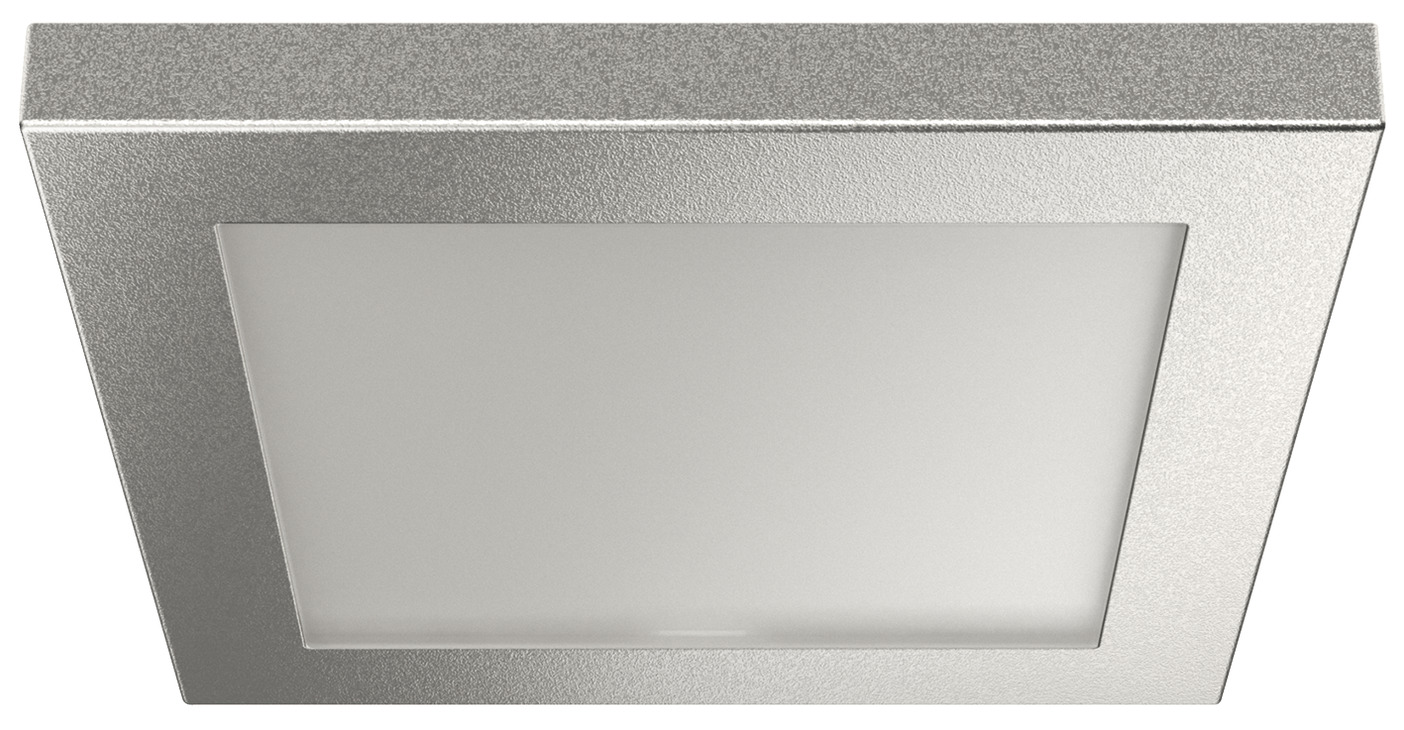

  Product Title: Surface mounted downlight, Häfele Loox5 LED 3036 24 V, Monochrome,, 65 x 65 mm (2 9/16" x 2 9/16"), extremely flat 6 mm (1/4"), Warm white 3000 K

  Category: Surface mounted downlight, Häfele Loox5 LED 3036 24 V, Monochrome,, 65 x 65 mm (2 9/16" x 2 9/16"), extremely flat 6 mm (1/4")

  Item Details …

  - Equipped with high-quality Samnsung® LEDs

  - Nominal voltage : 24.00 V

  - Wattage : 2.50 W

  - Number of LEDs : 7

  - Length : 65.00 mm

  - Housing color/finish : silver colored

  - Installation : for screw fixing

  - Energy efficiency class : G

  - Length (inch) : 2 9/16"

  - Width (inch) : 2 9/16"

  - Height (inch) : 1/4"

  - Dimmable : yes

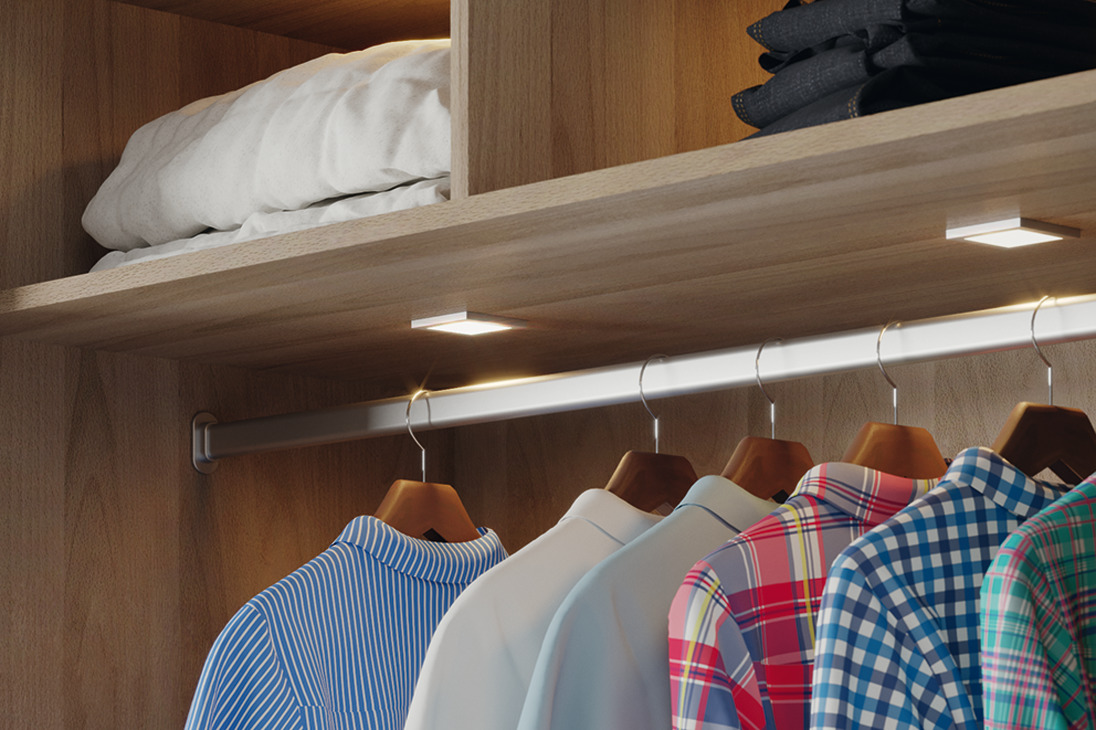

  - Area of application : ---Cabinets, shelving units, display cabinets, shelves

  - Housing material : Plastic

  - Diffuser material : Plastic

  - Diffuser color/finish : white, opal

  - Dim. (L x W x H) : 65 x 65 x 6 mm

  - Life time : L80/B10 30,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : for glue fixing, or for screw fixing

  - Order reference

  - Also available as 12 V light and RGB light.

  - Supplied with:

  - 1 LED light with 2 m *78 3/4") lead

  - Fixing material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LED 2051/3036

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 142



• Required Products & Optional Accessories

  Optional Accessories:



  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
  • Surface Mounted Downlight, Häfele Loox5 LED 3081 24 V
