Hafele 833.89.066 LOOX Multi-switch box, selectable between standard and 3-way, plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.89.066

  Product Title: Multi Switch Box, With cross circuit, Plastic, black

  Category: Multi Switch Box, With cross circuit, Plastic, black

  Item Details …

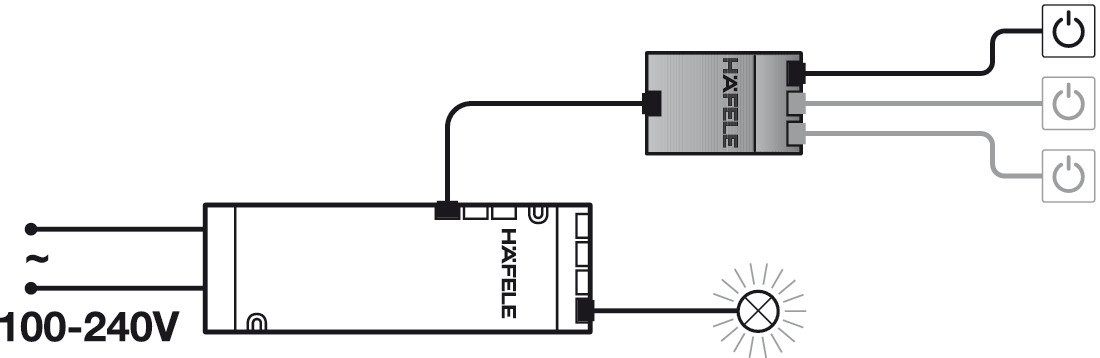

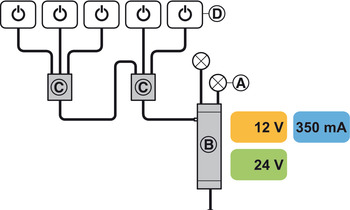

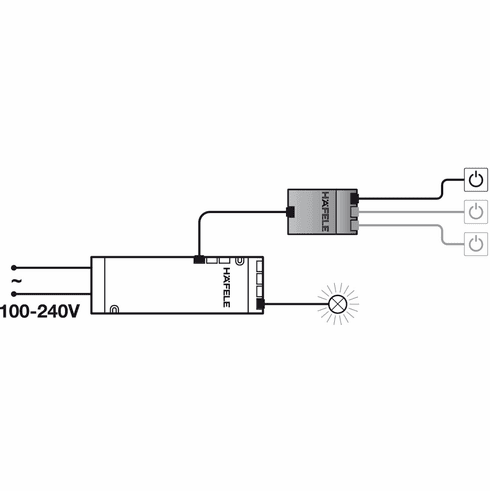

  - 1 LED driver operated by up to 3 switches. Allows the LED driver or distributor with switching function to be switched on and off from different positions.

  - Standby power consumption : 0.30 W

  - Height (inch) : 5/8"

  - Length (inch) : 2 3/16"

  - Width (inch) : 1 3/4"

  - Operation mode : With cross circuit, Deactivated cross circuit

  - Material : Plastic

  - Color/finish : Black

  - Dim. (L x W x H) : 55 x 45 x 16 mm

  - Degree of protection : IP20

  - Cable length : 1,000.00 mm

  - Installation reference : 2 operating modes can be selected using an integrated toggle switchCross: On/off switching at different switchesNo cross: Switching on with switch 1, 2, or 3. For switching off, all switches that were switched on have to be activated again.

  - Order reference

  - Lead for switches available in other lengths. Please order separately.

  - Supplied with:

  - 1000 mm (39 3/8") lead for switch


  Additional Information …

  2 operating modes can be selected using an integrated toggle switch.Cross: On/off switching at different switches.No cross: Switching on with switch 1, 2 or 3.For switching off, all switches that were switched on have to be activated again.



  Drill hole Ø for plug: 12 mm (1/2")Alternative to the supplied 1000 mm (39 3/8") lead for multi-switch box.The drill hole Ø for the male plug and the female socket of the switch leads is 12 mm (1/2").Drill hole Ø for plug: 12 mm (1/2")Alternative to the supplied three 1000 m (39 3/8") leads for multi-driver box.The drill hole Ø for the male plug and the female socket of the switch leads is 12 mm (1/2").

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for multi switch box

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 238



• Required Products & Optional Accessories

  Optional Accessories:



  • Lead, Häfele Loox, or Multi Driver Box to Switching Input
  • Extension lead, Häfele-Loox for switch
