Product Information
Description
Manufacturer: Hafele
Item: 833.89.182

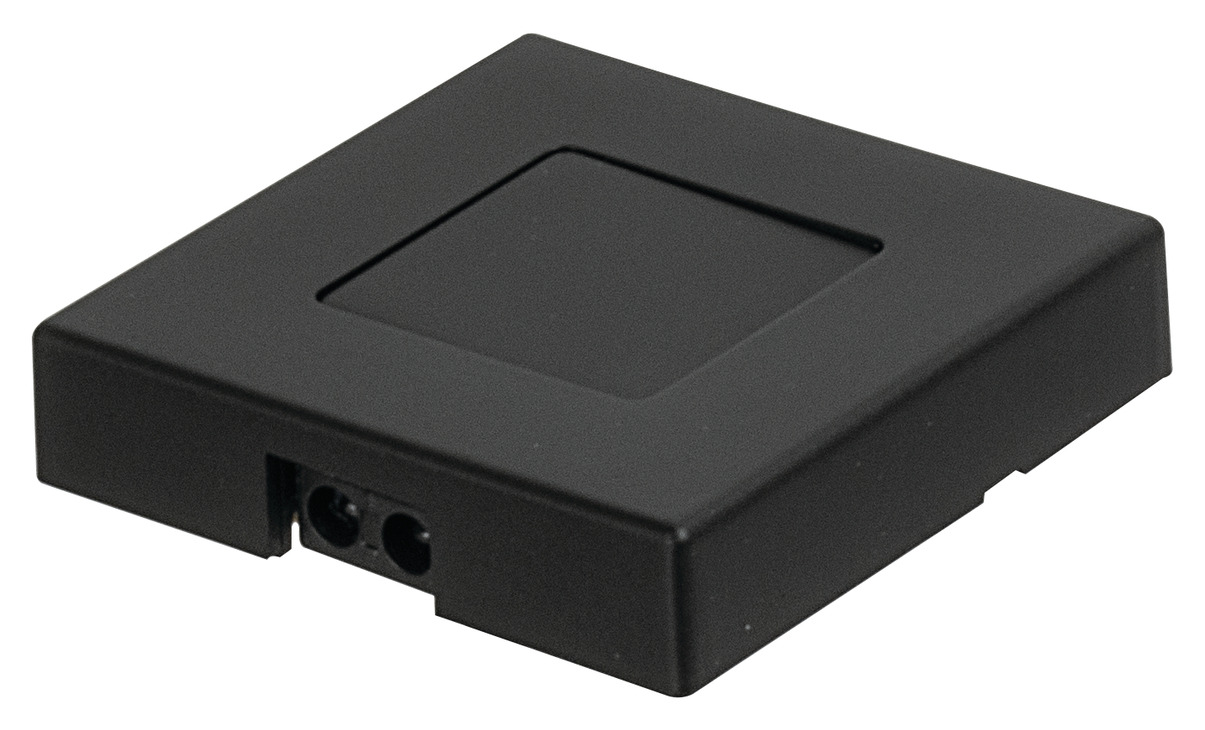

Product Title: Door Sensor Switch, Soft On/Off Switching, Modular, Soft on/off switching, Plastic, black
Category: Door Sensor Switch, Soft On/Off Switching, Modular, Soft on/off switching
Item Details …
- Version : Soft on/off switching

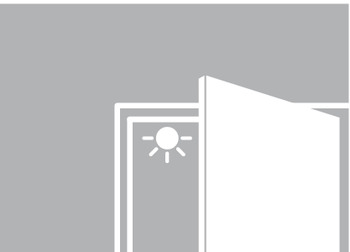

- Switching function : soft on/off, Door open = light on, door closed = light off
- Memory function : No
- Length : 40.00 mm
- Length (inch) : 1 9/16"
- Height (inch) : 5/16"
- Width (inch) : 1 9/16"
- Sensor range : 0?–?100 mm
- Area of application : For mounting under cabinet or shelf
- Material : Plastic

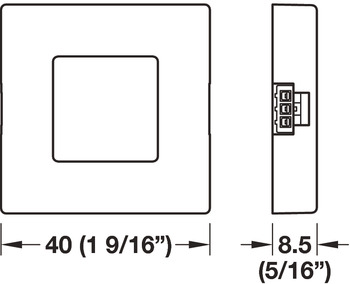

- Dim. (L x W x H) : 40 x 40 x 8.5 mm
- Power consumption : 0.30 W
- Degree of protection : IP20
- Installation : for glue fixing, With screws
- Order reference
- Please order lead with snap-in connector for modular switches separately.
- Supplied with:
- 1 switch with fixing materialData Sheet
Product Resources
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Driver Lead with Snap-In Connector, Häfele Loox, for modular switch (choose one):With snap-in connector, Length: 0.5 m (19 11/16")
With snap-in connector, Length: 1 m (39 3/8")
With snap-in connector, Length: 2 m (78 3/4")833.89.140
833.89.141
833.89.142Click to order
Click to order
Click to order
Optional Accessories:- Extension lead, Häfele-Loox for switch
