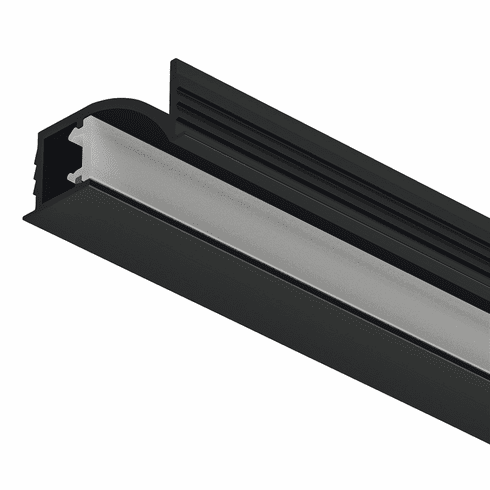

Hafele 833.94.209 Profile 1107, Aluminum, Black Finish with Opal Lens / 92 Inches

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.209

  Product Title: Profile for Recess Mounting, Häfele Loox5 Profile 1107, for LED strip lights up to max. 5 mm (3/16") width, Asymmetrical light distribution, Length: (92") 2336 mm, black

  Category: Profile for Recess Mounting, Häfele Loox5 Profile 1107, for LED strip lights up to max. 5 mm (3/16") width, Asymmetrical light distribution

  Item Details …

  - Light permeability : 60?–?70?%

  - Width (inch) : Diffuser: 3/16"

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Internal width : 5.00 mm

  - Routing width : 11.00 mm

  - Routing depth : 23.50 mm

  - Installation : For recessing

  - Order reference

  - Please order profile tool 833.72.799 for push fitting the LED strip light separately.

  - Supplied with:

  - 1 aluminum profile

  - 1 diffuser opal white


  Additional Information …

  For LED strip lights up to a width of 5 mm. Slide-in 7 mm wide clips from the side before installing the profile.The surface on the aluminum profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!DiffuserThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 210



• Required Products & Optional Accessories

  Optional Accessories:



  • Profile tool, For Loox5 Profile 1107
  • End cap, For Häfele Loox5 profile 1107
