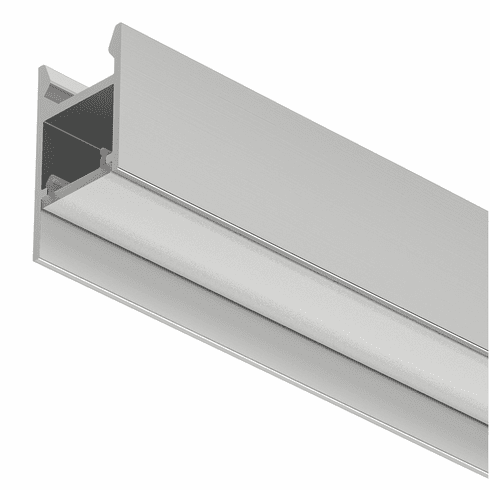

Hafele 833.94.219 Profile 2104 Surface Mount, Aluminum, Silver Finish, Opal Lens, 92 Inch

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.94.219

  Product Title: Aluminum Profile, Häfele Loox5 Profile 2104, for LED strip lights, Internal width 11 mm (7/16"), Surface Mounted, Length: (92") 2500 mm, silver colored

  Category: Aluminum Profile, Häfele Loox5 Profile 2104, for LED strip lights, Internal width 11 mm (7/16"), Surface Mounted

  Item Details …

  - Asymmetrical light distribution provides a glare-free light source.

  - Light permeability : 60?–?70?%

  - Version : For concealed fixing

  - Material : Profile: Aluminum, Diffuser: Polycarbonate

  - Diffuser width : 11.00 mm

  - Supplied with:

  - 1 aluminum profile

  - 1 diffuser opal white


  Additional Information …

  For LED strip lights up to a width of 8 mm. Slide-in 10 mm wide clips from the side before installing the profile.Distance of retaining clips max. 500 mm.DiffuserThe opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 215



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Mounting Bracket, For Häfele Loox5 profile 2103/2104 (choose one):


  • for concealed fixing, 1 pair

    833.95.908

    Click to order



  Optional Accessories:



  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, For Häfele Loox5 profile 2104
  • End Cap, Slotted, for Häfele Loox5 Profile 2103/2104
