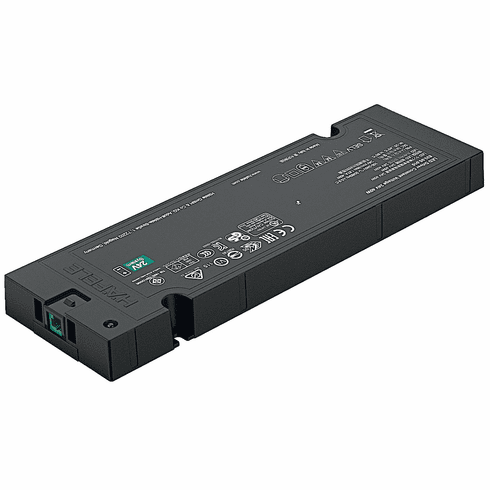

Hafele 833.95.010 Loox5 Driver 100-240 volts AC to 24 volts DC, 40 Watts, PFC

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.010

  Product Title: Driver, Häfele Loox5, constant voltage 24 V, with efficiency factor correction, Voltage 24 V, output power: 40 W, with efficiency factor correction

  Category: Driver, Häfele Loox5, constant voltage 24 V,

  Item Details …

  - Extremely flat, 16 mm

  - 24 V drivers with Loox5 generation plug system

  - Mains voltage : 100?–?240 V

  - Mains frequency : 50?–?60 Hz

  - Plug mains voltage :

  - Efficiency factor correction (PFC) : yes

  - Ambient temperature : -25–45 °C

  - Output voltage : 24 V DC

  - Version : With overload protection

  - Color/finish : Black

  - Connections : 1 x socket, Loox5 2-pin 24 V box to box

  - Secondary side circuit : Parallel connection

  - Life time : >50,000 hours

  - Installation : With screws

  - Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location.

  - Order reference

  - Alternative mains leads available with open cable ends or switches.

  - Supplied with:

  - 1 driver with mounting accessories

  - 1 US power cord


  Additional Information …

  Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12V or 24V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Mounting Instructions

  EU Declaration of Conformity

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 286



• Required Products & Optional Accessories

  Optional Accessories:



  • 6-Way Distributor, Häfele Loox5, With Multi-Switching Function, 24 V
  • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
  • Extension lead, For Häfele Loox5 24 V 2-Pin (Monochrome Or Multi-White 2-Wire Technology)
  • 6-Way Distributor, Häfele Loox5, without Switching Function, 24 V
