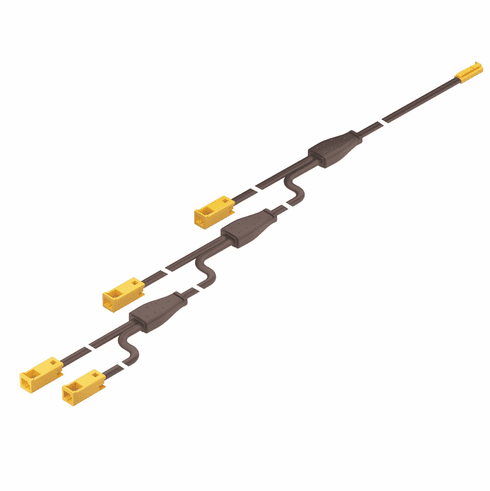

Hafele 833.95.742 LOOX5 4-way extension lead 12v/6.5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.742

  Product Title: 4-way Extension Lead, Häfele Loox5, 12V, Monochrome, Length: (255 7/8") 6500 mm

  Category: 4-way Extension Lead, Häfele Loox5, 12V, Monochrome, Length: (255 7/8") 6500 mm

  Item Details …

  - Color system : monochrome or MW 2-wire-Technology

  - Input ports : 1 x plug, Loox5 2-pin 12 V

  - Connections : 4 x sockets, Loox5 2-pin 12 V

  - Nominal voltage : 12.00 V

  - Cable length : 6,500.00 mm

  - Cable length : 255 7/8"

  - Current carrying capacity : 5.00 A

  - Wire cross section AWG : 18.00

  - Length (inch) : 255 7/8"

  - Drill hole Ø : Plug 5/16"

  - Material : Plastic

  - Number of leads : 2.00

  - Plug drill hole Ø : 8.00 mm

  - Socket drill hole Ø : 13.00 mm

  - Supplied with:

  - 1 extension lead

  - 1 plug/4 sockets


  Additional Information …

  Lead length from Loox5 driver to device max 10 m (393 11/16").Long cable lengths in combination with large loads (strip light lengths) can result in voltage drop in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the nominal output voltage of the driver (12 V or 24 V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 259
