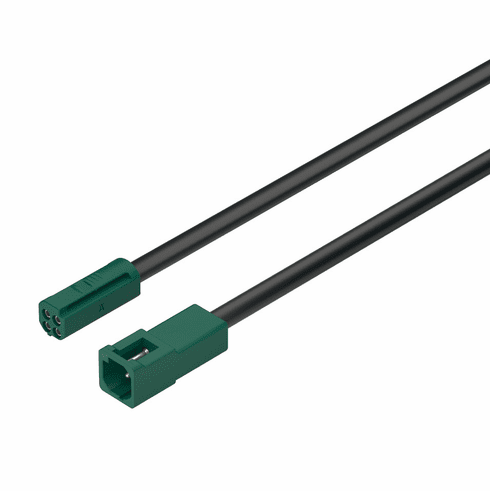

Hafele 833.95.794 Loox5 extension lead, multi-white, 24 volts, 0.5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.95.794

  Product Title: Extension lead, Häfele Loox5 multi-white, 24 V, 20 AWG, for Loox5 3-wire multi-white lights, Length: (19 11/16") 500 mm

  Category: Extension lead, Häfele Loox5, 3-pin (multi-white), 3.5 A, 20 AWG

  Item Details …

  - Wire gauge: 20AWG; Wire type: CL3R

  - Construction: 4-conductor, stranded copper

  - Rating: Class 2, double insulated

  - Color system : MW

  - Input ports : 1 x plug, Loox5 3-pin MW 24 V

  - Connections : 1 x socket, Loox5 3-pin MW 24 V

  - Nominal voltage : 24.00 V

  - Version : Meets the following codes for wire and cable locations:> NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power> NEC article 725.135 Installation of Class 2 cable > NEC article 411.5 Specific Location Requirements

  - Current carrying capacity : 3.50 A

  - Wire cross section AWG : 20.00

  - Drill hole Ø : Plug 3/8"; socket 1/2"

  - Material : Plastic

  - Number of leads : 3.00

  - Plug drill hole Ø : 9.00 mm

  - Socket drill hole Ø : 13.00 mm

  - Supplied with:

  - 1 extension lead plug/socket


  Additional Information …

  Maximum lead length from the Loox5 driver to the consumer: 10 m. Loss of voltage in the cable due to long cable lengths in conjunction with large loads (strip light lengths). These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver(24 V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 187

  Hafele_Lighting_2024|Page 280
