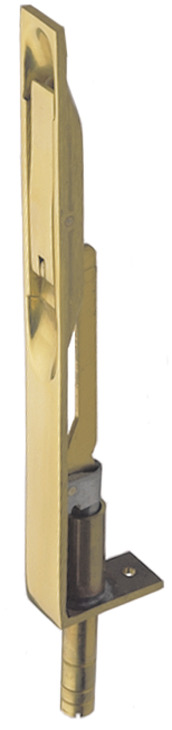

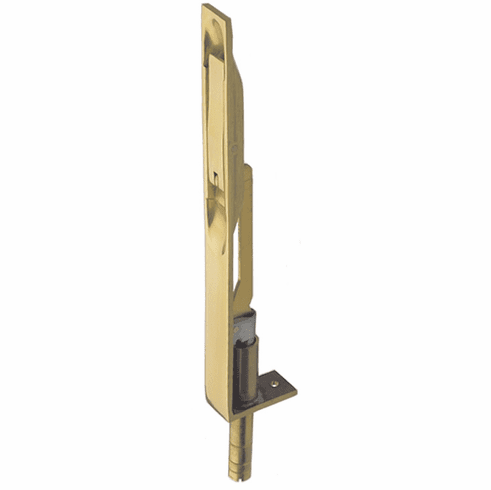

Hafele 900.17.851 Flush Bolt, brass, nickel-plated, 203mm

Product Information

• Description

  Hafele 900.17.851 Flush Bolt, Lever Action
  Matt nickel



  Application : For wood doors

  Installation : Typically mounted to the face of the folding door at the base, but also suitable for edge-mounting

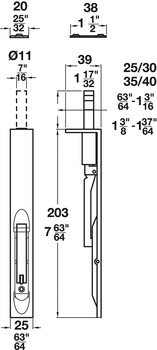

  Adjustment : Throw length adjustable with screwdriver: 25, 30, 35 and 40 mm (1, 1 3/16��, 1 3/8�� and 1 9/16��)

  For door thickness : Min for Face-mounting: (1 3/4") 45 mm
  Min. for Edge-mounting: (1 3/8") 35 mm

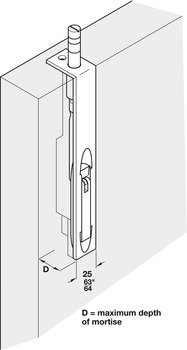

  Depth : Mortise Max: (1 7/16") 37 mm

  Material : Brass



  Supplied with :

  Mounting screws





• Specifications

  Hafele 900.17.851, 900-17-851, 90017851, 900.17
