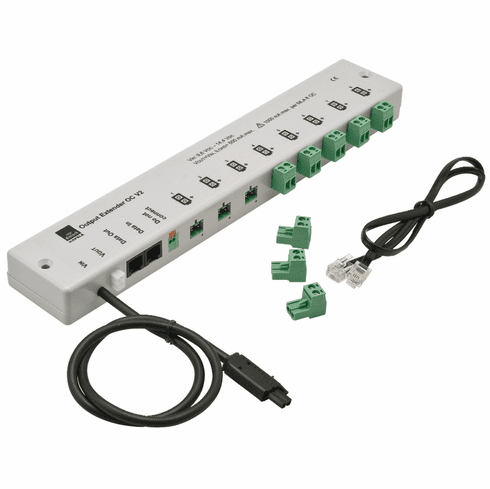

Hafele 910.51.087 Output Extender, OE 200 Dialock, For EFL

Product Information

• Description

  Manufacturer: Hafele
  Item: 910.51.087

  Product Title: Output Extender OE 200, Dialock, for all EFL Furniture Locks, For EFL

  Category: Output Extender OE 200, Dialock, for all EFL Furniture Locks, For EFL

  Item Details …

  - only keyed to differ operation with up to 16 OE 200 possible

  - separate power supply

  - quick and cost-effective installation

  - Please consult our Dialock technicians for planning advice.

  - Product type : Output Extender OE 200

  - Area of application : for MOT for controlling up to 8 electrical devices with MSTB plug (e.g. relay) or with AMP plug

  - Version : with mains lead and data cable

  - Type of voltage supply : Power supply unit

  - Input voltage : 9.6?–?14.4 V

  - Power supply cable length : 0.50 mm

  - Supplied with:

  - 1 OE 200 Open Collector output extender

  - 1 Data cable 0.5 m (19 41/64”)


  Additional Information …

  The OE 200 multi-lock adapter is connected between terminals and electrical devices if more than 1 (with FT furniture terminals) or 4 (with MOT wall terminals) have to be actuated.To do this, the OE 200 multi-lock adapter evaluates the incoming data signal of the terminal and forwards it to electrical devices such as furniture locks as a switch signal.Multi-lock adapter with keyed to differ operationup to 8 electrical devices can be actuated individually with 1 OE 200up to 128 electrical circuits can be actuated individually with a maximum of 16 OE 200 connected in seriesother functionswith NO output (normally open) with OE 200 for relays

• Data Sheet

  Detailed Data Sheet

• Specifications

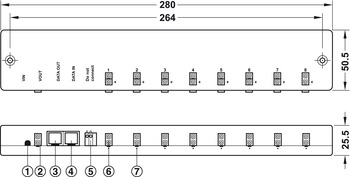

  Hafele 910.51.087 Output Extender V2 W/8 Open Collector Pl Gr 280 X 50 X 25Mm (36.5X14X4.5 Cm) - 1 Pcs


  Product Specifications:
  Contact us for more information.
