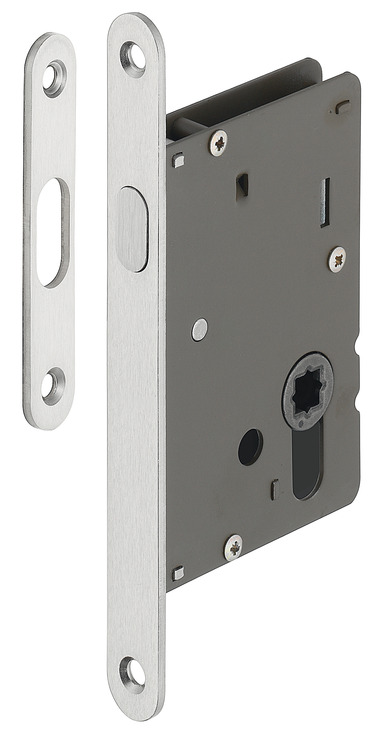

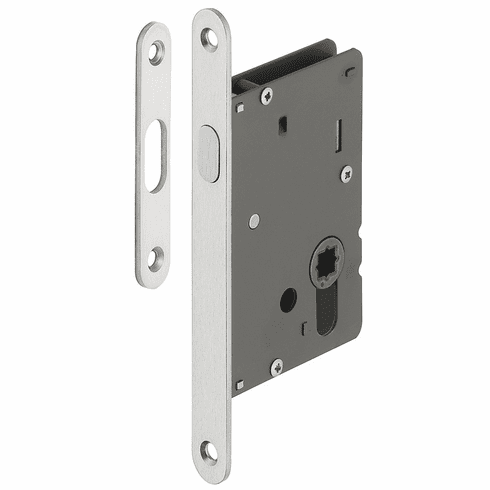

Hafele 911.26.092 Mortise Locks, Oval, Backset A= 50 mm (1 31/32") Matt Nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.092

  Product Title: Mortise Locks, Oval, Backset A= 50 mm (1 31/32"), Forend width 16 mm, for residential areas, for wooden sliding doors, Matt Nickel

  Category: Mortise Locks, Oval, Backset A= 50 mm (1 31/32"), Forend width 16 mm, for residential areas, for wooden sliding doors

  Item Details …

  - Privacy function

  - With compass bolt

  - Lock type : WC/Bathroom

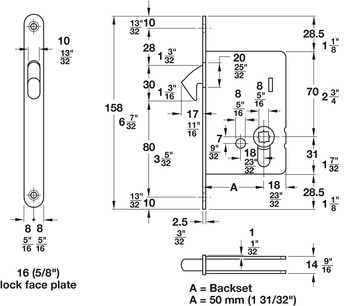

  - Backset (mm) : 50.00 mm

  - Forend design : Flat forend rounded

  - Forend width : 16.00 mm

  - Material : Brass; Lock case: Steel

  - Latchbolt version : Without latch

  - Area of application : Residential areas

  - Application : Sliding doors

  - For door material : wood

  - Version : with flush pull handle, long

  - Color/finish : Matt Nickel; Lock Case: Lacquered

  - Forend length : 158.00 mm

  - Deadbolt version : Circle deadbolt

  - Supplied with:

  - 1 mortice lock

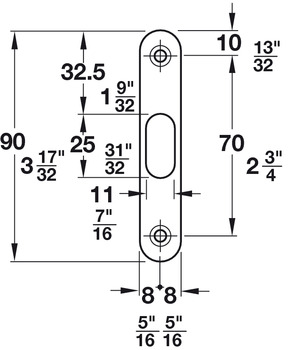

  - 1 striking plate

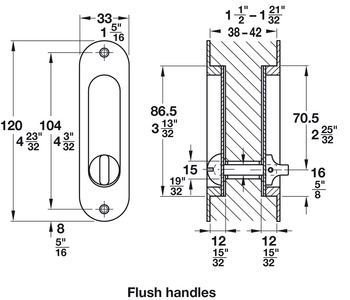

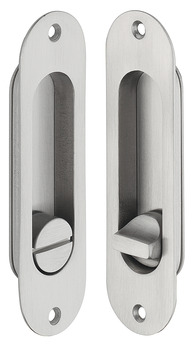

  - 1 pair of flush pull handles, long

  - 1 set of fixing material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.387



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.358-1.362.pdf

  Hafele 911.26.092 Mortise Lock, brass, nickel-plated matt, 50/16mm


  • Hardware > Locks & Keys
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 911.26.092
  • Condition: new

• Required Products & Optional Accessories

  Optional Accessories:



  • Front Handle, for Mortise Locks on Sliding Doors
