Hafele 911.26.990 BL100 Privacy Lock, for Sliding Barn Door Rectangular trim, ADA T2 thumb-turn, matt stainless steel, 2 1/4" lock backset

Product Information

• Description

  Manufacturer: Hafele
  Item: 911.26.990

  Product Title: BL100 Privacy Lock, for Sliding Barn Door, Rectangular trim, ADA T2 thumb-turn, matt stainless steel, 2 1/4" lock backset

  Category: ,

  Item Details …

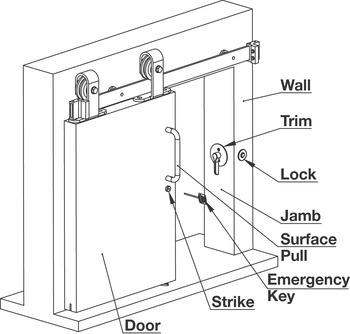

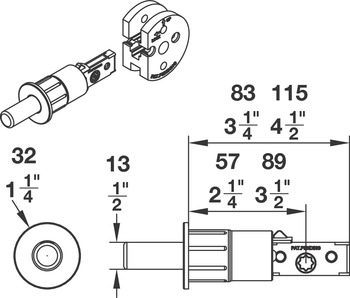

  - Tubular drive-in bolt installed into jamb

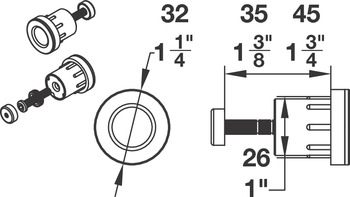

  - Adjustable dust proof strike installed in the door on trailing side

  - Discrete release button installed on outer face of door for emergency release

  - 2 backset options: 2 1/4� backset for wall thicknessof 4 1/2� - 6 1/2� or 3 1/2� backset for wall thickness 6 1/2� and up

  - Non-handed

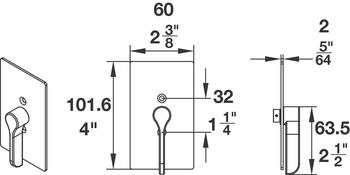

  - Various trim options including ADA compliant levers

  - Spindle hub: 5 x 5 x 62 mm (3/16� x 3/16� 2 7/16�)

  - For door thickness min. : 1 3/8"

  - For door thickness max. : 1 3/4"

  - Backset (mm) : 2 1/4"

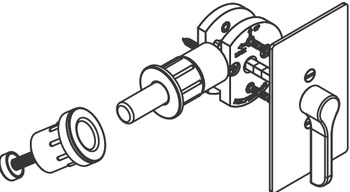

  - Supplied with:

  - Spindle and screws

  - Spindle size: 5 x 5 x 62 mm (3/16 x 3/16 x 2 7/16�)

  - Screw size: M4 x 50 mm (1 15/16�)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.385
