Hafele 911.62.444 Flush Bolt, Lever Action Metal or Wood Doors, Oil-Rubbed Bronze (US10B)

Product Information

• Description

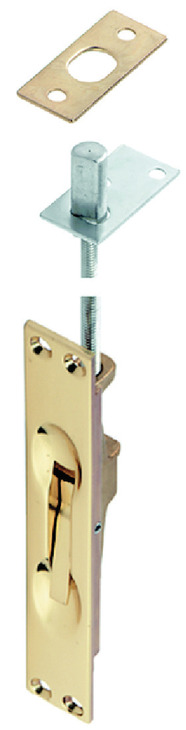

  Hafele 911.62.444 Flush Bolt, Lever Action
  Metal or Wood Doors, Oil-Rubbed Bronze (US10B)



  Application : For metal or wood doors

  Installation : Recessed into edge of door at top and bottom

  For door thickness : Min: (1 3/8") 35 mm



  Supplied with :

  Lever action flush bolt

  Strike plate

  Bolthead guide plate

  Threaded rod

  Bolthead 38 mm (1 1/2��)

  Mounting screws



  Optional items:
  Strike, Dust Proof, for Flush Bolts
  Optional Bolthead, for Flush Bolt
  Optional Extension Rod, for Flush Bolt


• Specifications

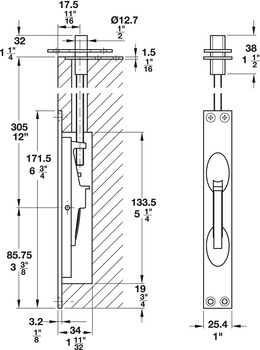

  Hafele 911.62.444, 911-62-444, 91162444, 911.62


  Specifications/Hafele Catalog - Page# AH4.31: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Door Accessories Catalog Return to: All Hafele Catalogs
