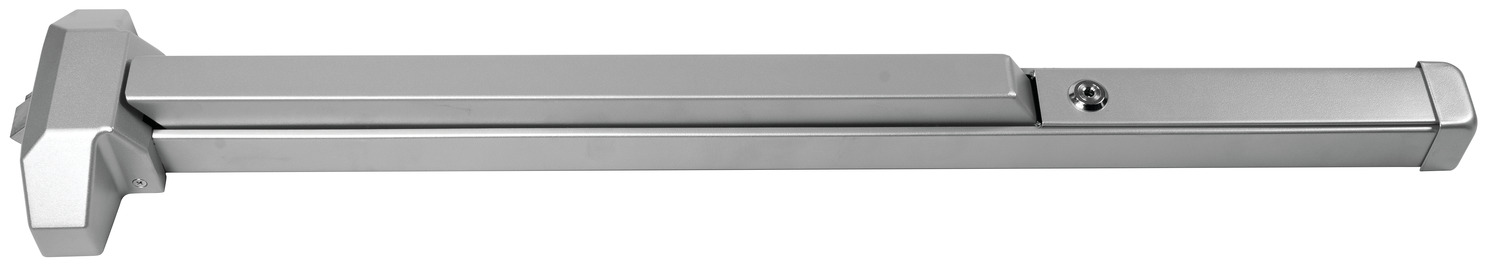

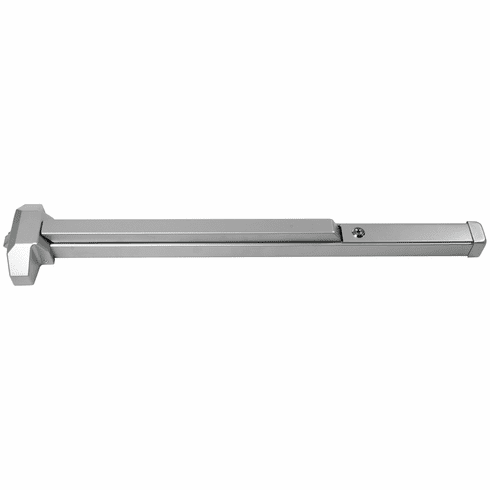

Hafele 911.79.336 Panic Rim Exit Device, Wide Stile Design 5510S - panic-rated

Product Information

• Description

  Hafele 911.79.336 Panic Rim Exit Device, Wide Stile Design
  5510S - panic-rated



  Application : For use on single doors or double doors with mullion.
  Fire rated on 4�� x 8�� (1219 x 2438 mm) single doors or 8�� x 8�� (2438 x 2438 mm) double fire rated doors.
  Fasteners provided for standard 1 3/4�� (44 mm) thick hollow metal or wood doors.
  Please specify if door is greater than 1 3/4�� (44 mm).

  Width : Minimum stile: (3 1/2") 90 mm

  Length : (36") 914 mm

  Handing : Non-handed

  Material : Device head cover: Stainless Steel or Nonferrous Alloy
  Chassis: Plated Steel
  Mechanism housing: Steel or Stainless Steel
  Push bar: Steel or Stainless Steel
  End cap: Steel or Stainless Steel
  Latch bolt: 100% Stainless Steel, deadlocking type 11/16�� (17 mm) throw

  Finish : Aluminum



  Order reference :

  Fasteners: Machine screws furnished standard. Sex nuts and bolts (SNB) are required for use on wood doors, (order separately)
