Hafele 917.81.467 DT Lite Mortise Lock, Right Hand Opening Dialock door terminal, Oil-rubbed bronze (PVD)

Product Information

• Description

  Hafele 917.81.467 DT Lite Mortise Lock, Right Hand Opening
  DialockŪ door terminal, Oil-rubbed bronze (PVD)



  Finish : Oil-rubbed bronze (PVD)

  Model series : DT Lite

  Features : Panic function
  1-turn deadbolt
  28.5 mm (1 1/8") Armor plate
  With closing spring latch and feedback

  Application : For wood, composite and hollow metal doors
  Prepared for mortise cylinder

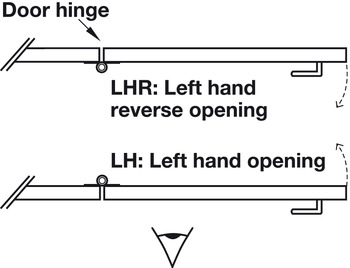

  Mounting : Right hand opening

  Material : Lock Case and Lever Follower: Steel
  Armor plate, Latchbolt and Deadbolt: Stainless steel

  Spindle : 8 mm

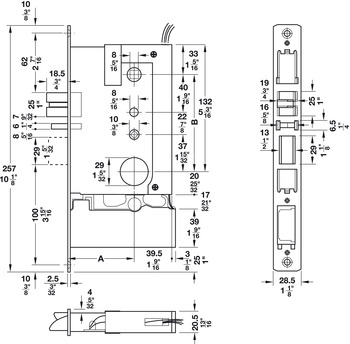

  Backset A : 70 mm

  Distance B : 98 mm



  Supplied with :

  Mortise lock#2 Screws#Armor plate#Curved strike plate with dust box (46 mm wide)#Battery box (without batteries)





• Specifications

  Hafele 917.81.467, 917-81-467, 91781467, 917.81


  Specifications/Hafele Catalog - Page# AH6.13: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Access Control Catalog Return to: All Hafele Catalogs
