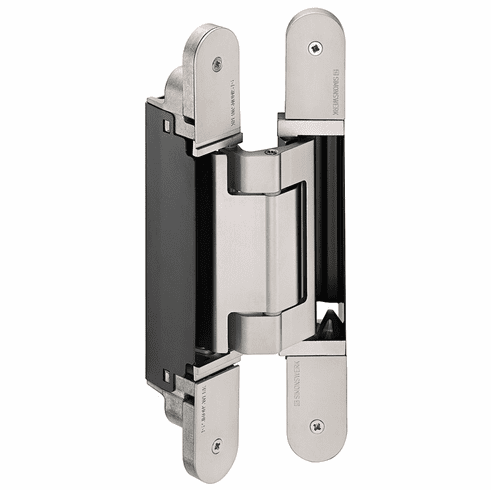

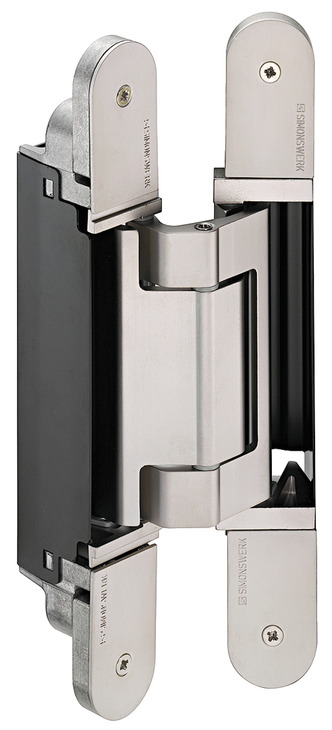

Hafele 924.17.524 Concealed Hinge, TECTUS TE 640 3D A8 concealed, 3D adjustable, size 240 mm, Satin nickel colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.17.524

  Product Title: Concealed Hinge, TECTUS TE 640 3D A8, concealed, 3D adjustable, size 240 mm, Satin nickel look

  Category: Concealed Hinge, TECTUS TE 640 3D A8, concealed, 3D adjustable, size 240 mm

  Item Details …

  - Mounting : For DIN left and DIN right hand use

  - Version : Maintenance-free slide bearings

  - Flange shape : rounded

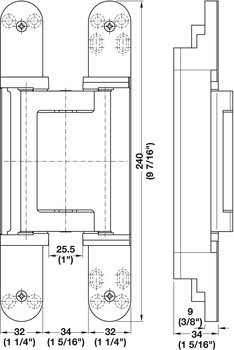

  - Flange width : 32 mm

  - Material : Aluminum, Steel

  - Flange height : 240 mm

  - Door weight max. : 352 lbs

  - Door thickness min. : 1 9/16"

  - Model series : TECTUS TE 640 3D A8

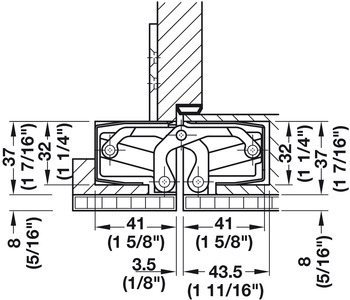

  - Area of application : Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panelMaximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors

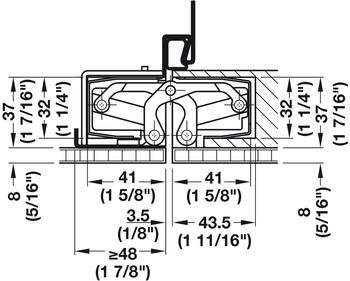

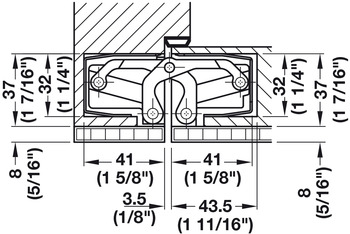

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 160.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ?40 mm

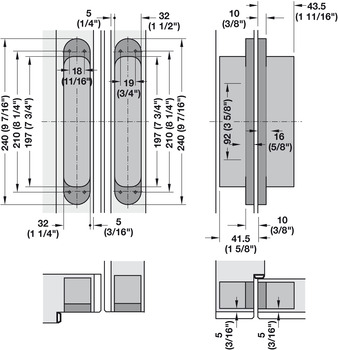

  - Router bit Ø : 24.00 mm

  - Router bit Ø : Bit: 15/16"#Guide: 1 3/16"

  - Thrust ring Ø : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|7|1|1|0|1|14
