Hafele 924.19.551 Concealed Hinge, TECTUS TE 640 3D A8, 924-19-551, 92419551Zoom

Hafele 924.19.551 Concealed Hinge, TECTUS TE 640 3D A8

$456.45$570.56You Save: $114.11 (20%)
Item# Hafele-924.19.551
Availability: Contact us for availability
This product is out of stock.

Product Information

  • Description

    Manufacturer: Hafele
    Item: 924.19.551

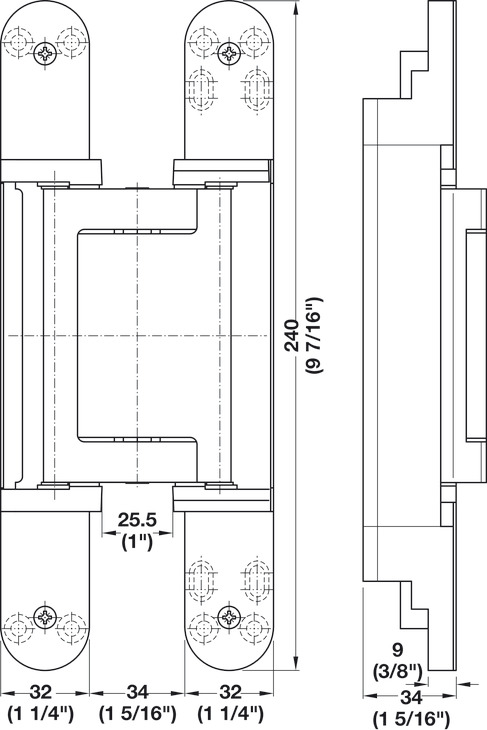

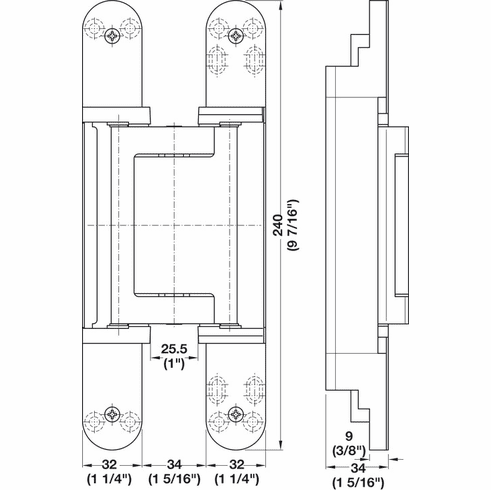

    Product Title: Concealed Hinge, TECTUS TE 640 3D A8, concealed, 3D adjustable, size 240 mm, Rustic umber

    Category: ,

    Item Details …

    -
    Mounting : For DIN left and DIN right hand use

    - Version : Maintenance-free slide bearings

    - Flange shape : rounded

    - Flange width : 32 mm

    - Material : Aluminum, Steel

    - Flange height : 240 mm

    - Door weight max. : 352 lbs

    - Door thickness min. : 1 9/16"

    - Model series : TECTUS TE 640 3D A8

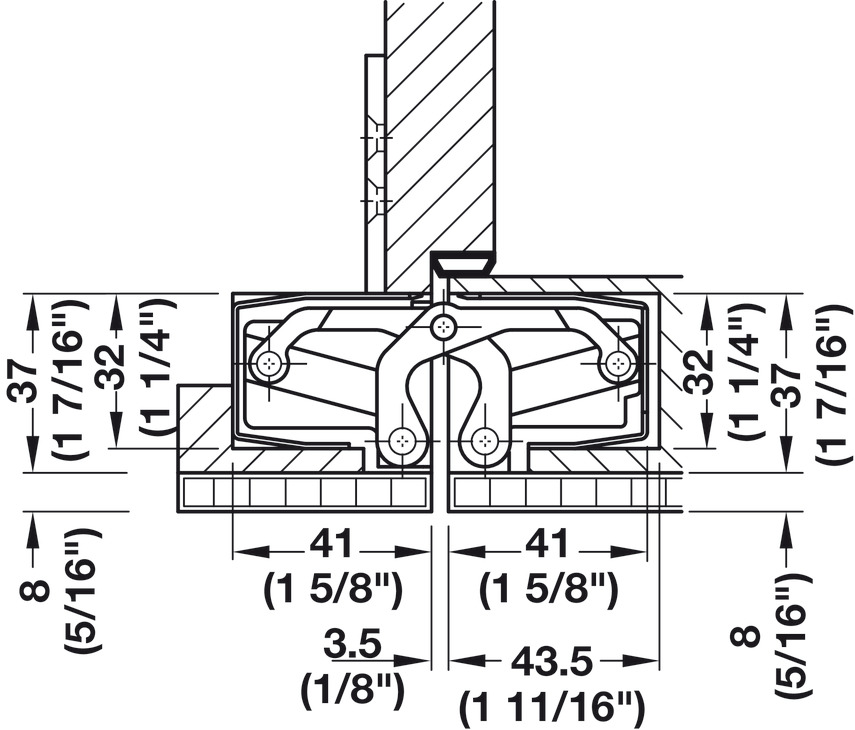

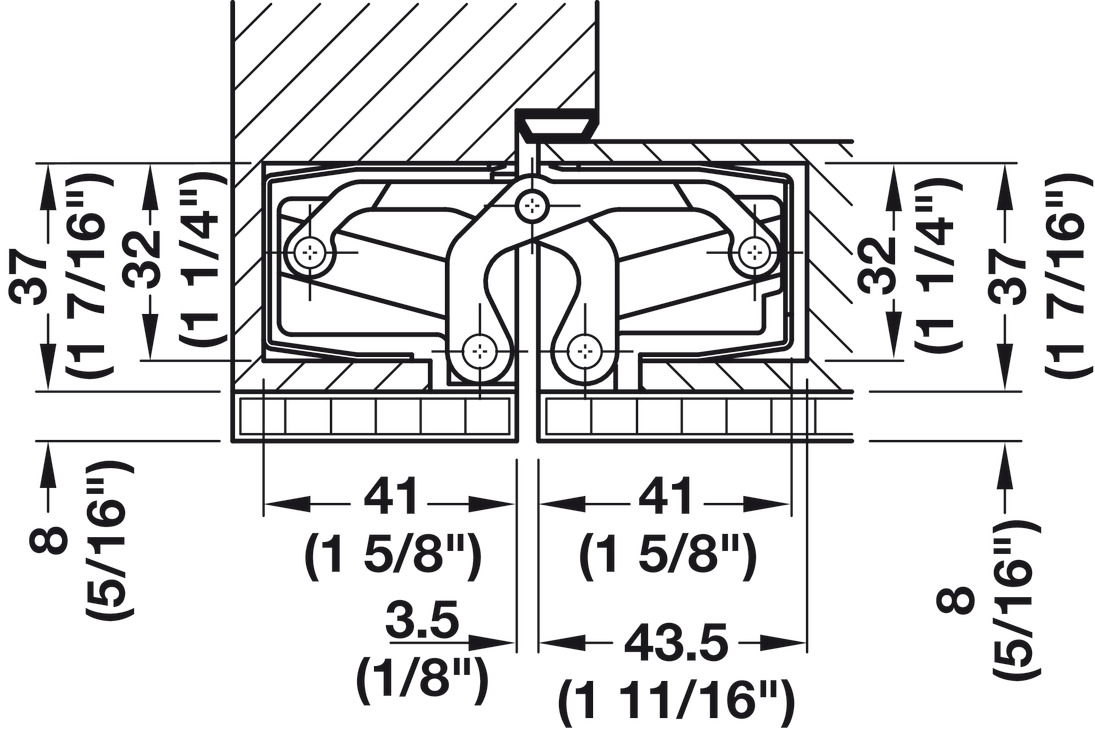

    - Area of application : Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16”) thick surface applied panelMaximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors

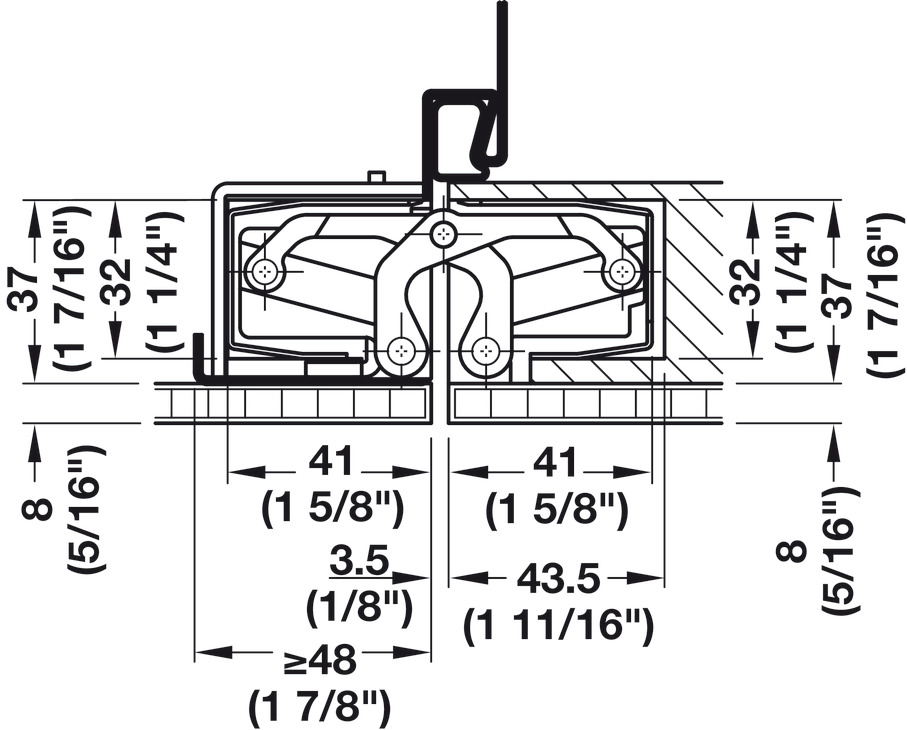

    - For frame type : Steel frame, Wooden frame, Aluminium frame

    - Max. door weight for 2 hinges : 160.00 kg

    - Opening angle : 180.00 °

    - Door thickness : ≥40 mm

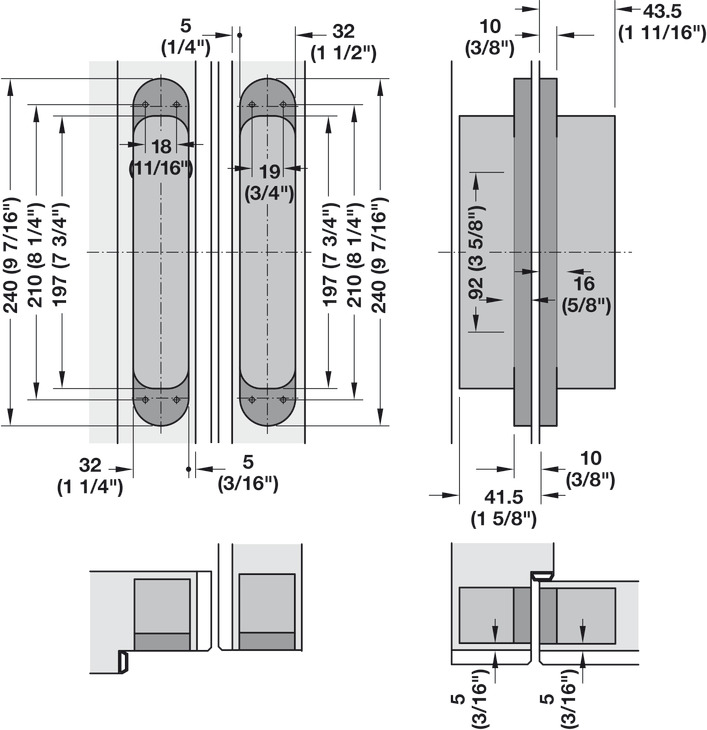

    - Router bit Diameter: : 24.00 mm

    - Router bit Diameter: : Bit: 15/16"#Guide: 1 3/16"

    - Thrust ring Diameter: : 30.00 mm

    - Adjustment facility : 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

    - Standard : Certified in compliance with EN 1935:2002

    - Grade : 4|7|7|1|1|0|1|14
  • Data Sheet

  • Product Resources

  • Specifications

  • Required Products & Optional Accessories

    Optional Accessories:

    • Mounting Plate, for Simonswerk TECTUS TE 240/340/526/540/640 3D FZ concealed mortice hinge
    • Receiving Elements, for Simonswerk TECTUS TE 240/340/525/526/540/541/640/645 3D (A8) SZ (SZ/1) concealed mortice hinge
