Hafele 927.91.636 Door Hinge, Startec, Concealed, Mortise Matt nickel
Product Information
Description
Manufacturer: Hafele
Item: 927.91.636

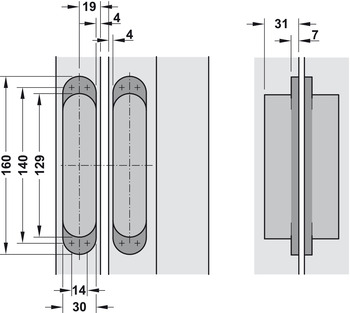

Product Title: Door Hinge, Startec®, Concealed, Mortise, 3D Adjustable, 3D adjustable, size 160 mm, Matt nickel
Category: Door Hinge, Startec®, Concealed, Mortise, 3D Adjustable, 3D adjustable, size 160 mm, Matt nickel
Item Details …
- Flange shape : rounded
- Flange width : 29.8 mm
- Color/finish : matt, nickel plated
- Material : Zinc alloy
- Flange height : 160 mm
- Door weight max. : 176 lbs with 2 door hinges; 220 lbs with 3 door hinges
- Door height min. : 82 11/16"
- For door width (inches) : ? 35 7/16"
- Door thickness min. : 1 1/4"
- Model series : K7080
- Area of application : For wooden frames, for flush wooden interior doors
- For door type : Wooden door leaf
- For frame type : Wooden frame
- Max. door weight for 2 hinges : 80.00 kg
- Max. door weight for 3 hinges : 100.00 kg
- Opening angle : 180.00 °
- Door height max. : 78 3/4"
- Door thickness : ?40 mm
- Adjustment facility : 3D, Side: -2?/?+3 mm, Height: ±3 mm, Closing pressure: ±1 mmData Sheet
