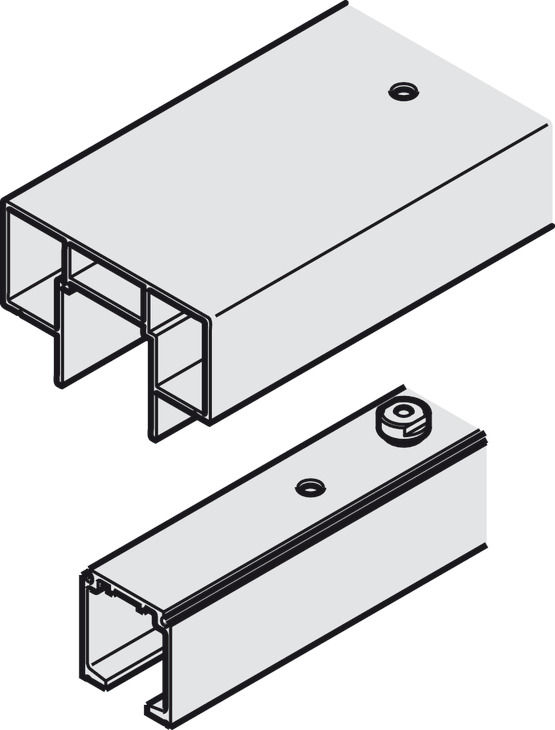

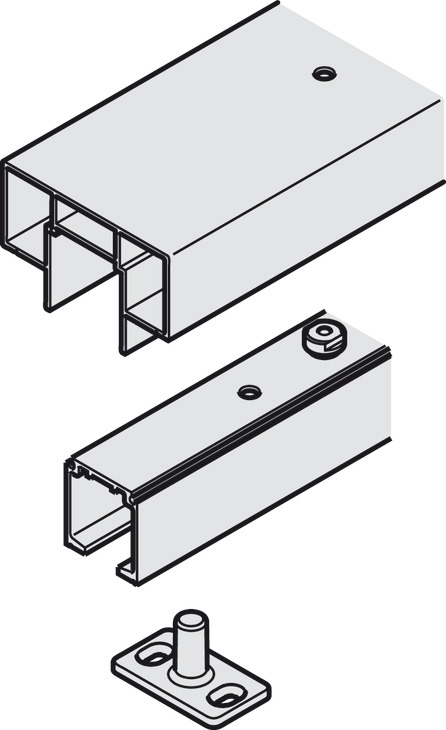

Hafele 940.43.282 Slido D-Line11 Track Set, includes 1 fixing track, 1 running track, 1 plastic lower guide, 3.0 meter, aluminum silver anodized

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.43.282

  Product Title: Track set, for Slido D-Line11 pocket door solution, for wooden and glass doors, for Häfele Slido D-Line11 50I / 80I / 120I and 50J / 80J / 120J sliding door fittings, Length 2000 mm

  Category: Track set, for Slido D-Line11 pocket door solution, for wooden and glass doors, for Häfele Slido D-Line11 50I / 80I / 120I and 50J / 80J / 120J sliding door fittings, Length 2000 mm

  Item Details …

  - Product type : Track set

  - Color/finish : Silver colored, anodized

  - Width : 36.00 mm

  - Area of application : For door weights 40–120 kg

  - Material : Aluminum

  - For door weight : 50?–?120 kg

  - For door material : Glass, Wood

  - Functionality : subsequent disassembly of the running track is possible without opening the wallRunning gear and soft and self closing mechanism can be removedStopper position in the wall pocket , readjustable

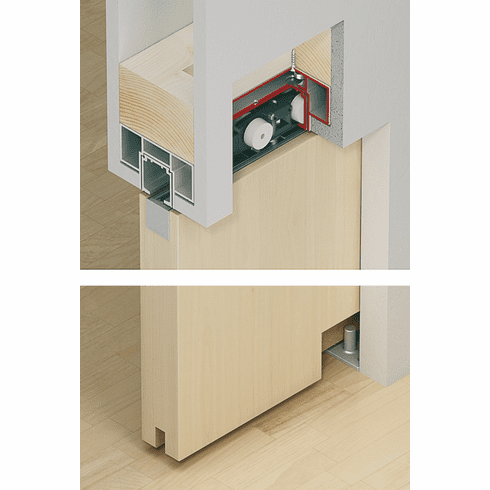

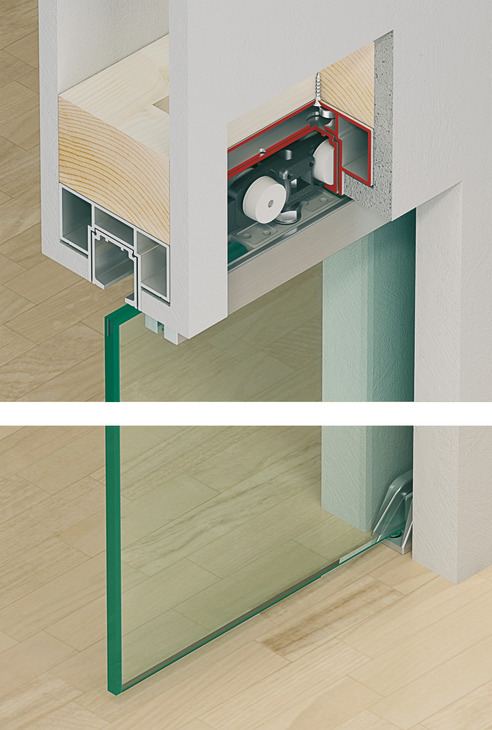

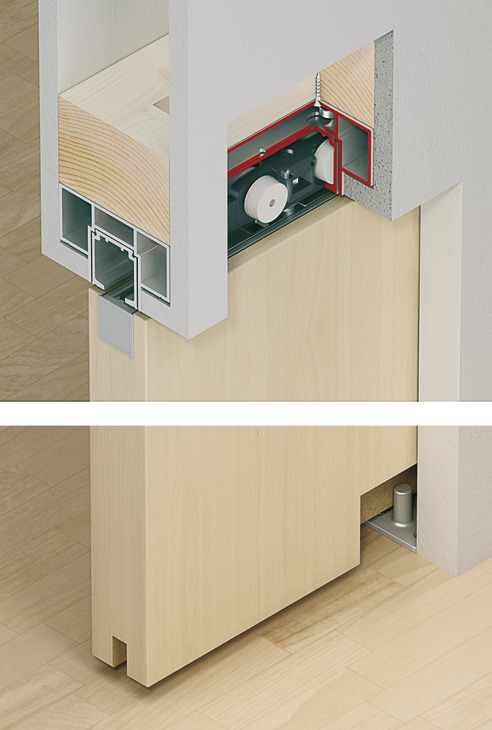

  - Installation : Wall pocket installation

  - Order reference

  - Glass height calculation

  - Slido Classic J: Height of finished floor to lower edge of track -10–13 mm

  - Slido Classic L: Height of finished floor to lower edge of track -10–42 mm


  Additional Information …

  Slido D-Line11 L and J can be combined with any track width.with track width of 75, 100 or 125 mm, the structural timber can be omitted and the fastening rail can be screwed directly to the wall cladding (depending on the cladding material).Not suitable for use with shock absorber with retaining spring.Only in combination with clear threshold floor guide.Adhere to dimension from door edge to middle of suspension point or pivot point! This is required with regard to swivelling the door into the wall pocket!

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Slido Classic pocket door solution

  HAWA Pocket Solutions Sell Sheet EN

  TCH_Architectural_Hardware_2022|Page 1.23



• Required Products & Optional Accessories

  Optional Accessories:



  • Floor Guide
  • Guide Track, Bottom
