Hafele 940.60.134 EKU Porta 60/HC Fitting Set, black (1 kit), 94060134, 940-60-134Zoom

Hafele 940.60.134 EKU Porta 60/HC Fitting Set, black

$155.63$194.54You Save: $38.91 (20%)
Item# Hafele-940.60.134
Availability: in stock (Qty 23, more available by ... 12/31/24)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 940.60.134

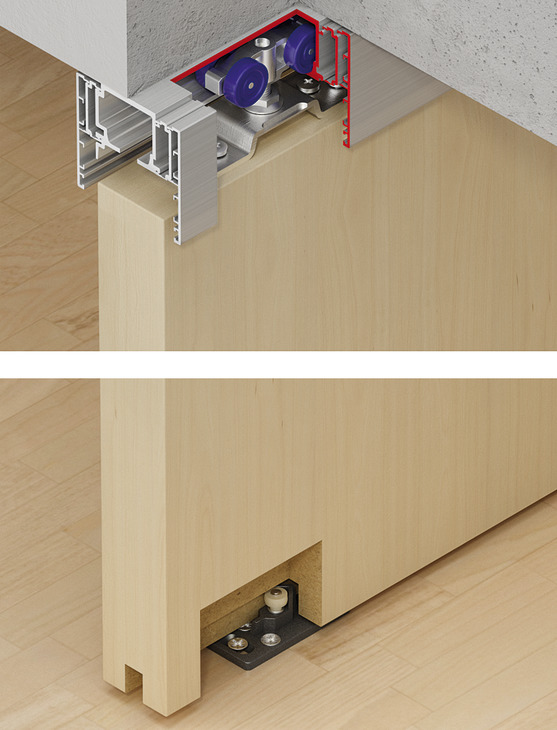

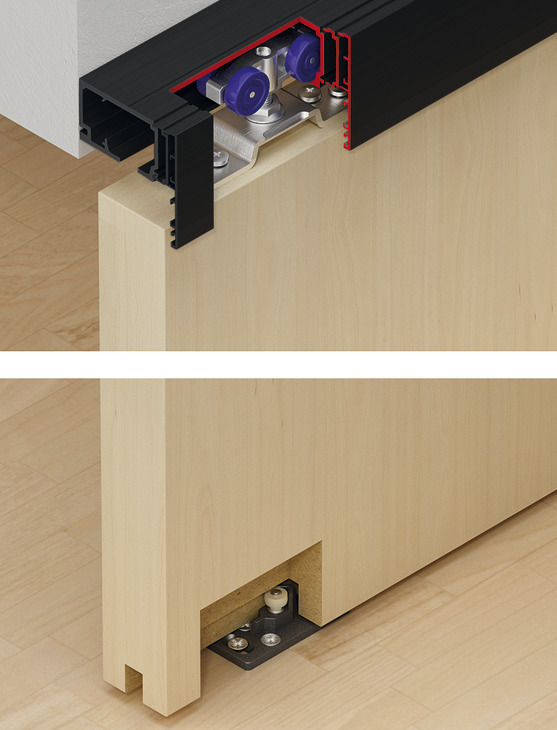

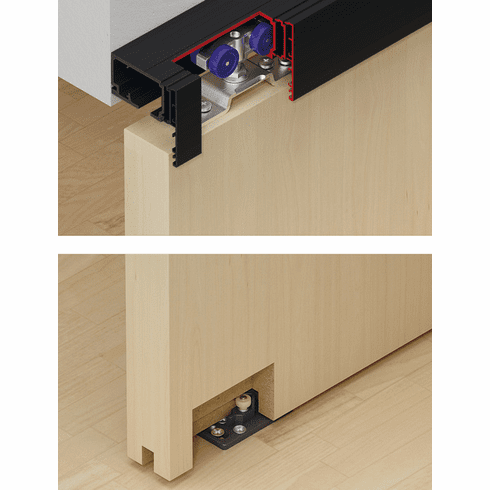

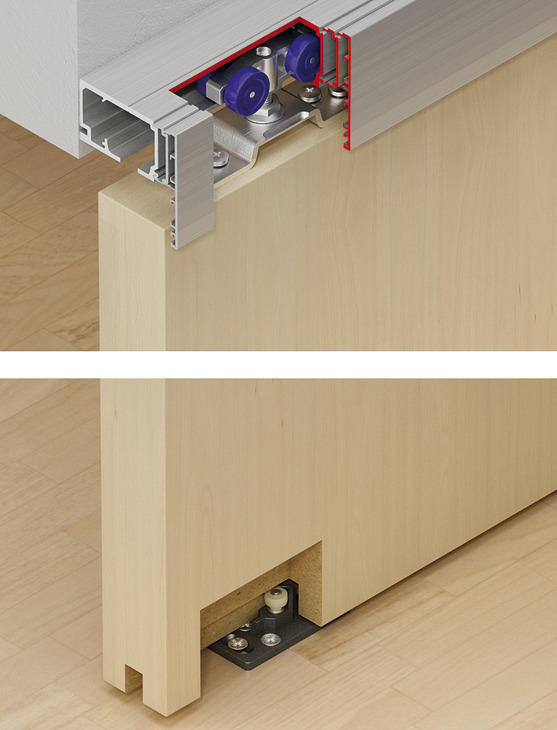

    Product Title: Sliding door fitting, Hawa Porta 60/100 HC Set, for 1 and 2-leaf wooden sliding doors, ceiling and wall installation, soft and self closing mechanism (optional), height adjustable doors, for door weights up to 60/100 kg, Door thickness 30-45 mm, Door weight ?60 kg, Black

    Category: Sliding door fitting, HAWA Porta 60/100 H/HC, set, for 1-leaf and 2-leaf wooden sliding doors, wall mounting, soft and self closing mechanism (optional), door height adjustable, for door weight up to 60/100 kg

    Item Details …

    -     Number of doors per system max. : 1 to 2

    - Number of doors : 1.00

    - For door material : wood

    - Soft closing mechanism : with soft closing mechanism (optional)

    - For door width : ?1,600 mm

    - Controller installation options : Wall mounting

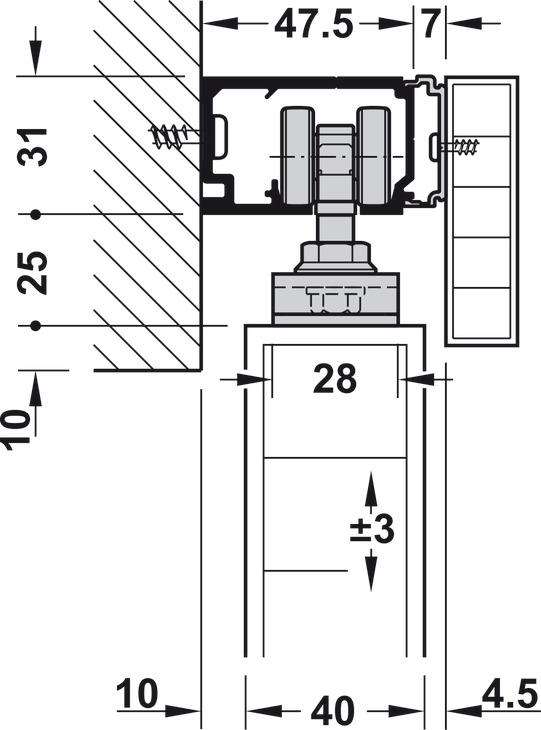

    - For door thickness : 28?–?40 mm

    - Adjustment facility : Height adjustment: ±3 mm

    - For door thickness min. :

    - Door width max. :

    - Area of application : for 1-leaf and 2-leaf sliding doors

    - For door height : ?2,700 mm

    - Running position : Top

    - Door processing : for screw fixing

    - Order reference

    - Please order 2 sets for 2-leaf sliding doors.

    - Supplied with:

    - 2 running gears with suspension screw and nut, M8

    - 2 support flanges

    - 2 track stopper with retaining spring

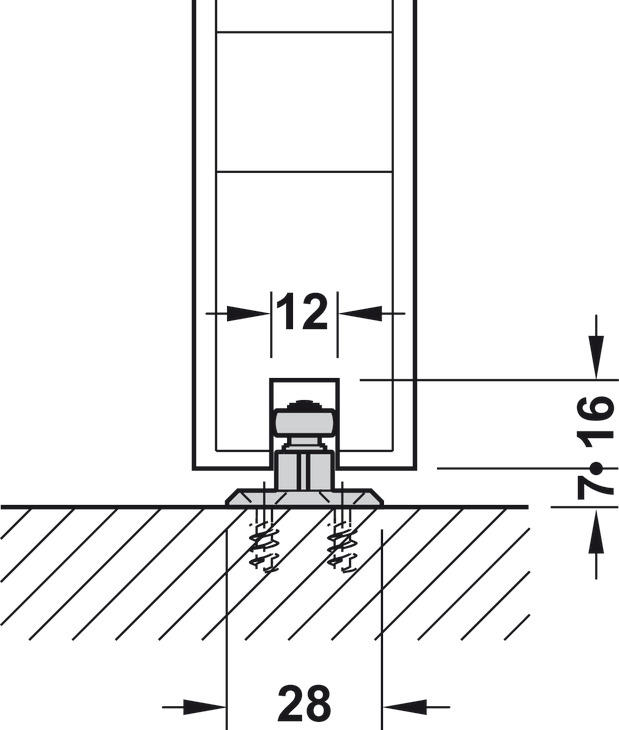

    - 1 floor guide, adjustable

    - 1 set of fixing screws


    Additional Information …

    Dormotion soft and self closing mechanism (optional)

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Single Running Track, Pre-Drilled, for Wall Mounting or Ceiling Installation, 39 x 41 mm (W x H) (choose one):
    • For Hawa, length: 2.5 m (8’ 2 7/16”), anodized
      For Hawa, length: 3.5 m (11’ 5 13/16”), anodized
      For Hawa, length: 6 m (19’ 8 1/4”), anodized      		941.00.253
      941.00.353
      941.00.603      		Click to order
      Click to order
      Click to order


    Dual Running Track, Aluminum, Anodized (choose one):
    • for Hawa Divido, Length: 2.5 m (8’ 2 7/16”)
      for Hawa Divido, Length: 3.5 m (11’ 5 13/16”)      		941.12.925
      941.12.935      		Click to order
      Click to order


    Triple Running Track, Pre-drilled, 111 x 31 mm (W x H) (choose one):


    Running track, Pre-drilled, 47.5 x 31 mm (W x H) (choose one):
    • for Hawa Porta, Divido, black anodized, length: 2500 mm
      for Hawa Porta, Divido, black anodized, length: 3500 mm
      for Hawa Porta, Divido, silver anodized, length: 2,500 mm
      for Hawa Porta, Divido, silver anodized, length: 3,500 mm
      for Hawa Porta, Divido, silver anodized, length: 6,000 mm      		940.60.601
      940.60.602
      940.60.825
      940.60.835
      940.60.860      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Upper Track, Pre-drilled, 30 x 31 mm (W x H) (choose one):
    • For Hawa, Length: 2 m (6’ 6 3/4”), mill finish
      For Hawa, Length: 2 m (6’ 6 3/4”), anodized finish
      For Hawa, Length: 2.5 m (8’ 2 7/16”), mill finsh
      For Hawa, Length: 2.5 m (8’ 2 7/16”), anodized finsh
      For Hawa, Length: 6 m (19’ 8 1/4”), mill finish
      For Hawa, Length: 6 m (19’ 8 1/4”), anodized finish      		941.00.200
      941.00.205
      941.00.250
      941.00.255
      941.00.600
      941.00.605      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Optional Accessories:

    • Spacer Profile, Pre-drilled, for wall mounting the combination track, 11 x 36 mm (W x H)
    • Sliding Door Hardware, Hawa Divido 100 H / Porta 60/100 H/HC -Synchro, set
    • Clip-in Skirt, For double running track, pre-drilled, 10 x 42 mm (W x H)

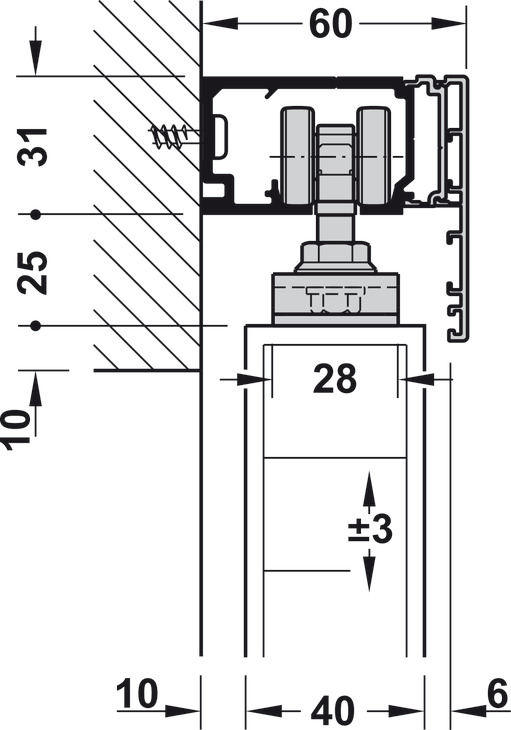

    • Clip-on Fascia, for universal running track, 7 x 60 mm (W x H)
    • Brush seal, Hawa Clipo 15 GPSK IF, Infront
    • End Piece, On one side, for wall mounting
    • Clip, for Wood and Aluminum Fascia, 97 x 29 x 9.5 mm
    • Bottom guide, adjustable
    • End cap, Aluminum
    • Safety clip set, For wooden and aluminum panels, prevents the track from being bent apart
    • End cap, Plastic
    • Bottom guide, With wall mounting bracket
    • Upper Track Cleaning Tool, For Hawa Porta, Divido
    • Supplementary Sets, For Hawa Divido 100 H/100 HM, stacking
    • Sealing Profile, Drilled
    • Spring Loaded Running Gear, with Anti-derail Device, Single Wheel
