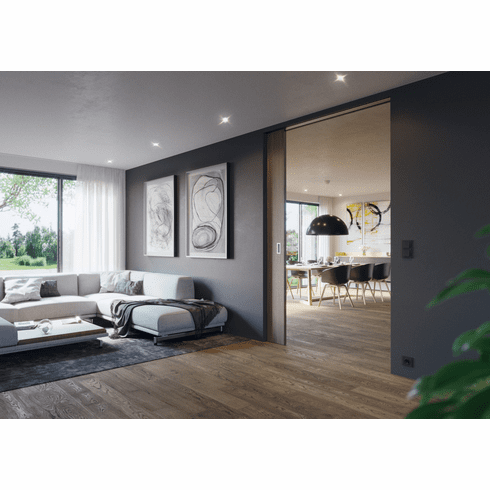

Hafele 940.80.120 Sliding door fitting, Hawa Junior 80/B-Pocket, set for 1-leaf wooden sliding doors, for door weight up to 80 kg, Without running track, with long hanger bolt (+20 mm)

Product Information

• Description

  Hafele 940.80.120 Sliding door fitting, Hawa Junior 80/B-Pocket, set
  for 1-leaf wooden sliding doors, for door weight up to 80 kg, Without running track, with long hanger bolt (+20 mm)

  Additional items required to complete installation:
  Upper Track, pre-drilled, door weight up to 80 kg
  Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in


  Model : Junior 80/B-Pocket

  Door weight : ‰¤80 kg

  Version : with long hanger bolt (+20 mm)

  Application : For 1-leaf sliding doors for wall pocket installation

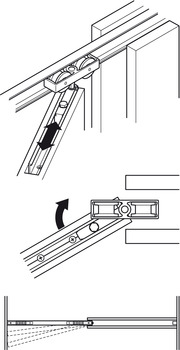

  Adjustment : Door height adjustable +3 mm, with integrated anti-twist protection
  horizontal adjusting distance in lengthways direction in bayonet mount ±8 mm

  Door weight : ‰¤80 kg

  Door width : 700-1,500 mm

  Door thickness : ‰¥30 mm

  Features : Min. installation height

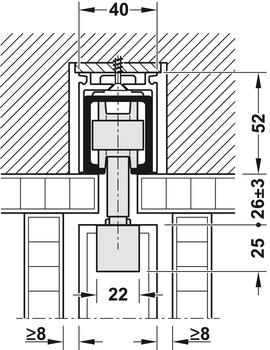

  Installation : Suspension with recessed support profile and integrated suspension carriage

  Functionality : Running track can be removed after installation without wall opening, running gear and soft and self closing mechanism can be removed, stopper position inside wall pocket can be adjusted after installation

  Standard : Certified in compliance with EN 1527:1998

  Class :

  -

  6

  2

  0

  -

  0

  -

  1

  3





  Supplied with :

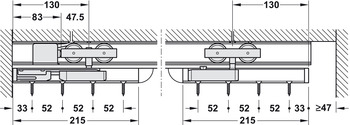

  2 running gears (2 rollers) with support profile, suspension carriage and long hanger bolt M10 (+20 mm)

  1 track buffer with retaining spring

  1 wall buffer

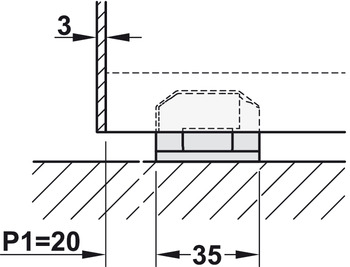

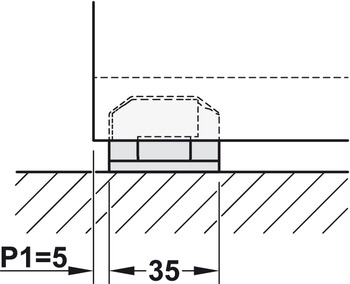

  1 floor guide with zero clearance

  1 spanner for suspension carriage



  Optional items:
  SoftMove 80 soft and self closing mechanism
  Track Stopper, with Adjustable Retention Spring
