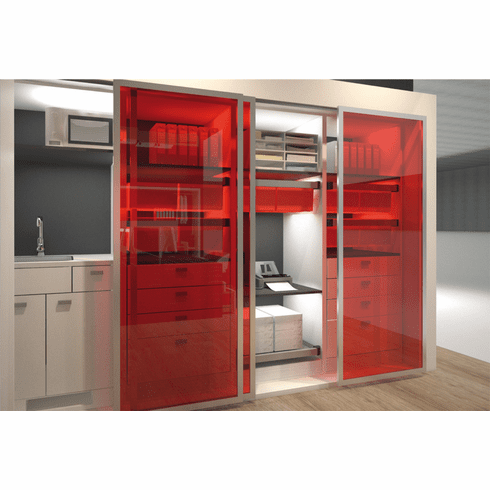

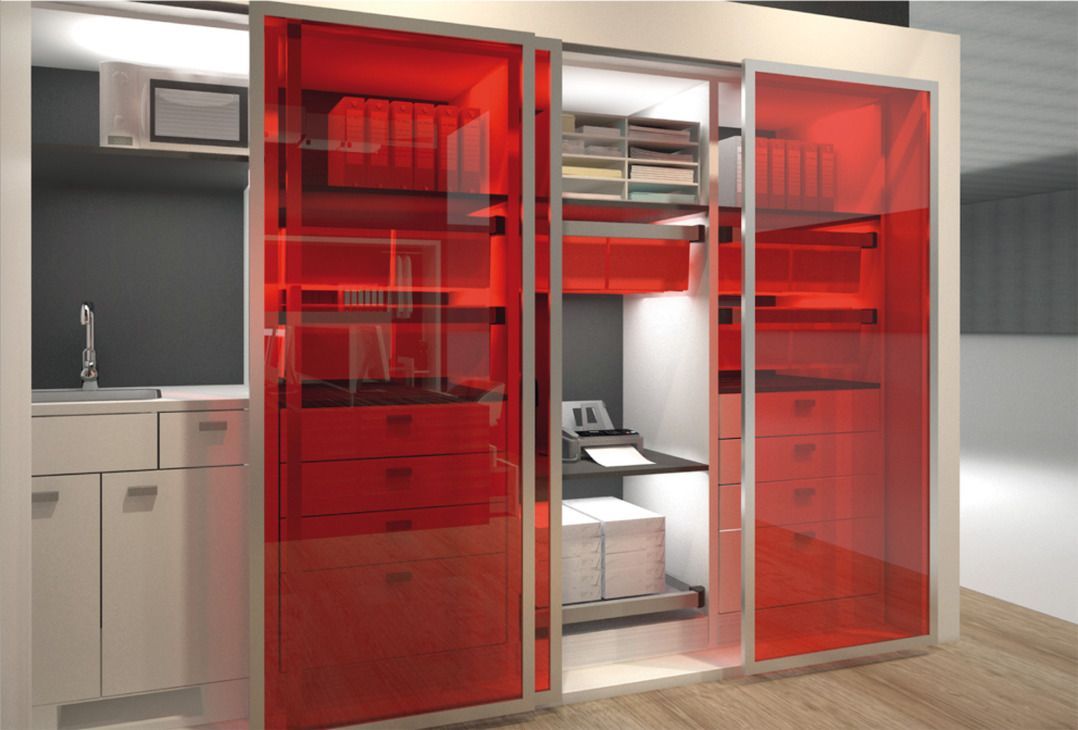

Hafele 940.82.140 Slido Silent Aluflex 80, top running for sliding doors with frame, floor to ceiling, ceiling installation and wall mounting, height adjustable, without soft and self closing mechanism, door weight 80 kg

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.82.140

  Product Title: Sliding door fitting, Häfele Slido R-Aluflex 80A, top running, for sliding doors with frame, floor to ceiling, ceiling installation and wall mounting, height adjustable, without soft and self closing mechanism, door weight 80 kg

  Category: Sliding door fitting, Häfele Slido R-Aluflex 80A, top running, for sliding doors with frame, floor to ceiling, ceiling installation and wall mounting, height adjustable

  Item Details …

  - A special service for you is our Service+ Customised – customised configuration of Silent Aluflex systems.

  - Model : 80-L

  - For door weight : ?80 kg

  - For door height : ?2,500 mm

  - Area of application : Aluminium frame doors for wooden or glass/mirror panels

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - Material/finish : Running gear: SteelGuide rollers: PlasticAxis: Steel

  - Height adjustment : ±3 mm

  - Further adjustment facility : ±3 mm on running gear

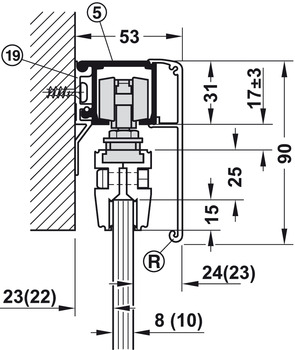

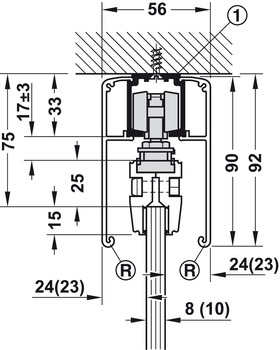

  - Controller installation options : Ceiling installation, Wall mounting

  - Installation : Positive-fit clamp connection (without tools)

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.


  Additional Information …

  Wooden and glass panels possible.PETG and acrylic glass panels cannot be used due to the torsional stiffness of the material.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions



• Specifications

  Hafele 940.82.140, 940-82-140, 94082140, 940.82


  Specifications/Hafele Catalog - Page# AH1.167: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding Door Hardware Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Running Track, Pre-drilled, W x H: 31 x 33 mm (choose one):


  • For Slido D-Line11, Mill Finish, Length: 6’ 6 3/4” (2 m) For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m) For Slido D-Line11, Mill Finsh, Length: 9’ 10 1/8” (3 m ) For Slido D-Line11, Clear Anodized Finish, Length: 9' 10 1/8" (3 m) For Slido D-Line11, Mill Finish, Length: (19’ 8 1/4”) 6 m For Slido D-Line11, Clear Anodized Finish, Length: 19' 8 1/4" (6 m)

    940.43.921 940.43.922 940.43.931 940.43.932 940.43.961 940.43.962

    Click to order Click to order Click to order Click to order Click to order Click to order



  Mounting rail, pre-drilled, width 8 mm (choose one):


  • For Slido D-Line11, aluminum, silver colored anodized, length: 2,000 mm For Slido D-Line11, aluminum, silver colored anodized, length: 3,000 mm For Slido D-Line11, aluminum, silver colored anodized, length: 6,000 mm

    941.25.820 941.25.830 941.25.860

    Click to order Click to order Click to order



  Optional Accessories:



  • Clip-on panel, for running track
  • End cap set, Height 68 mm, for running track with panel 12.5 x 68 mm (W x H)
  • Safety Pin and Safety Screw Set, For Running Track and Mounting Rail
