Hafele 941.00.111 Sliding Door Fitting, EKU Porta 60/100 H/HC, set for 1-leaf wooden sliding doors, door weight not more than (220 lbs) 100 kg, without running track
Product Information
Description
Hafele 941.00.111 Sliding Door Fitting, EKU Porta 60/100 H/HC, set
for 1-leaf wooden sliding doors, door weight ‰¤ (220 lbs) 100 kg, without running track
Additional items required to complete installation:

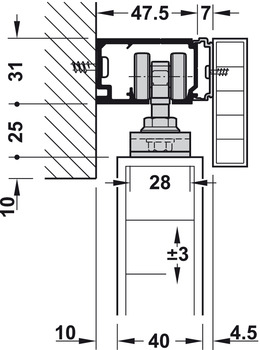

Running track, pre-drilled, 30 x 31 mm (W x H)
Single Running Track, Pre-Drilled, for Wall Mounting or Ceiling Installation, 39 x 41 mm (W x H)
Dual Running Track, Aluminum, Anodized
Triple Running Track, pre-drilled, 111 x 31 mm (W x H)Version : Without running track Suitable for : For wooden doors Application : For 1 or 2 sliding doors; optional soft and self close mechanism Door weight : ‰¤ (220 lbs) 100 kg Door width : ‰¤ (5' 3") 1,600 mm Door height : ‰¤ (8' 10 5/16") 2,700 mm Door thickness : Min: (1 1/8") 28 mm Adjustment : +/- (1/8") 3 Installation : Wall mounting and ceiling installation Standard : Certified in compliance with DIN 1527:1998 Class : - 6 2 0 - 0 - 1 3 Supplied with : 2 Running gears

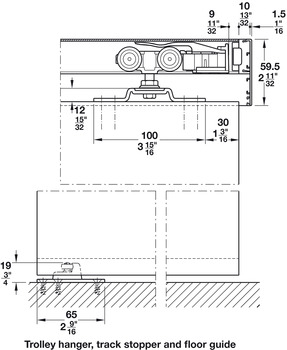

2 support flanges
2 track stoppers
1 floor guide
1 set of fixing screws
Optional items:
Stacking
Mortice locks
Door seals for sliding doors
Soft and self closing mechanism

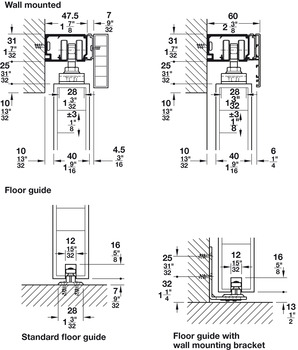

Floor guide
Floor guide

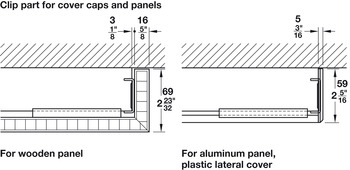

Clip-on Fascia
Clip, for Wood Fascia, 97 x 29 x 9.5 mm

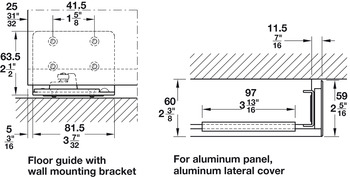

Floor guide, Adjustable
Floor guide, With wall mounting bracketSpecifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.28-1.29.pdf
Hafele 941.00.111 EKU Divido 100 H Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,50-500
- Brand: Hafele
- Part#: 941.00.111
- Condition: new
