Hafele 941.25.046 Slido D-Line11 120I Fitting Set, with 1 shock absorber and 1 soft closing mechanism (1 kit), 94125046, 941-25-046Zoom

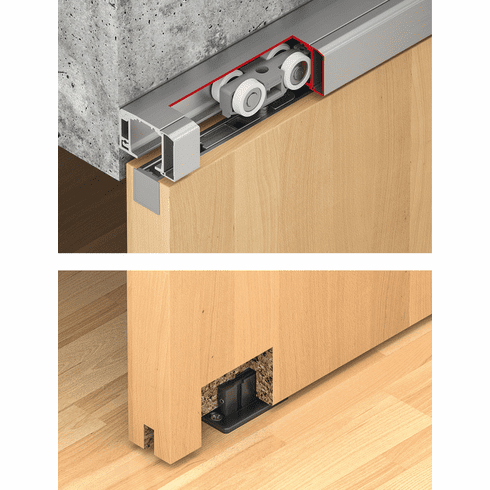

Hafele 941.25.046 Slido D-Line11 120I Fitting Set, with 1 shock absorber and 1 soft closing mechanism

$276.14$345.18You Save: $69.04 (20%)
Item# Hafele-941-25-046
Availability: limited availability (4 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.25.046

    Product Title: Sliding Door Hardware, Slido D-Line11 120I, set without running track, for 1-leaf wooden sliding doors, ceiling and wall installation, height adjustable doors, for door weights up to 120 kg, With soft and self closing mechanism on one side, Door width ?600 mm

    Category: Sliding Door Hardware, Häfele Slido D-Line11 50I / 80I / 120I, set without running track, for 1-leaf and 2-leaf wooden sliding doors, ceiling installation and wall mounting, door height adjustable

    Item Details …

    -     Soft and self closing mechanism:

    - low opening force – easy and convenient operation

    - tested with increased closing speed up to 0.5 m/s

    - Can be retrofitted or replaced at any time

    - Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N

    - Shock absorber:

    - Closing speed with shock absorber tested up to 0.4 m/s

    - Number of doors per system max. : 1 to 2

    - For door material : wood

    - Controller installation options : Ceiling installation, Wall mounting, Wall pocket solution

    - Adjustment facility : Height adjustment: ±3 mm, Door height adjustable ±3 mm

    - Area of application : for 1-leaf and 2-leaf sliding doors

    - Note on door weight : per door

    - Running position : Top

    - Adjustment facility : height adjustment

    - Installation : Suspension with integrated support flange

    - Door processing : With recess

    - Order reference

    - Please order track, panels and accessories separately.

    - Order 2 sets for 2-leaf sliding doors.

    - Please order adjustment aid for adjusting the running gears (height and position) separately.

    - Supplied with:

    - 2 running gears with support flange (1 with soft and self closing mechanism)

    - 2 support profiles incl. cover cap

    - 1 clear threshold floor guide

    - 1 shock absorber with retaining spring

    - 1 release device with stopper for soft and self closing mechanism


    Additional Information …

    Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.If required, the sets can be retrofitted without or with soft and self closing mechanism on one side, with soft and self closing mechanism or shock absorber.



    Please note when using the shock absorber with retaining spring: The door may not close completely if the closing speed is too low, it it is too high, the door may bounce back slightly.Sets without or with soft and self closing mechanism on one side can be retroffitted with soft and self closing mechanism or shock absorber, if required.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Single Running Track, Pre-drilled, W x H: 31 x 33 mm (choose one):
    • For Slido D-Line11, Mill Finish, Length: 6’ 6 3/4” (2 m)
      For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m)
      For Slido D-Line11, Mill Finsh, Length: 9’ 10 1/8” (3 m )
      For Slido D-Line11, Clear Anodized Finish, Length: 9' 10 1/8" (3 m)
      For Slido D-Line11, Mill Finish, Length: (19’ 8 1/4”) 6 m
      For Slido D-Line11, Clear Anodized Finish, Length: 19' 8 1/4" (6 m)      		940.43.921
      940.43.922
      940.43.931
      940.43.932
      940.43.961
      940.43.962      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Single Upper Track, Wall mounted (choose one):
    • For Slido D-Line11, Aluminum, clear anodized, length 2000 mm
      For Slido D-Line11, Aluminum, clear anodized, length 3000 mm
      For Slido D-Line11, Aluminum, clear anodized, length 6000 mm      		941.25.602
      941.25.603
      941.25.606      		Click to order
      Click to order
      Click to order


    Double running track, Pre-drilled, W x H: 70 x 33 mm (choose one):
    • For Slido D-Line11, Aluminum, silver colored anodized, length: 2,000 mm
      For Slido D-Line11, Aluminum, silver colored anodized, length: 3,000 mm
      For Slido D-Line11, Aluminum, silver colored anodized, length: 6,000 mm      		941.02.920
      941.02.930
      941.02.960      		Click to order
      Click to order
      Click to order


    Double Running Track, Pre-Drilled, W x H: 81 x 33 mm (choose one):
    • For Slido D-Line11, clear anodized, length: 2,000 mm
      For Slido D-Line11, unfinished; length: 2,000 mm
      For Slido D-Line11, clear anodized, length: 3,000 mm
      For Slido D-Line11, unfinished; length: 3,000 mm
      For Slido D-Line11, clear anodized, length: 6,000 mm      		941.02.820
      941.02.821
      941.02.830
      941.02.831
      941.02.860      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Guide Track, Bottom (choose one):
    • for Häfele Slido D-Line11, Length 1000 mm (1 m)
      for Häfele Slido D-Line11, Length 1,500 mm (1.5m)
      for Häfele Slido D-Line11, Length 2000 mm (2m)      		940.42.050
      940.42.051
      940.42.052      		Click to order
      Click to order
      Click to order


    Optional Accessories:

    • Soft and Self Closing Mechanism, Slido Classic
    • Shock absorber, Slido Classic
    • Mounting rail, Pre-drilled, width 19 mm
    • Mounting rail, pre-drilled, width 8 mm
    • Mounting bracket, with screw and nut
    • Safety Pin and Safety Screw Set, For Running Track and Mounting Rail
    • Adjustment aid, for adjustment of running gears, with angled hex key
    • Clip-on panel, For running track, for integration in suspended ceilings
    • Clip-on panel, For running track, height 33 mm
    • End cap set, for running track
    • End cap set, width 40 mm, for running track with mounting rail
    • End cap set, width 51 mm, for running track with mounting rail
    • Floor Guide, Slido Classic 40-P-120-P
    • Track set, for Slido D-Line11 pocket door solution
    • Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I
    • Sealing Profile, Drilled
    • Fitting set, Slido D-Line11 Stacking Additional Set for 50P–120P, 50C–120C and 50I–120I

  • Brand PDF Catalogs
