Hafele 941.60.006 Hawa Junior 160 A Fitting Set, with 2 track stoppers

Product Information

• Description

  Manufacturer: Hafele
  Item: 941.60.006

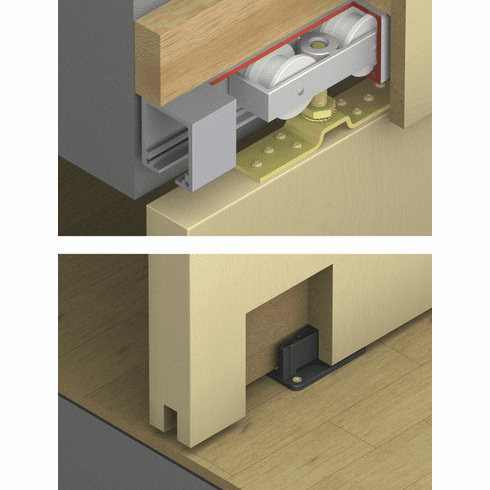

  Product Title: Sliding Door Hardware, Top Hung System, Hawa Junior 160/A, With 1 track buffer/1 wall buffer

  Category: Sliding Door Hardware, Top Hung System, Hawa Junior 160/A, With 1 track buffer/1 wall buffer

  Item Details …

  - Smooth quiet operation

  - Outstanding durability

  - Rattle-free bottom guide

  - Simple installation

  - Steel suspension bracket

  - Vertically and laterally adjustable

  - Door stop with adjustable retention spring

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 160 A

  - For door weight : ?160 kg

  - For door width : ?3,000 mm

  - Material/finish : Zinc alloy, Aluminium, Plastic, Rubber

  - Controller installation options : Ceiling installation, Wall mounting

  - For door thickness : 35?–?80 mm

  - Adjustment facility : Track buffer with adjustable retaining spring

  - For door thickness min. : 1 3/8"

  - Door weight max. : 352 lbs

  - Load bearing capacity : 352 lbs.

  - Area of application : For 1-leaf and 2-leaf sliding wood doors

  - For door height : ?4,000 mm

  - Running position : Top

  - Adjustment facility : side adjustment

  - Installation : Suspension with suspension bar

  - Door processing : for screw fixing

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|3|-|1|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

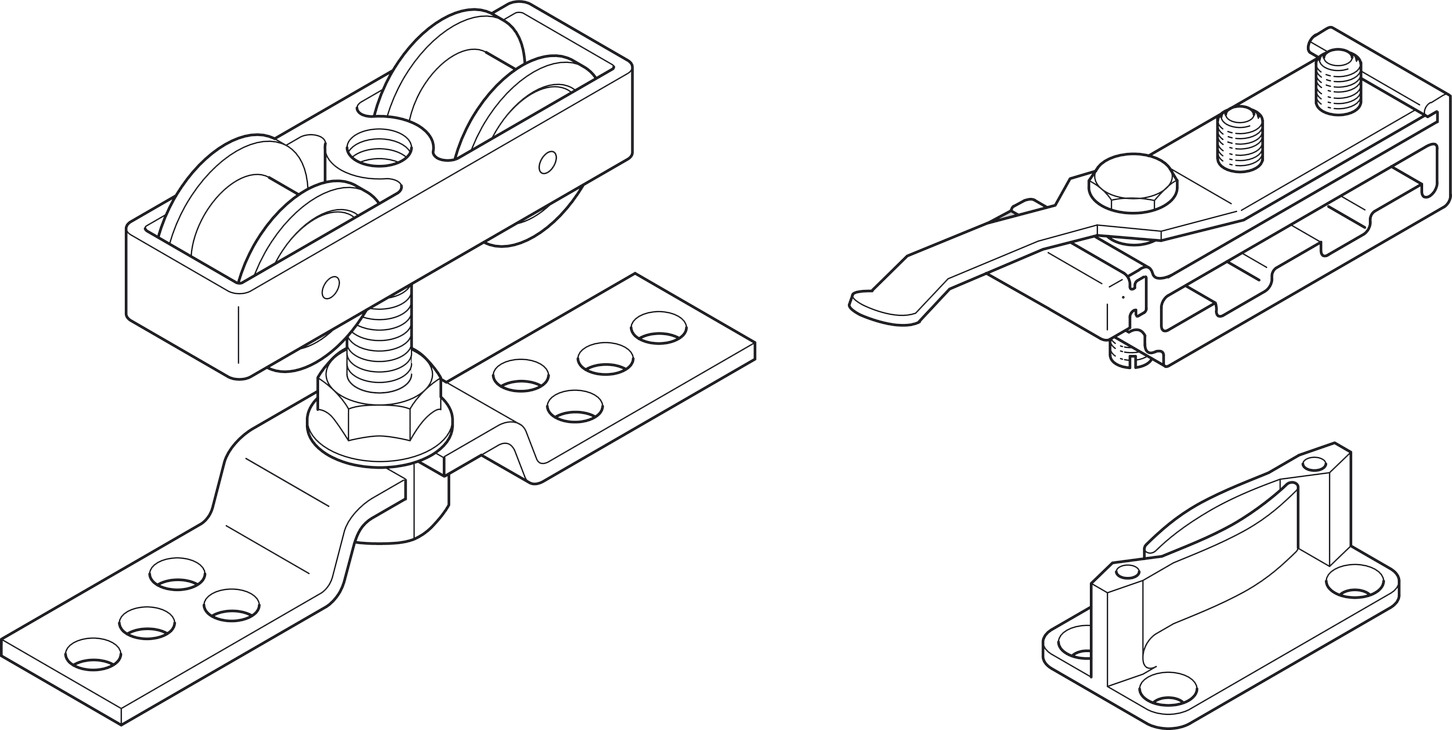

  - Supplied with:

  - 2 running gears

  - 2 support flanges with hanger bolt and nut, M14

  - 2 track buffer with retaining spring

  - 1 clear threshold floor guide


  Additional Information …

  For 2 bi-parting and bypassing sliding doors please order 2 sets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.129



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled, Aluminum (choose one):


  • For Hawa Junior, Length: 3 m (9’ 10 1/8”) For Hawa Junior, Length: 4 m (13’ 1 1/2”) For Hawa Junior, Length: 6 m (19’ 8 1/4”)

    941.60.301 941.60.401 941.60.601

    Click to order Click to order Click to order



  Guide Rail, Plastic, 3 m (9’ 10 1/8”) (choose one):


  • for Hawa Junior, Silenta, plastic, black, length 3,000 mm

    941.61.130

    Click to order



  Optional Accessories:



  • Connecting Pin, Set for Upper Track
  • Track Stopper, with Adjustable Retention Spring
  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
