Hafele 941.62.018 Slido D-Line11 160P Fitting Set, with 2 soft closing mechanisms (1 kit), 94162018, 941-62-018Zoom

Hafele 941.62.018 Slido D-Line11 160P Fitting Set, with 2 soft closing mechanisms

$296.30$370.38You Save: $74.08 (20%)
Item# Hafele-941-62-018
Availability: in stock (48 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 941.62.018

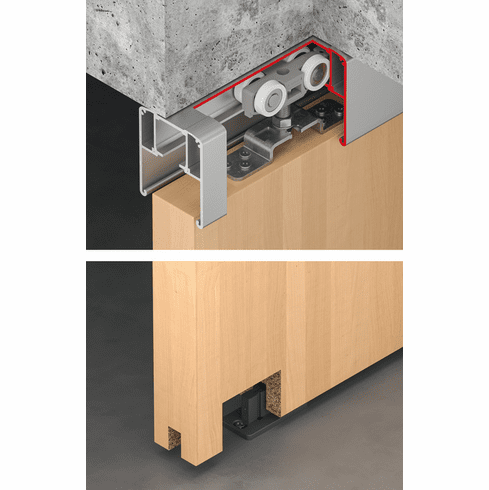

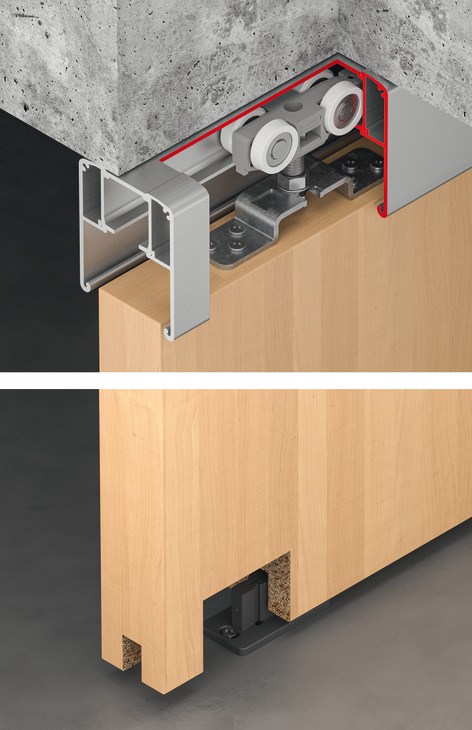

    Product Title: Sliding Door Hardware, Slido D-Line11 160P, set, for 1-leaf and 2-leaf wooden sliding doors, ceiling and wall mounting, door height adjustable, for door weight up to 160 kg, with soft and self closing mechanism on both sides, door weight 160 kg

    Category: Sliding Door Hardware, Slido D-Line11 160P, set, for 1-leaf and 2-leaf wooden sliding doors, ceiling and wall mounting, door height adjustable, for door weight up to 160 kg, with soft and self closing mechanism on both sides, door weight 160 kg

    Item Details …

    -     Soft and self closing mechanism:

    - low opening force – easy and convenient operation

    - tested with increased closing speed up to 0.4 m/s

    - Number of doors per system max. : 1 to 2

    - Number of doors : 1.00

    - For door material : wood

    - Model : 160P

    - Version : With Soft Close on one side

    - Soft closing mechanism : with soft and self closing mechanism on both sides

    - Running gear version : Top rolling system With soft close on both side

    - For door weight : ?160 kg

    - For door width : ?868 mm

    - Running track length : 3,000.00 mm

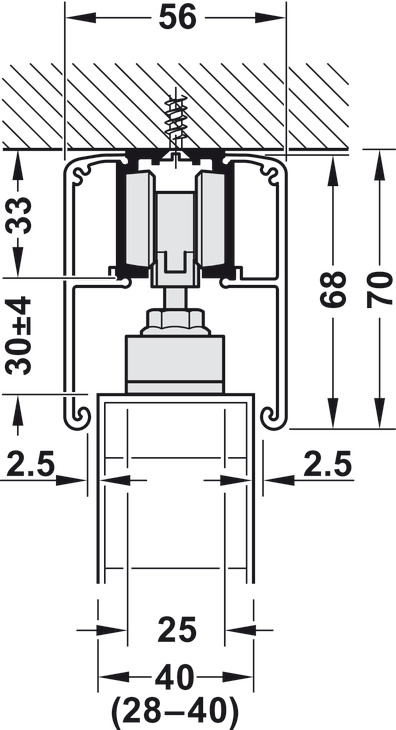

    - Controller installation options : Ceiling installation, Wall mounting

    - Adjustment facility : Height: (3/16") +/-5

    - Area of application : For 1-leaf and 2-leaf sliding doors

    - Note on door weight : per door

    - Running position : Top

    - Adjustment facility : height adjustment

    - Installation : Suspension with screwed on support flange

    - Door processing : With recess

    - Order reference

    - Please order track, panels and accessories separately.

    - Supplied with:

    - 2 running gears with soft and self closing mechanism

    - 1 clear threshold floor guide

    - 2 release device with stopper for soft and self closing mechanism


    Additional Information …

    No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).



    End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Single Running Track, Pre-drilled, W x H: 31 x 33 mm (choose one):
    • For Slido D-Line11, Mill Finish, Length: 6’ 6 3/4” (2 m)
      For Slido D-Line11, Clear Anodized Finish, Length: 6' 6 3/4" (2 m)
      For Slido D-Line11, Mill Finsh, Length: 9’ 10 1/8” (3 m )
      For Slido D-Line11, Clear Anodized Finish, Length: 9' 10 1/8" (3 m)
      For Slido D-Line11, Mill Finish, Length: (19’ 8 1/4”) 6 m
      For Slido D-Line11, Clear Anodized Finish, Length: 19' 8 1/4" (6 m)      		940.43.921
      940.43.922
      940.43.931
      940.43.932
      940.43.961
      940.43.962      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Double Running Track, Pre-Drilled, W x H: 81 x 33 mm (choose one):
    • For Slido D-Line11, clear anodized, length: 2,000 mm
      For Slido D-Line11, unfinished; length: 2,000 mm
      For Slido D-Line11, clear anodized, length: 3,000 mm
      For Slido D-Line11, unfinished; length: 3,000 mm
      For Slido D-Line11, clear anodized, length: 6,000 mm      		941.02.820
      941.02.821
      941.02.830
      941.02.831
      941.02.860      		Click to order
      Click to order
      Click to order
      Click to order
      Click to order


    Guide Track, Bottom (choose one):
    • for Häfele Slido D-Line11, Length 1000 mm (1 m)
      for Häfele Slido D-Line11, Length 1,500 mm (1.5m)
      for Häfele Slido D-Line11, Length 2000 mm (2m)      		940.42.050
      940.42.051
      940.42.052      		Click to order
      Click to order
      Click to order


    Floor Guide, Slido Classic 40-P-120-P (choose one):


    Optional Accessories:

    • Clip-on panel, for running track
    • Sliding door fitting, Slido D-Line11 160P Set
    • Clip-on panel, for running track
    • End cap set, Height 68 mm, for running track with panel 12.5 x 68 mm (W x H)
    • End Cap Set, for Häfele Slido D-Line11, height 68 mm
    • Mounting bracket, for Slido D-Line11
    • Bar Bolt Lock, Hawa Doorfix
    • Upper Track Cleaning Tool, For Hawa Porta, Divido
    • Sealing Profile, Drilled

  • Brand PDF Catalogs

Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
