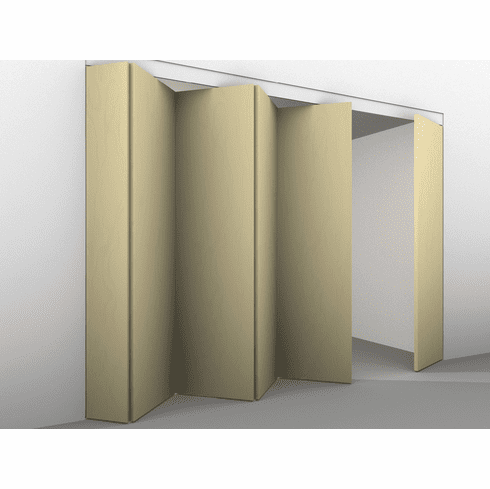

Hafele 943.27.100 Folding wall fitting, Hawa Centerfold 80/H Concertina wall and access door fitting for wooden folding sliding doors, height adjustable, for door weights up to 80 kg, for door widths 500-900 mm, Basic Set with Lower Pivot

Product Information

• Description

  Hafele 943.27.100 Folding wall fitting, Hawa Centerfold 80/H
  Concertina wall and access door fitting for wooden folding sliding doors, height adjustable, for door weights up to 80 kg, for door widths 500-900 mm, Basic Set with Lower Pivot

  Additional items required to complete installation:
  Upper Track , Pre-drilled


  Load bearing capacity : For Panel: (176 lbs.) 80 kg

  Adjustment : Height adjustable � 3 mm (�1/8��)

  Features : Hinge with heavy duty bearings
  without bottom guide track

  Door width : 500-900 mm

  Door thickness : (1 3/8 - 1 3/4") 35 - 45 mm

  Width : Panel: (19 11/16��) 500 mm - (35 7/16��) 900 mm



  Supplied with :

  1 top pivot bearing

  1 folding/access door catch, adjustable

  1 running gear. 4 rollers, with support carriage and screw M10

  3 support profiles, pre-drilled (2 with length of 208 mm and 1 with length of 550 mm)

  1 pressure bearing sleeve with follower

  3 cover caps for support profile

  1 height adjustment spanner

  2 spanners for suspension carriage



  Optional items:
  folding wall fitting, Hawa Variofold 80/H for Pivot Doors
  Doorfix espagnolette lock
  Heavy Duty Ball Bearing Hinge
  Door Seal, For Hawa Variofold and Centerfold 80/H


• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.161-1.163.pdf

  Hafele 943.27.100 Fitting Set for Centerfold 80/H
