Hafele 943.29.012 Fitting Set Variofold 80/H (1 kit), 94329012, 943-29-012Zoom

Hafele 943.29.012 Folding wall fitting, Hawa Variofold 80/H Additional Set with Guide Channel

$1,453.74$1,817.18You Save: $363.44 (20%)
Item# Hafele-943-29-012
Availability: limited availability (5 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 943.29.012

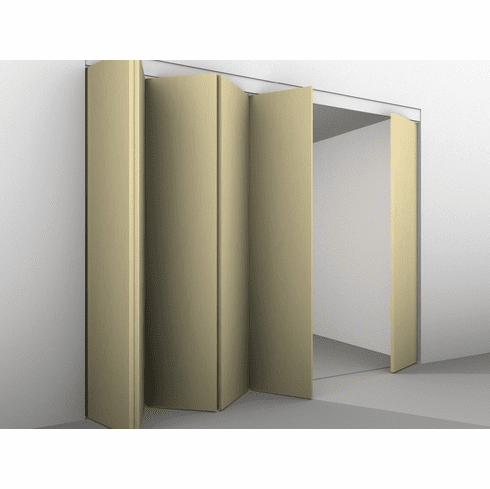

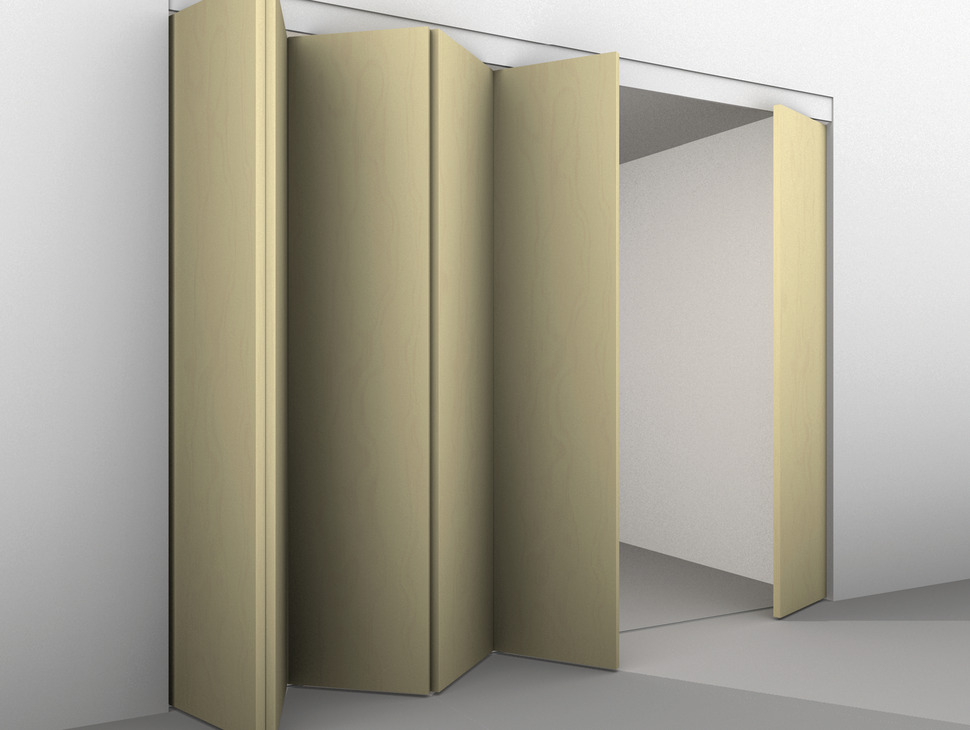

    Product Title: Sliding door fitting, Hawa Variofold 80 H, for wooden folding sliding doors, for door weights up to 80 kg, for door widths 500-900 mm, with height adjustment, Additional Set with Guide Channel

    Category: Sliding door fitting, Hawa Variofold 80 H, for wooden folding sliding doors, for door weights up to 80 kg, for door widths 500-900 mm, with height adjustment

    Item Details …

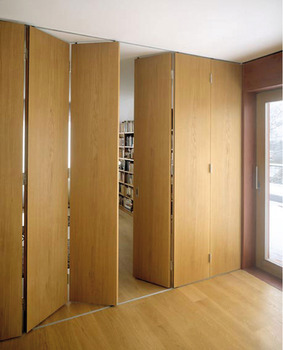

    -     Folding/sliding hardware for wall partitions

    - For 2 – 7 folding panels

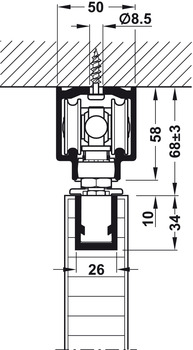

    - Upper track made out of anodized aluminum

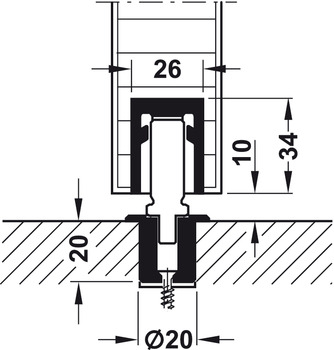

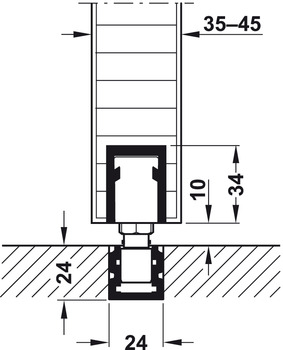

    - Lower guide channel made out of anodized aluminum

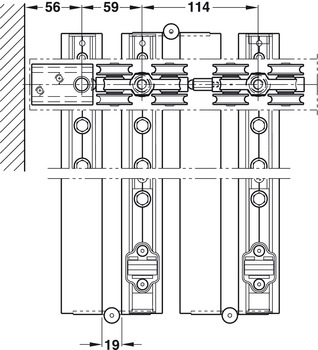

    - Dual running gear with ball bearings

    - Minimal space required in stacking area

    - Extremely quiet and smooth operation

    - Spring : Corner suspension

    - For door thickness min. : 1 3/8”

    - For door width (inches) : Min: 19 11/16 - 35 7/16"

    - Load bearing capacity : For Panel: 176 lbs.

    - Width (inch) : Panel: 19 11/16” - 35 7/16”

    - For door material : wood

    - Number of doors per system max. : >4

    - For door height : ?3,500 mm

    - For door thickness : 35?–?45 mm

    - For door weight : ?80 kg

    - For door width : 500?–?900 mm

    - System width 1-sided : 6.00 m

    - System width 2-sided : 12.00 m

    - Running system : Concealed in track

    - Controller installation options : Ceiling installation

    - Adjustment facility : Height adjustment: ±3 mm, Height adjustable ± 3 mm (±1/8”)

    - Version : clear threshold guide,Hinge with heavy duty bearings

    - Support flange connection : brackets

    - Material/finish : AluminiumPlastic

    - Supplied with:

    - 1 folding/access door catch, adjustable

    - 1 running gear with support carriage and screw M10

    - 3 support profiles, pre-drilled

    - 1 guide piece for guide track with zero clearance

    - 3 cover caps for support profile


    Additional Information …

    Bottom guide tracks must be used for Hawa Variofold systems. However, for systems with 2 doors on both sides and up to a system width of max. 3.6 m the bottom guide track is not required.

  • Data Sheet

  • Product Resources

  • Specifications

    For detailed PDF specifications, click:
    Hafele Sliding Door Catalog Page: selection_1.158-1.160.pdf

    Hafele 943.29.012 Fitting Set Variofold 80/H
    • Hardware > Building Materials > Door Hardware
    • Hardware,Hafele,500-3000
    • Brand: Hafele
    • Part#: 943.29.012
    • Condition: new

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Upper Track, Pre-drilled (choose one):
    • For Hawa Variofold and Centerfold 80/H, 6 m (19' 8 1/4")943.27.960Click to order


    Guide Channel, 24 x 24 mm (15/16" x 15/16") (choose one):


    Optional Accessories:

    • Bar Bolt Lock, Hawa Doorfix
    • Heavy Duty Ball Bearing Hinge, Stainless steel
    • Deadbolt Lock, For Hawa Variofold and Centerfold 80/H
    • Bar Bolt, with square/hexagonal nut
    • Thumbturn, with square pin
    • Slip-fit Rose, For Hawa Variofold and Centerfold 80/H
    • Dust-Proof Strike, With Spring-Loaded Cover
    • Rosette, For Dust-proof Strike 946.23.920
    • Stike Plate, With Oblong Hole
    • Socket Key, for Bolt Lock
