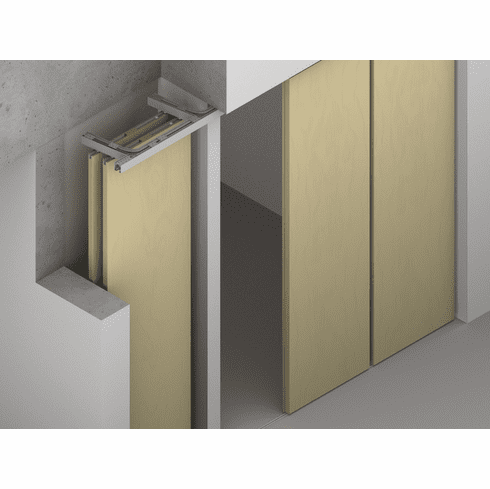

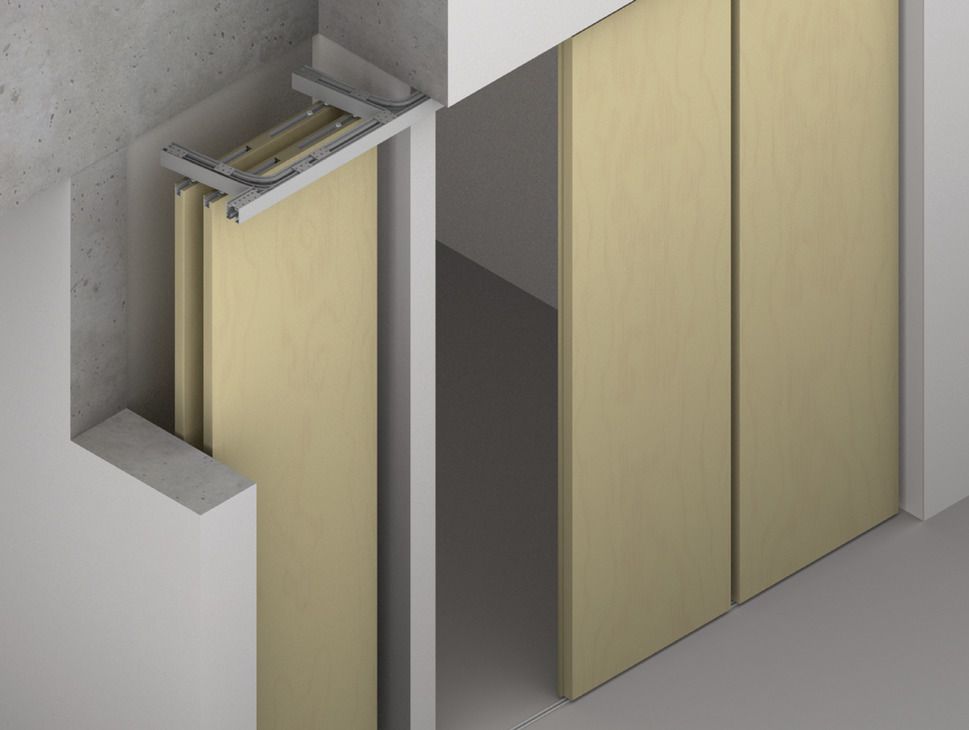

Hafele 943.30.002 Pivot Doors Type A, Hawa Aperto 60/H, Set for hinged door for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type A

Product Information

• Description

  Hafele 943.30.002 Pivot Doors Type A, Hawa Aperto 60/H, Set for hinged door
  for up to 8 stackable wooden sliding doors/1 hinged door, ceiling installation, for door weights up to 60 kg, for door heights up to 2,600 mm, door type A

  Additional items required to complete installation:
  Suspension Profile ,

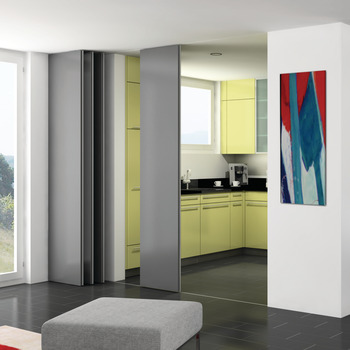

  Application : Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings
  locking of the system with one lock

  Door weight : ‰¤ (130 lbs) 60 kg

  Door height : ‰¤2600 mm

  Door thickness : 35-50 mm

  Adjustment : Vertically: (+/- 1/8") +/- 3 mm

  Features : Door stackable 90° or parallel with the running direction in open position
  partial sets for sliding doors, access doors and parking areas
  with guide track, without guide track with lighter loads (optional)
  system flush in closed position
  light and steady curving run

  Installation : Ceiling installation



  Supplied with :

  2 Support profiles

  2 cover caps

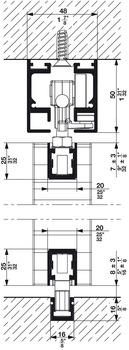

  1 top pivot bearing for parallel parking area

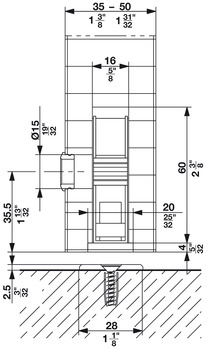

  1 bottom pivot bearing with pressure bearing sleeve

  1 adapter piece, inside

  1 adapter piece, outside

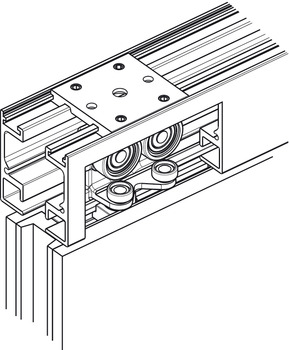

  1 fixing plate

  1 spanner



  Optional items:
  End cap, for Carrier Profile, 20 x 25 mm
  Pivot bearing, top
  Pivot bearing, top
  Pivot bearing, bottom
  Pivot bearing, bottom
  Adapter piece, for inner running track
  Adapter piece, for outer running track
  Fixing Plate, For 2 x single running track
  Wrench, 13 mm (1/2")


• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.170-1.175.pdf

  Hafele 943.30.002 HAWA Aperto 60/H pivot door set, type A, for paralle
