Hafele 943.55.001 Folding Wall Fitting, Slido Fold 100-T, Set Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Basic set for systems without bottom track

Product Information

• Description

  Hafele 943.55.001 Folding Wall Fitting, Hafele Slido Fold 100-T, Set
  Folding and access door fitting, corner and center suspension, for door weight up to 100 kg, Basic set for systems without bottom track

  Additional items required to complete installation:
  Running tracks, pre-drilled
  Guide tracks, pre-drilled


  Application : For systems without bottom track

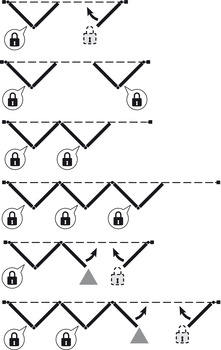

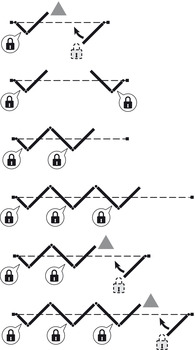

  (systems with corner suspension version with max. 2 doors on both sides)

  Door weight : ‰¤100 kg

  Door height : ‰¤3,500 mm

  Door width : 500-1,000 mm

  Door thickness : 35-60 mm

  Internal opening width : 1-sided system 6 m
  2-sided system 12 m

  Adjustment : Height ±5 mm

  Material : Running and guide tracks: Aluminum
  Running gear: Steel
  Roller: Plastic

  Finish : Running and guide tracks: Silver colored anodized



  Supplied with :

  1 running gear, 4 rollers, with support flange

  2 pivot bearings (1 each top/bottom)

  1 guide

  1 centering set for door



  Optional items:
  Angled supporting fascia profile
  Butt hinge, rounded, load bearing capacity 120 kg
  Floor spring
  Espagnolette locks
  DS 9608 rebate seal
  Hexagon Socket Key
