Hafele 950.05.282 Drop Seal Schallex Slide M-12 WS, aluminum silver anodized, 833 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 950.05.282

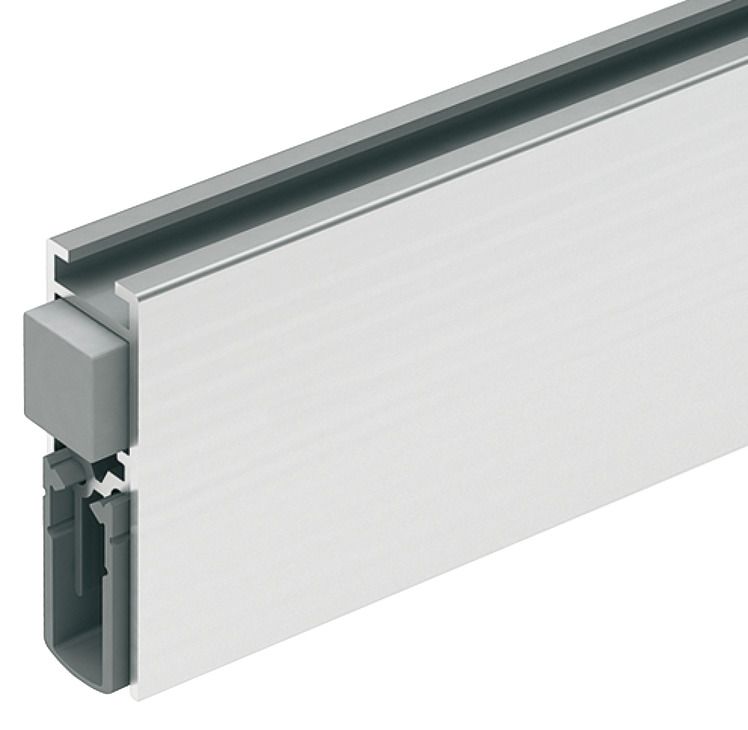

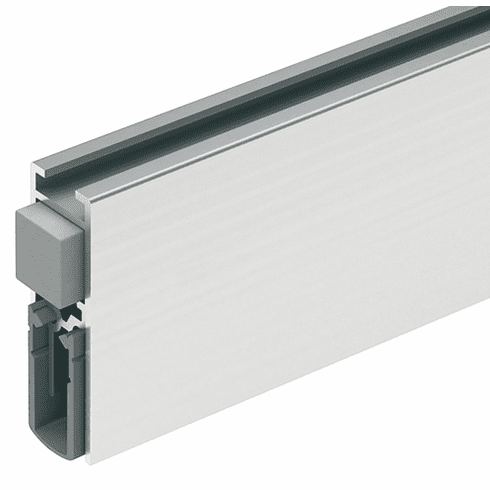

  Product Title: Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer, For sliding doors, length: 833 mm

  Category: Retractable door seal, Schall-Ex® Slide & Lock M-12 WS, Athmer, For sliding doors

  Item Details …

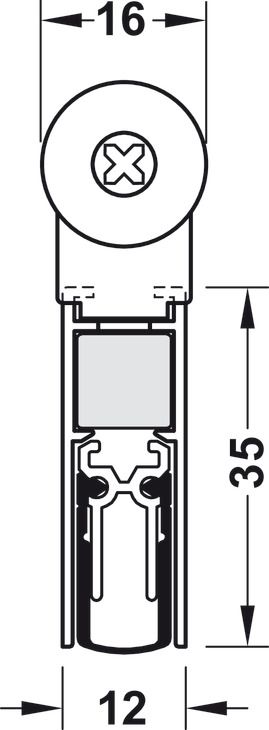

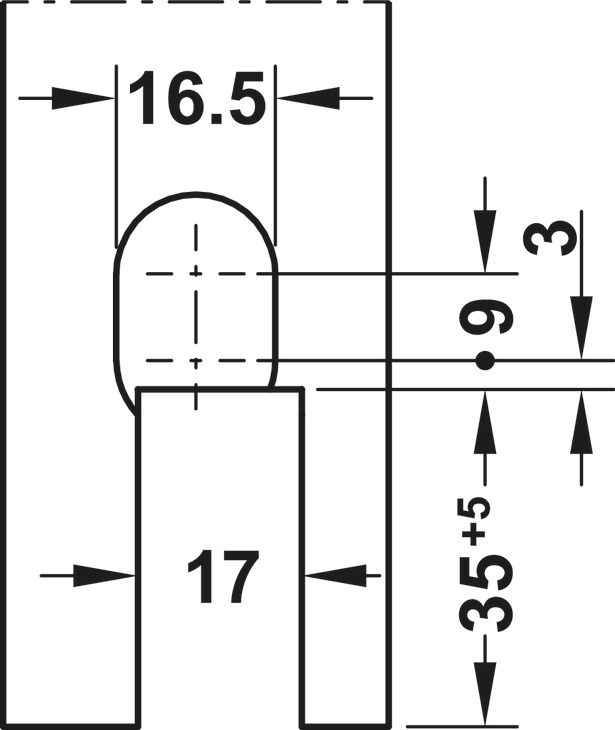

  - Floor guide installation dims: 17 x 35 mm

  - Material : Carrier: AluminiumSealing profile: Silicone, self-extinguishing

  - Release : single-side

  - Mounting : For DIN left and DIN right hand use

  - Application : For sliding doors

  - Model : Schall-Ex Slide & Lock M-12 WS

  - Color/finish : Carrier: Silver colouredSealing profile: Grey

  - Product type : Retractable door seal

  - Model series : Schall-Ex® Slide & Lock M-12 WS

  - Mounting : For DIN left and DIN right hand use

  - Color sealing profile : Gray

  - Material sealing profile : Silicone, self-extinguishing

  - Color carrier : Silver colored

  - Material carrier : Aluminum

  - Color : Carrier: Silver colouredSealing profile: Grey

  - Sealing height max. : 11.00 mm

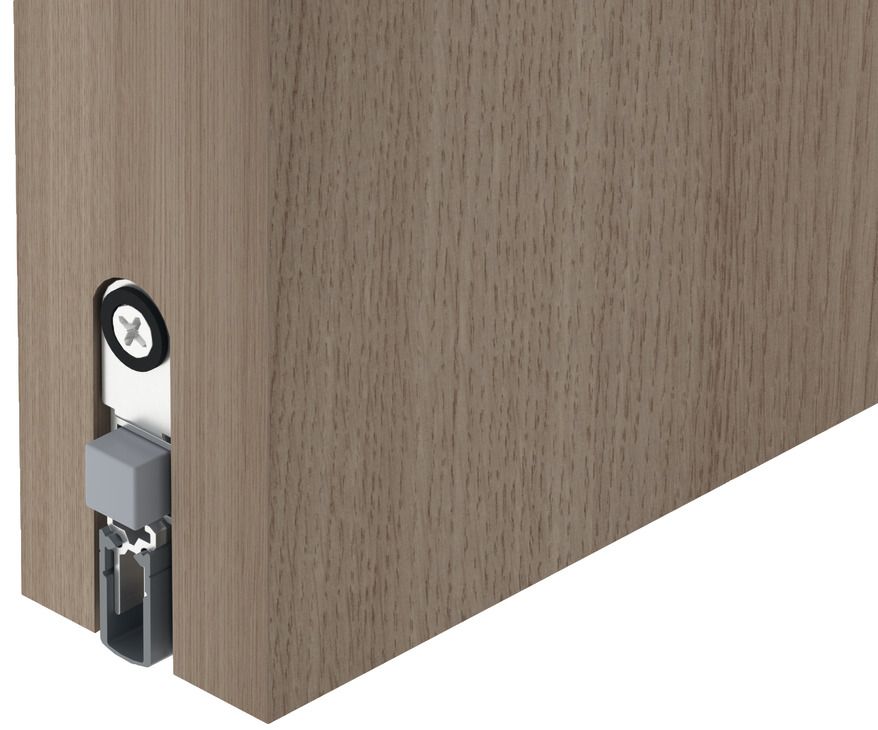

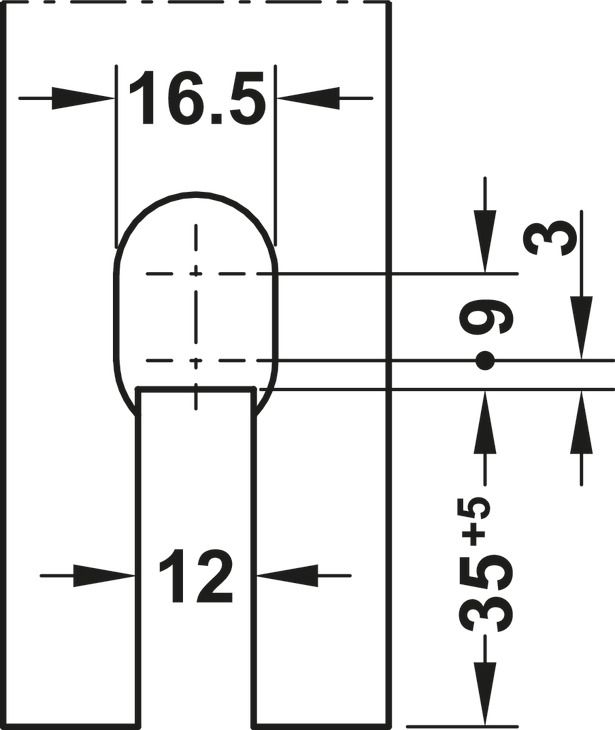

  - Installation : For full mortice fitting, with mounting brackets

  - Order reference

  - Individual lengths up to 1958 mm and other sliding door seals for different door thicknesses available on request.

  - Please order floor guide and additional adhesive magnets for top door area separately if required.

  - Supplied with:

  - 1 sliding door seal

  - 2 mounting brackets with screws

  - 1 pressure plate, 1.5 mm thick

  - 1 adhesive magnet

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.400



• Required Products & Optional Accessories

  Optional Accessories:



  • Floor guide, Schall-Ex Slide & Lock M-12 WS
