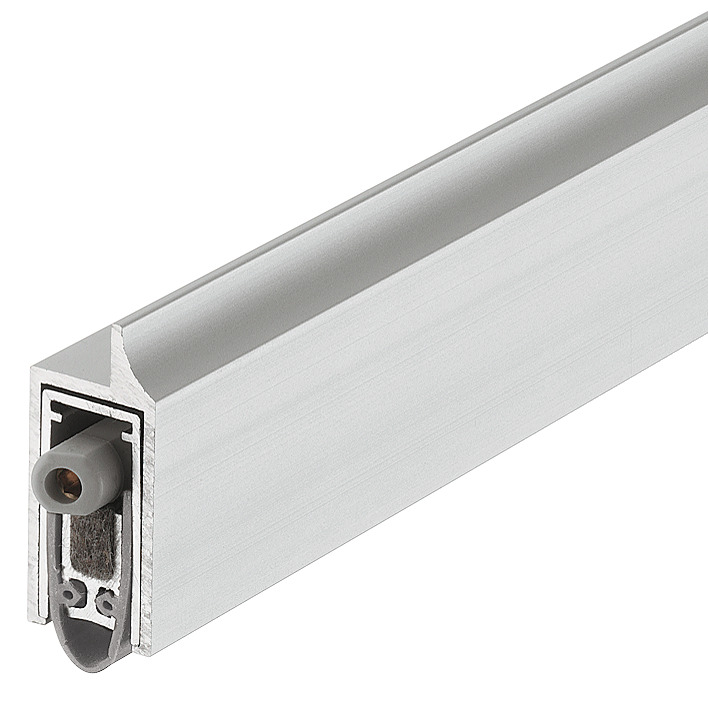

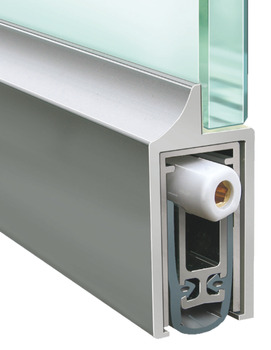

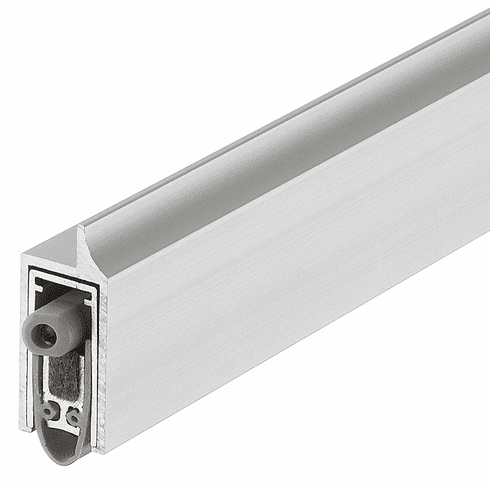

Hafele 950.10.123 Retractable door seal, KG-S, Planet for glass doors for projects, length: 959 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 950.10.123

  Product Title: Retractable door seal, KG-S, Planet, for glass doors for projects, length: 959 mm

  Category: Retractable door seal, KG-S, Planet, for glass doors for projects, length: 959 mm

  Item Details …

  - Length : 959.00 mm

  - Area of application : For glass doors

  - Material : Carrier: AluminiumSealing profile: Silicone

  - Release : on one side (hinge side)

  - Mounting : For DIN left and DIN right hand use

  - Model : KG-S

  - Color/finish : Carrier: Silver colouredSealing profile: Grey, Carrier: Anodized EV1

  - Product type : Retractable door seal

  - Model series : KG-S

  - Mounting : For DIN left and DIN right hand use

  - Color sealing profile : Gray

  - Material sealing profile : Silicone

  - Color carrier : Silver colored

  - Refinement carrier : anodized E6/EV1

  - Material carrier : Aluminum

  - Color : Carrier: Silver colouredSealing profile: Grey

  - Refinement : Carrier: Anodized EV1

  - Sealing height max. : 18.00 mm

  - Installation : For glue fixing with UV adhesives provided on sitecan be shortened at the lock endthe door height with KG-D8, D10 and U must be 28 mm shorter than the door height with KG-Sadjustment of sealing height on release pin with SW 3 Allen key

  - Supplied with:

  - 1 retractable door seal

  - 1 release plates with screws

  - 1 set of installation instructions
