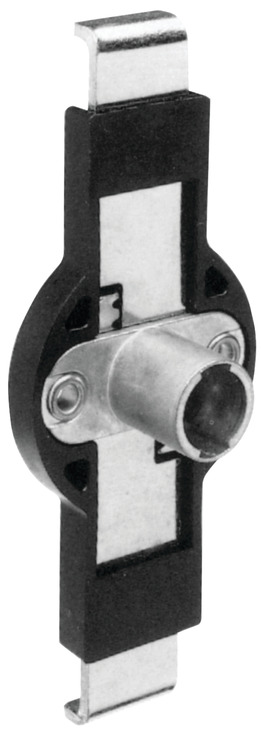

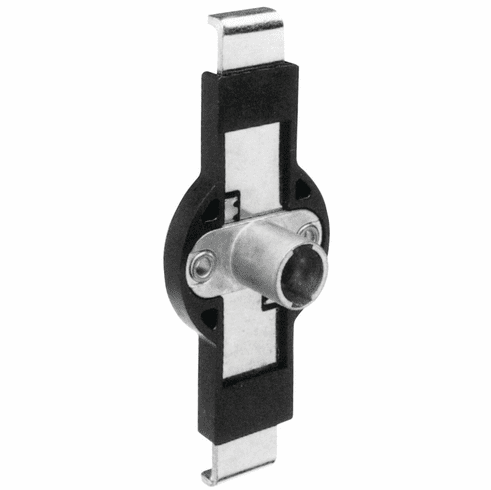

Hafele 234.92.300 Central Locking System, 2 Drawer Timberline- modular removable core locking system
Product Information
Description
Manufacturer: Hafele
Item: 234.92.300
Product Title: Central Locking System, 2 Drawer, Timberline modular removable core locking system
Category: Central Locking System, 2 Drawer, Timberline modular removable core locking system
Item Details …
- The most economical arrangement for locking two drawers simultaneously

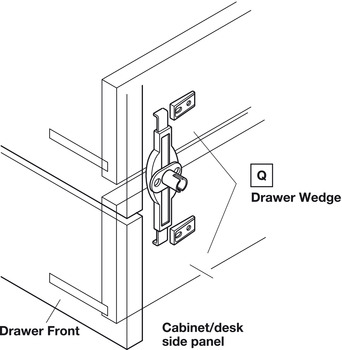

- Only single hole needs to be drilled in the drawer or side panel, then the lock installs vertically
- A drawer locking wedge is attached to each side panel
- Install the cylinder and the lock is ready for use

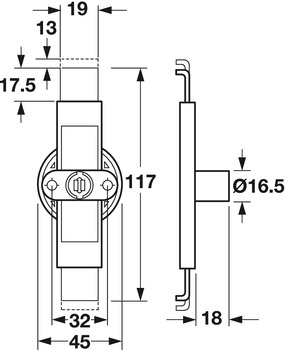

- Small 3/4" diameter for improved appearance
- Model : CB-270
- Area of application : For two drawers with lockbar
- Version : With one lock mounted in a minimum 25 mm frontexposed rail.
- Material : Lock case: NylonCylinder housing: Die-cast zincBars: Steel
- Color/finish : Lock case: Black, Cylinder housing: UnfinishedBars: Nickel
- Bolt throw : 13.00 mm
- Bolt throw : 1/2"Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_10.12-10.14.pdfHafele 234.92.300, 234-92-300, 23492300, 234.92 Specifications/Hafele Catalog - Page# FC10.13:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Lockers & Locking Systems Catalog
Return to: All Hafele CatalogsDownload
Adobe PDF Reader
Required Products & Optional Accessories
Optional Accessories:- Zip-R Screw, Pan Head, #2 Phillips Drive
- Zip-R Screw, Pan Head, #2 Square Drive
- Spax Screw, Pan Head Screw with Uni-drive, Zinc-Plated
- Snap-In Lock Core, Keyed Different
- Cylinder Rosette, Diameter:24 mm
- Drawer Locking Wedge, for Central Locking System
- Strike Plate, Belt Loop Style
- Strike Plate, Offset, Screw-Mounted
- Strike Plate, for Behind Door
- Snap-In Lock Core, Keyed Alike
