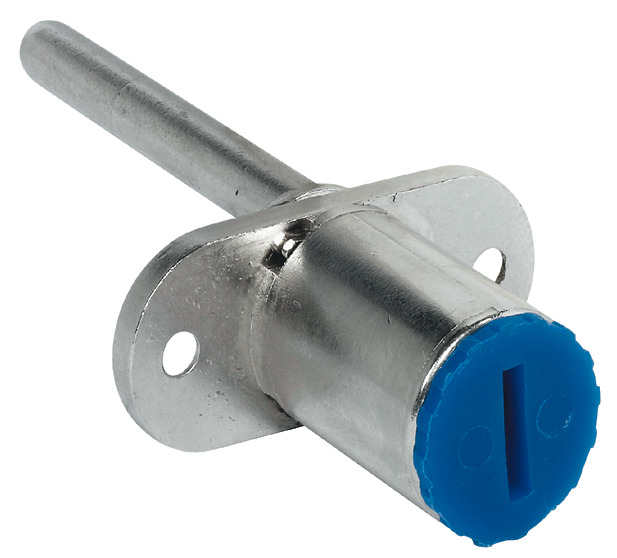

Hafele 234.98.600 Central Locking Rotary Cylinder Lock, with Two Wings, Symo 3000 For combination with Symo cylinder removable core, Lift: 12 mm (15/32")

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.98.600

  Product Title: Central Locking Rotary Cylinder Lock, with Two Wings, Symo 3000, For combination with Symo cylinder removable core, Lift: 12 mm (15/32")

  Category: Central Locking Rotary Cylinder Lock, with Two Wings, Symo 3000, For combination with Symo cylinder removable core, Lift: 12 mm (15/32")

  Item Details …

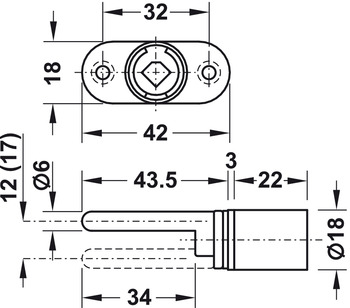

  - Closure travel : 180°

  - Travel : 12.00 mm

  - Color/finish : Nickel plated

  - Area of application : For cylinder cores that are inserted from the front on site

  - Version : With two wings, lifting pin

  - Material : Zinc alloy

  - Cylinder shape : prepared for round cylinder

  - Cylinder housing length : 22.00 mm

  - Cylinder Diameter: (mm) : 18.00 mm

  - Installation : For installation in fixed front panelfor screw fixing

  - with key : No

  - Order reference

  - Only use cylinder cores with restricted rotation and direction (DIN right) (Premium 20) when using pin tumbler cylinder removable core.

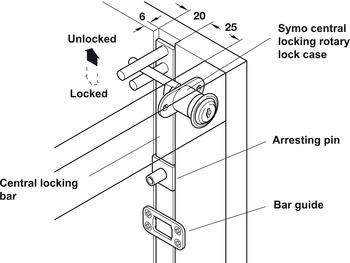

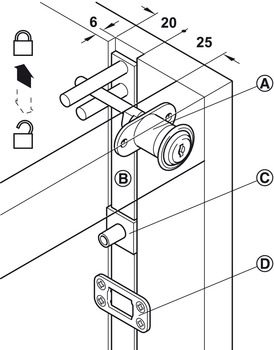

  - Central locking bar, arresting pin and bar guide not supplied. Please order separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Cylinder Rosette, 3/4"
  • Plate-Cylinder Removable Core, Keyed Alike, Symo 3000
  • Bar Guide, Open Type, Steel
