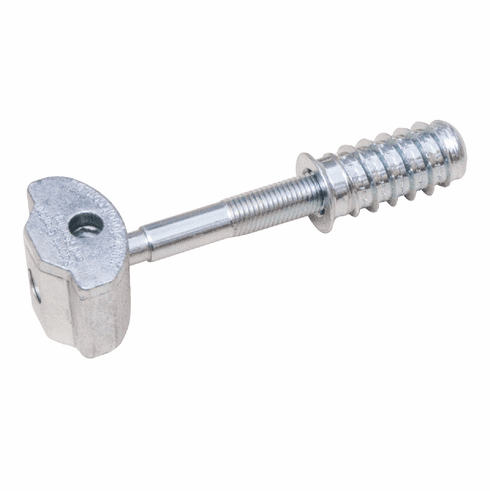

Hafele 262.96.873 Zipbolt Joint Connector, 13.500 ST Maxi-UT Steel, zinc

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.873

  Product Title: Zipbolt Joint Connector, 13.500 ST Maxi-UT, Steel, zinc

  Category: Zipbolt Joint Connector, 13.500 ST Maxi-UT, Steel, zinc

  Item Details …

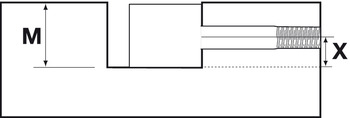

  - (X) Shaft center = 10 mm (25/64")

  - (M) = Minimum bore depth: 20 mm (51/64")

  - Requires 5 mm hex bit

  - Additional Zipbolts are available by request

  - Area of application : Zipbolt connectors are ideal for use in: countertops, staircase assembly, furniture construction, millwork joinery and more

  - Color/finish : Housing, bolt and pressure plate: Zinc plated


  Additional Information …

  A variation of bore size of 12.5 - 13 mm for insert screw may be required for hardwoods or when drilling into end grain.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.78



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.52-11.53.pdf

  Hafele 262.96.873, 262-96-873, 26296873, 262.96


  Specifications/Hafele Catalog - Page# FC11.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Hex Socket Bit
  • Hex Key, Steel
  • Hex Bit, for use with Zipbolt-UT
