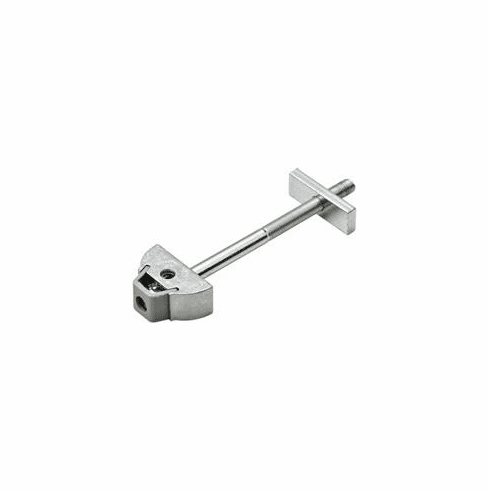

Hafele 262.96.945 Zipbolt Work Surface Connector, Dogbone-UT 11.9

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.945

  Product Title: Zipbolt Work Surface Connector, Dogbone-UT, 10.900

  Category: Zipbolt Work Surface Connector, Dogbone-UT, 10.900

  Item Details …

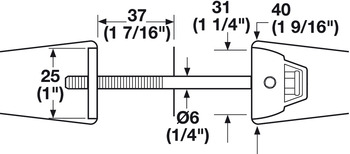

  - (X) Shaft center = 5.5 mm (13/64")

  - (M) = Minimum bore depth: 12.5 mm (31/64")

  - Improved to now accept a standard 4 mm hex bit

  - Eliminate the need for surface mounted worktop joining strips

  - Material : Steel; Clamps: Zinc/Plastic


  Additional Information …

  Requires 4 mm hex driver

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.80



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.52-11.53.pdf

  Hafele 262.96.945, 262-96-945, 26296945, 262.96


  Specifications/Hafele Catalog - Page# FC11.56: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
