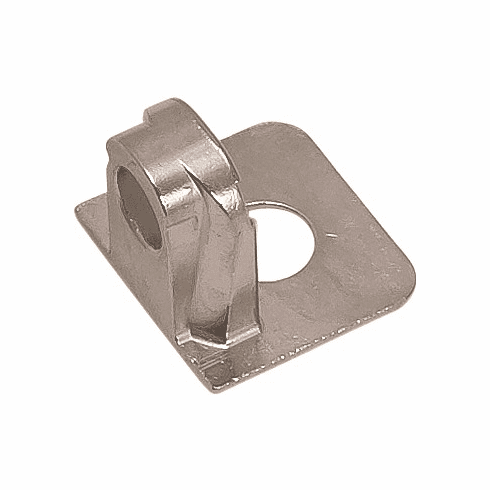

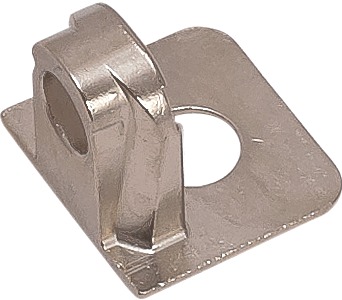

Hafele 263.60.556 Tab V Support Element, for 5 mm Varianta Screws Zinc, nickel plated, For wood thickness: From 19 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.60.556

  Product Title: Tab V Support Element, for 5 mm Varianta Screws, Zinc, nickel plated, For wood thickness: From 19 mm

  Category: Tab V Support Element, for 5 mm Varianta Screws, Zinc, nickel plated, For wood thickness: From 19 mm

  Item Details …

  - Excellent angular rigidity and pull-out resistance

  - Pulls shelf onto side panel

  - Locks shelf to side panel and prevents tipping

  - Cup inserts are flush, allowing shelves to be stacked

  - Locks and secures shelves into place

  - For wood thickness : ?19 mm

  - Color/finish : Nickel plated, Nickel-plated

  - Material : Zinc alloy

  - Version : For screw fixing

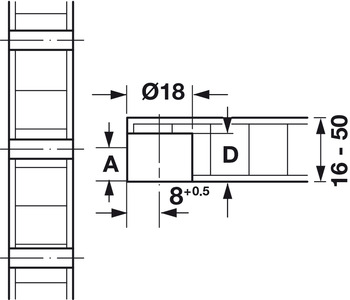

  - Drill hole Ø : 18.00 mm


  Additional Information …

  Panel insert needed for both zinc supports

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.49



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.39-11.39.pdf

  Hafele 263.60.556, 263-60-556, 26360556, 263.60


  Specifications/Hafele Catalog - Page# FC11.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Tab V Boss Insert, Plastic (choose one):


  • With tightening element, For wood thickness: From 19 mm

    263.64.554

    Click to order
