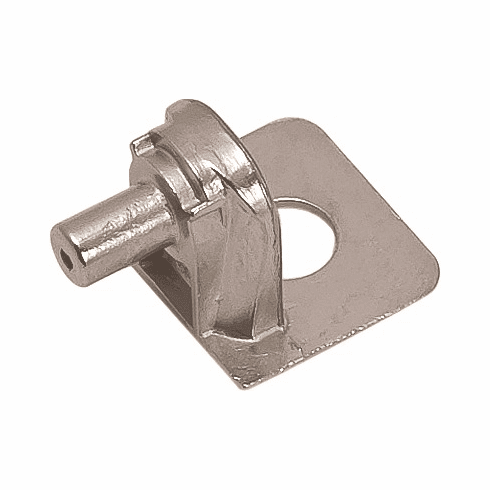

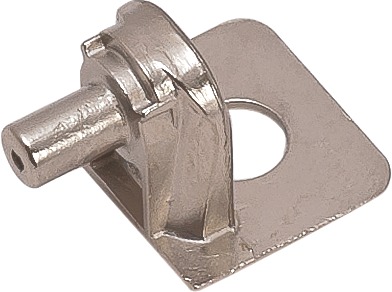

Hafele 263.61.553 Tab V Support Element, with 5 mm Pin Zinc, nickel-plated, Press-fit
, 26361553, 263-61-553 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 263.61.553

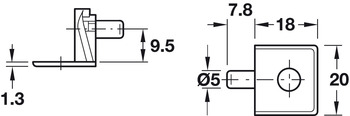

Product Title: Tab V Support Element, with 5 mm Pin, Zinc, nickel-plated, Press-fit
Category: Tab V Support Element, with 5 mm Pin, Zinc, nickel-plated, Press-fit
Item Details …
- Excellent angular rigidity and pull-out resistance
- Pulls shelf onto side panel
- Locks shelf to side panel and prevents tipping
- Cup inserts are flush, allowing shelves to be stacked
- Locks and secures shelves into place
- Color/finish : Nickel-plated, Nickel plated
- Material : Zinc alloy
- Version : for plug fitting

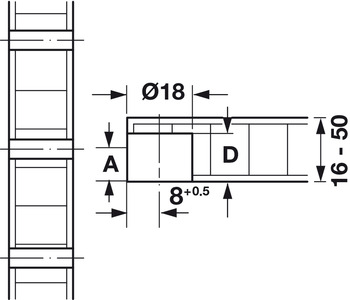

- Drill hole Ø : 18.00 mmData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.39-11.39.pdfHafele 263.61.553, 263-61-553, 26361553, 263.61
Specifications/Hafele Catalog - Page# FC11.42:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele CatalogsDownload
Adobe PDF Reader
Required Products & Optional Accessories
Optional Accessories:- Tab V Boss Insert, Plastic
