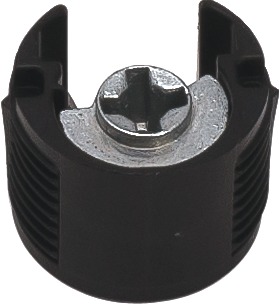

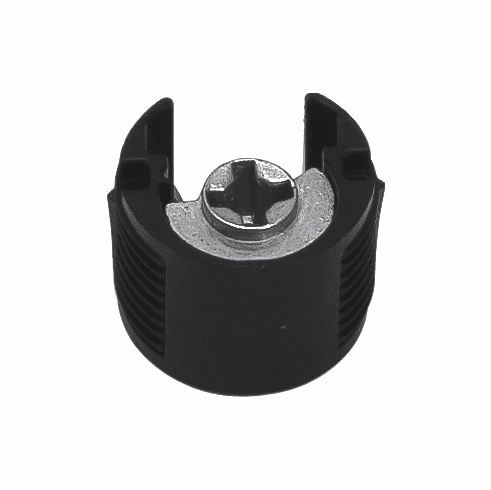

Hafele 263.64.554 Tab V Boss Insert, Plastic With tightening element, For wood thickness: From 19 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.64.554

  Product Title: Tab V Boss Insert, Plastic, With tightening element, For wood thickness: From 19 mm

  Category: Tab V Boss Insert, Plastic, With tightening element, For wood thickness: From 19 mm

  Item Details …

  - For wood thickness : ?19 mm

  - Drilling depth : 15 mm

  - Color/finish : Black

  - Area of application : For additionally securing the shelf to prevent toppling

  - Material : Tensioning element: Zinc alloy, boss insert: Plastic

  - Version : With locking mechanism

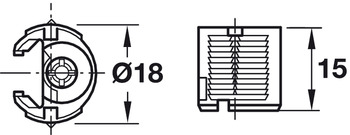

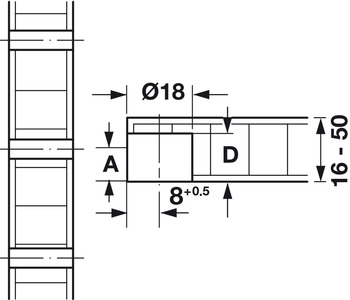

  - Drill hole Ø : 18.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.49



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.39-11.39.pdf

  Hafele 263.64.554, 263-64-554, 26364554, 263.64


  Specifications/Hafele Catalog - Page# FC11.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Tab V Support Element, for 5 mm Varianta Screws
  • Tab V Support Element, with 5 mm Pin
