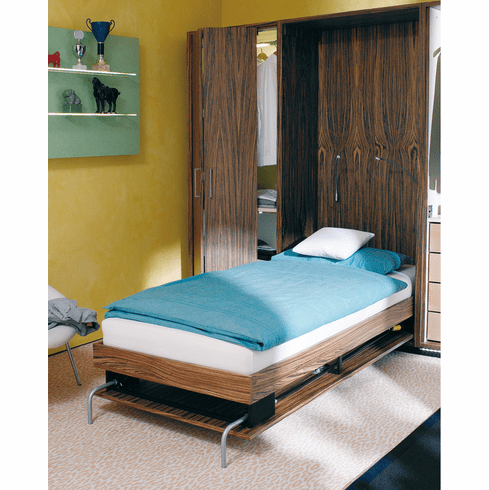

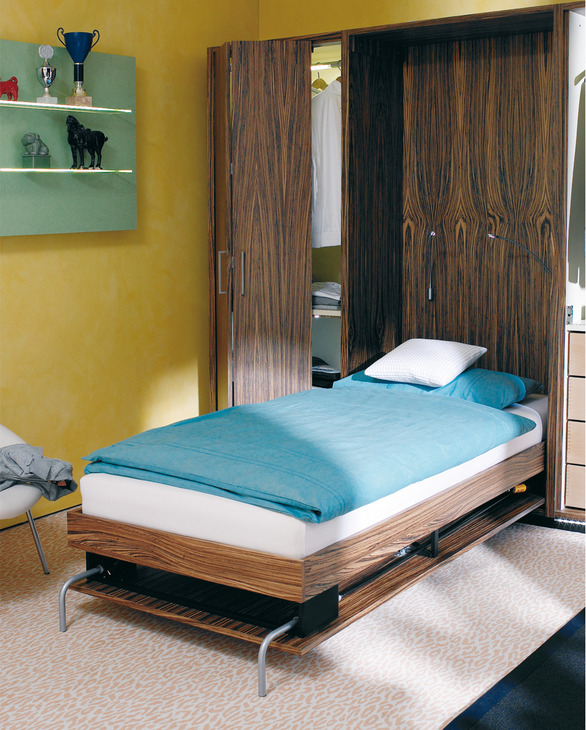

Hafele 271.95.203 Foldaway Bed Fitting Set, for Lengthwise Mounting

Product Information

• Description

  Manufacturer: Hafele
  Item: 271.95.203

  Product Title: Foldaway Bed Fitting Set, for Lengthwise Mounting, For construction of foldaway beds according to customer’s own requirements, steel, powder coated, black, RAL 9011

  Category: Foldaway Bed Fitting Set, for Lengthwise Mounting, For construction of foldaway beds according to customer’s own requirements, steel, powder coated, black, RAL 9011

  Item Details …

  - It is essential for foldaway beds to be secured against tipping, according to EN 1129, (check the floor suitability). Two safety stops are enclosed with every fitting set.

  - Bed weight = total weight of the bed box, slatted frame, mattress and bedding

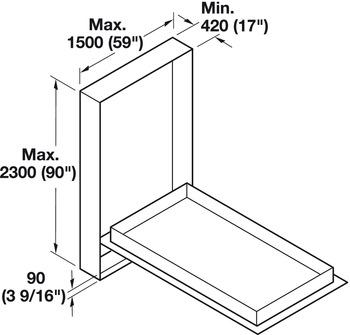

  - Internal cabinet height = Mattress width + bed frame thickness (x2) + 4 15/16” (125mm)

  - Internal cabinet width = Mattress length + bed frame thickness (x2) + 2 1/8” (54mm).

  - A gap of 3/16” (4mm) is required on all sides between the cabinet and front panel.

  - Color/finish : Graphite black, RAL 9011, Powder coated

  - Bed weight : 100 kg

  - Area of application : For construction of foldaway beds according to customer’s own requirements

  - Material : Aluminum

  - Load bearing capacity : 100.00 kg

  - Installation : The dimensions listed are internal cabinet dimensions. The cabinet and bed box constructions require a wood thickness of 13/16" (20 mm)

  - Order reference

  - Gas pistons, angular feet and retaining straps need to be ordered separately.

  - Supplied with:

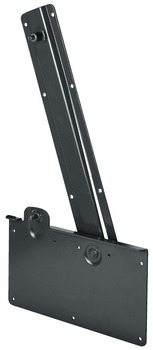

  - 1 Pair of foldaway bed fittings with pivot bearings and positioning bolts for gas pistons

  - 2 Safety Stops

  - Installation instructions


  Additional Information …

  It is essential for foldaway beds to be secured against tipping, according to EN 1129, (check the floor for suitability). Two safety stops are enclosed with every fitting set.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  271.95.203 Bed-Lift Mounting Instructions

  LGA quality certificate for foldaway cabinet bed fitting for self-assembly

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.4



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.60-4.61.pdf

  Hafele 271.95.203, 271-95-203, 27195203, 271.95


  Specifications/Hafele Catalog - Page# FC4.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Foldaway Bed Gas Piston, for Lengthwise Mounting
  • Foldaway Bed Mattress Retaining Straps, for holding bedding when closing bed
  • Foldaway Bed Angular Foot, For Bettlift foldaway bed fitting for end or side mounting
