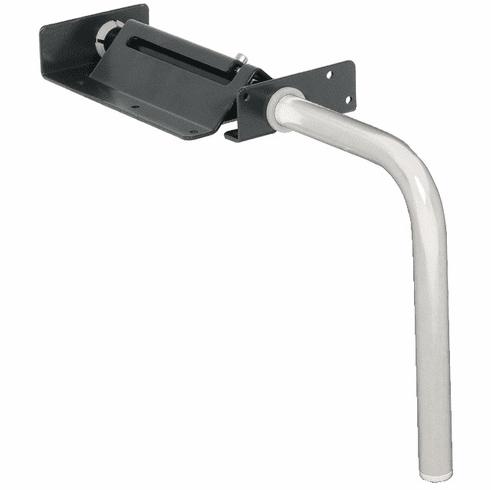

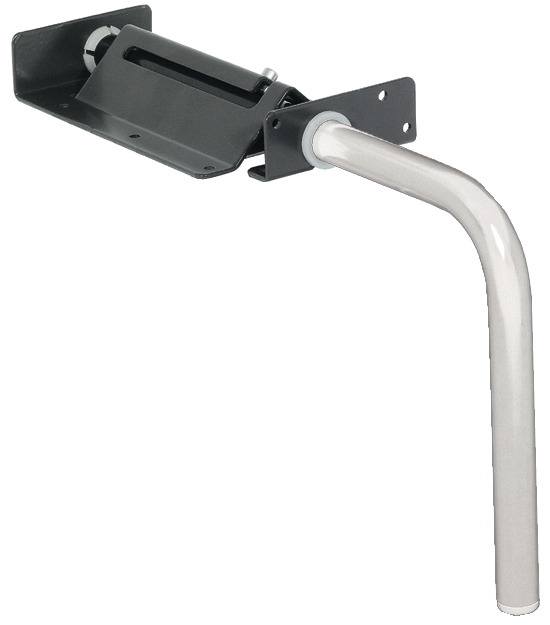

Hafele 271.95.361 Foldaway Bed Angular Foot Supports bed when in open position

Product Information

• Description

  Manufacturer: Hafele
  Item: 271.95.361

  Product Title: Foldaway Bed Angular Foot, For Bettlift foldaway bed fitting for end or side mounting, Supports bed when in open position, with mounting plate

  Category: Foldaway Bed Angular Foot, For Bettlift foldaway bed fitting for end or side mounting, Supports bed when in open position, with mounting plate

  Item Details �

  - To support the opening bed

  - For use with Foldaway Fitting Bed Sets 271.95.204 and 271.95.203

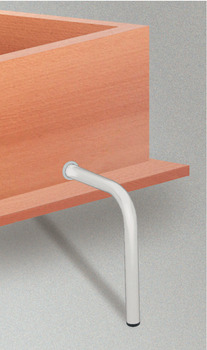

  - When opening the bed, the angular feet must be extracted, turned by 90º and retracted to the stop

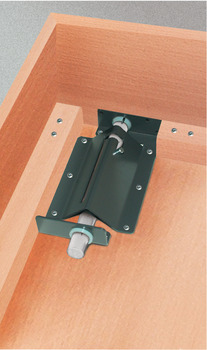

  - The angular feet with mounting plate are screw-mounted to the foot side of the bed frame and and to the inside of the front panel.

  - A minimum of 1 9/16” x 1 9/16” (40mm x 40mm) square beam is needed on four sides as a slatted frame support.

  - Color/finish : Mounting plate: Black, RAL 9011Angular bracket: White aluminium, RAL 9006, Aluminum (Powder-Coated)

  - Area of application : for supporting the open bed

  - Material : Steel

  - Version : Includes mounting plate

  - Installation : When opening the bed, the angular feet must beextracted, turned by 90º and retracted to the stop

  - Installation reference : Screw the mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.Screw mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.

  - Supplied with:

  - 2 feet

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.5-4.6.pdf

  Hafele 271.95.361, 271-95-361, 27195361, 271.95


  Specifications/Hafele Catalog - Page# FC4.5: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Foldaway Bed Fitting Set, for Lengthwise Mounting
