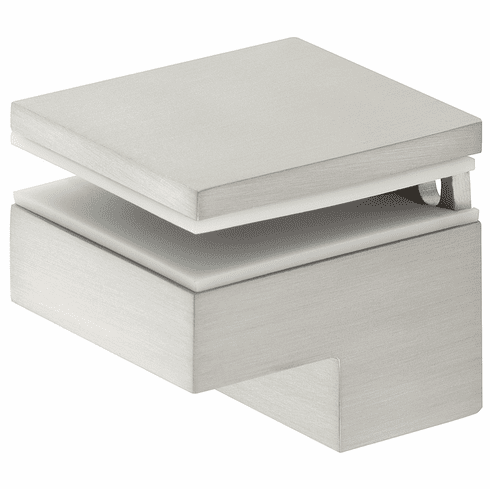

Hafele 284.05.050 Glass Shelf Support, Zinc, 6 - 25mm Glass Thickness Stainless steel colored

Product Information

• Description

  Manufacturer: Hafele
  Item: 284.05.050

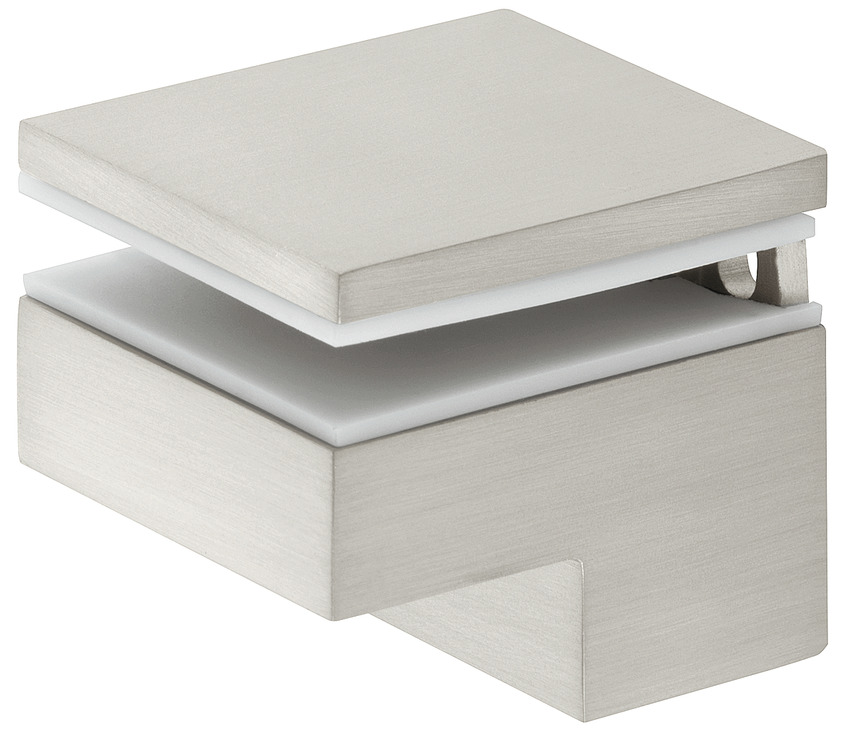

  Product Title: Glass Shelf Support, Zinc, 6 - 25mm Glass Thickness, Stainless steel colored

  Category: Glass Shelf Support, Zinc, 6 - 25mm Glass Thickness,

  Item Details …

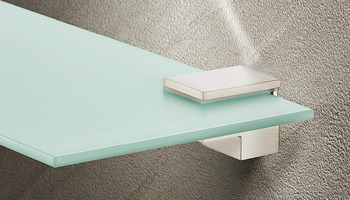

  - Area of application : for wooden and glass shelves

  - For shelf thickness : 6?–?25 mm

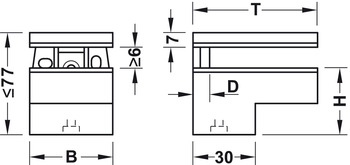

  - Dim. (W x D x H) : 40 x 60 x 32 mm

  - Wall distance : 9.50 mm

  - Material : Zinc alloy

  - Load bearing capacity per item : 12.00 kg

  - Load bearing capacity : 26 lbs; tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 150 x 25 mm, i.e

  - Note on load bearing capacity : Per piece; tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 1,000 x 150 x 25 mm, i.e. 24 kg load bearing capacity with surface load and 2 supportsThe specified load bearing capacity applies only with proper and reliable attachment to the wall.

  - Installation : #8 wood screw

  - Adherence to standards : In compliance with DIN EN 16337:2013, i. e. 24 kg load bearing capacity with 2 shelf supports, tested with 1.7 kg plate for impact test and shelf size 1000 x 160 x 25 mm

  - Supplied with:

  - Fixing material supplied.


  Additional Information …

  Max. distance between two shelf supports: 700 mm.The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall, use other fixing material if necessary.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
