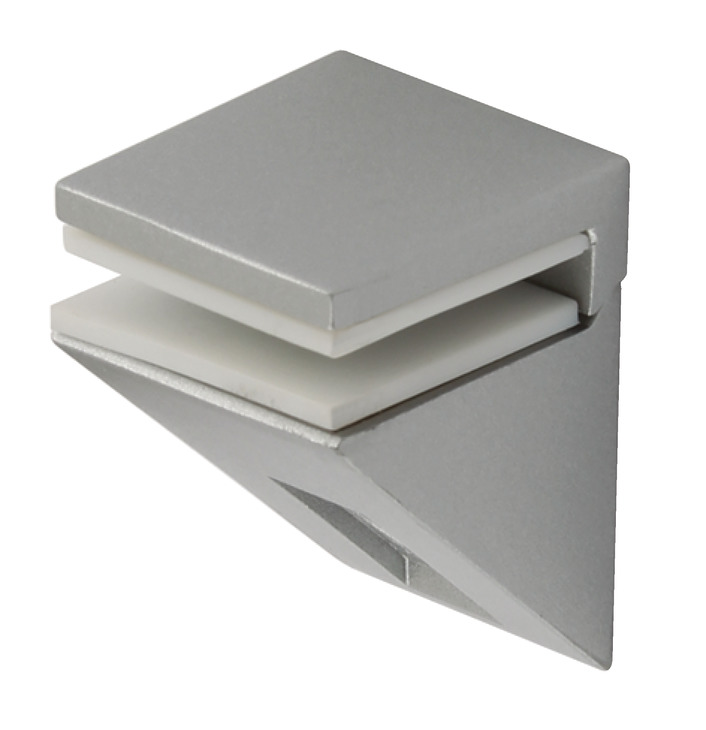

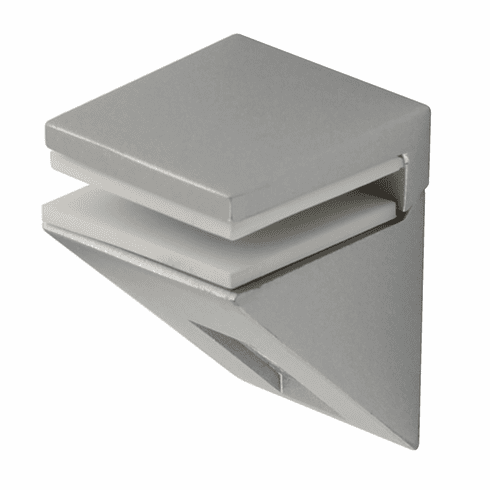

Hafele 284.09.930 Kalabrone Mini Glass Support, zinc, RAL 9006, 5-10mm glass

Product Information

• Description

  Manufacturer: Hafele
  Item: 284.09.930

  Product Title: Shelf support with clamp, Wall Fixing, for Glass Shelves, Kalabrone Mini, For glass thickness of 5-10 mm, Silver, RAL 9006

  Category: Shelf support with clamp, Wall Fixing, for Glass Shelves, Kalabrone Mini, For glass thickness of 5-10 mm, Silver, RAL 9006

  Item Details …

  - Area of application : for glass shelves

  - For shelf thickness : 5?–?10 mm

  - Version : with rubber pad at bottom and top

  - Material : Zinc alloy

  - Load bearing capacity per item : 6.00 kg

  - Load bearing capacity : For 150 mm deep shelf: 13 lbs

  - Note on load bearing capacity : recommended load-bearing capacity

  - For shelf depth : ?150 mm

  - Adjustment facility : Height adjustment via elongated hole: ±2 mm

  - Installation : Screw fixing

  - Order reference

  - Order Hospa countersunk 5.0 mm screws separately

  - Supplied with:

  - 1 shelf support with accessories


  Additional Information …

  The load bearing capacity of the shelf supports depends on the shelf material, the shelf depth and the type of wall to which they are being attached.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.137



• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard Screw, Hospa, stainless steel, countersunk head, PZ, fully threaded
