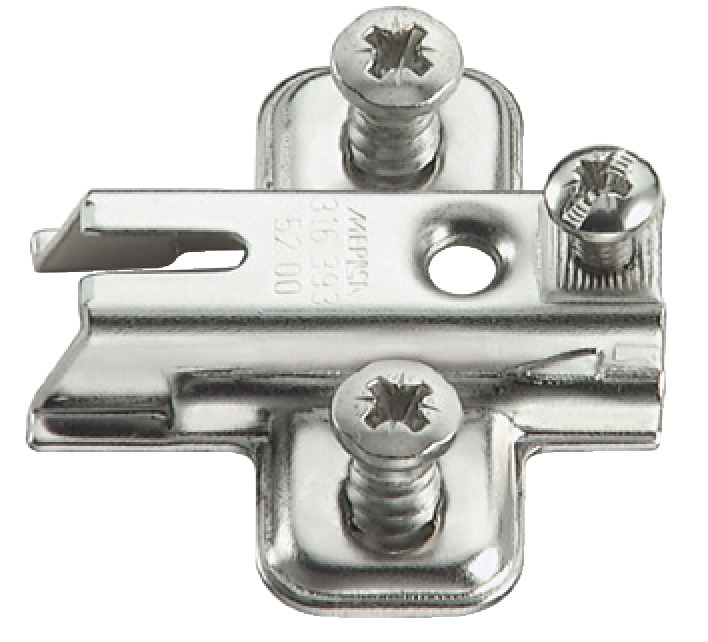

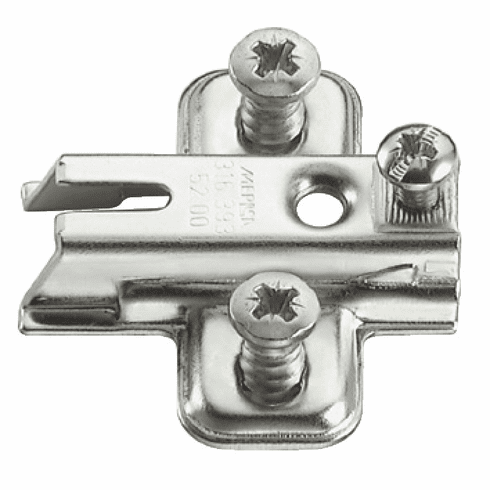

Hafele 323.84.704 Mounting Plate, Super Compact Cruciform, One Part Plate, for Grass Slide On System Hinges Height 0 mm, Pre-mounted Euro screw fixing

Product Information

• Description

  Manufacturer: Hafele
  Item: 323.84.704

  Product Title: Mounting Plate, Super Compact Cruciform, One Part Plate, for Grass Slide On System Hinges, Height 0 mm, Pre-mounted Euro screw fixing

  Category: Mounting Plate, Super Compact Cruciform, One Part Plate, for Grass Slide On System Hinges, Height 0 mm, Pre-mounted Euro screw fixing

  Item Details …

  - Area of application : For slide on systems

  - Material : Pressed steel

  - Color/finish : nickel plated

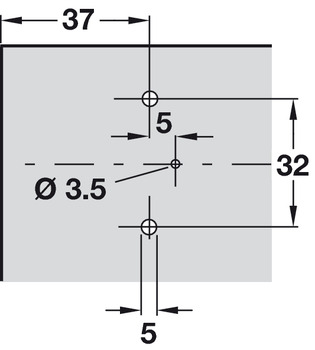

  - For drill hole Ø : 3.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

• Data Sheet

  Detailed Data Sheet
